HySecurity SlideDriver 40 Programming & Operation Manual

www.hysecurity.com Control Panel Overview D0559 Rev. A 33

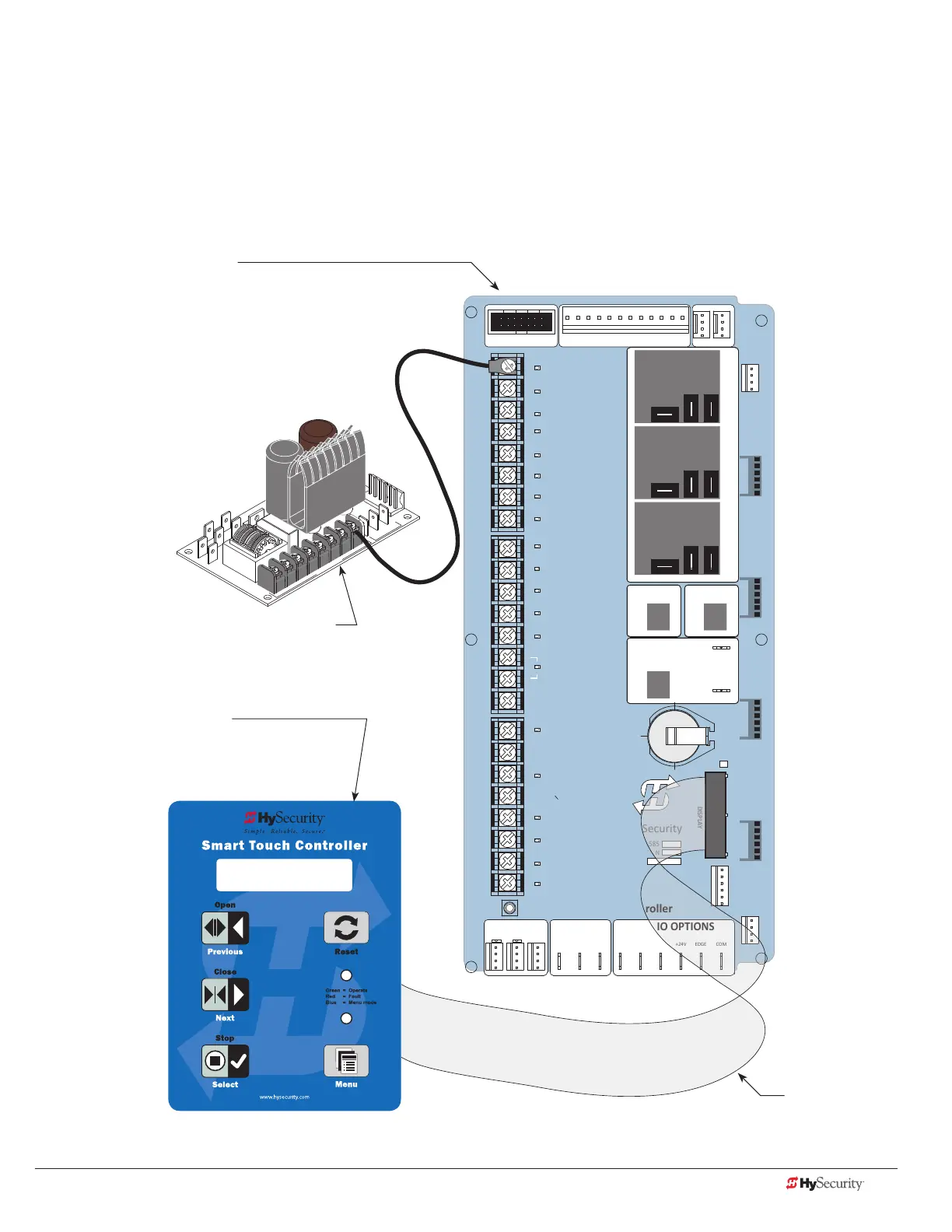

stC Board, power module and dIsplaY
The Smart Touch Controller provides connections for a multitude of peripherals and accessory devices. The
Power Module offers 8 common bus terminals, 4 terminals (24VAC) and 3 terminals (24VDC) with a 3A maximum
draw. The touch-sensitive keypad and 32-character display connects to the STC with a waterproof ribbon cable.
For more information about STC Inputs and connections, refer to STC Inputs & Wiring on page 49. For more
information about the display programming, operator modes and keypad navigation, refer to Display & Menu
Options on page 35.
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
EDGE SENSOR
PHOTO EYE POWER
24 VOLTS COMMON
PHOTO EYE POWER
DO NOT USE
PHOTO EYE
OPEN DIRECTION
DO NOT USE
PHOTO EYE
CLOSE DIRECTION
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE EXIT
INSIDE OBSTR
OUTSIDE OBSTR
SHADOW RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN EDGE+24V +24V
STAT U S
LED
24V
A
C A
cce
s
s
or
y powe
r
+
24
V
D
C
Power Connector
Power Module
C
O
MM
ON
Smart Touch Controller
Ribbon cable
STC Display & Keypad:
Provides push button programming and
displays menu codes, faults, alerts & errors.
Refer to Display & Menu Options on page 35.
Smart Touch Controller:
Provides inputs for peripherals & accessories, 2 electro-
mechnical user relays (250VAC, 10A), one solid state user relay
(30VDC, 3A). For more information, refer to STC Inputs & Wiring
on page 49.
Common (COM) power
terminal strip
