user menu
The User Menu consists of several items which can be modied using the Smart Touch Controller keypad.
Access:
Pressing the Menu button, at one of the static Run Mode displays, causes the operator status displays to scroll
past, stop and display the rst user menu item.
When the CT, Close Timer (or HC, Hold to Close) display appears, it means you have accessed the User Menu.
The Close Timer display is the rst in a cyclical series of User Menu displays.
NOTE: To access the User Menu, the operator must be in Run Mode. To bypass the operator status displays,
press the Menu button a second time.
Use the navigational buttons, Select, Next, and Previous to change or view the
menu functions. Refer to the chart, Smart Touch Controller: Menu Mode Navigation
Buttons on page 36.
Table 1 describes the User Menu items and supplies the factory defaults. (Factory
default settings shown in bold.)

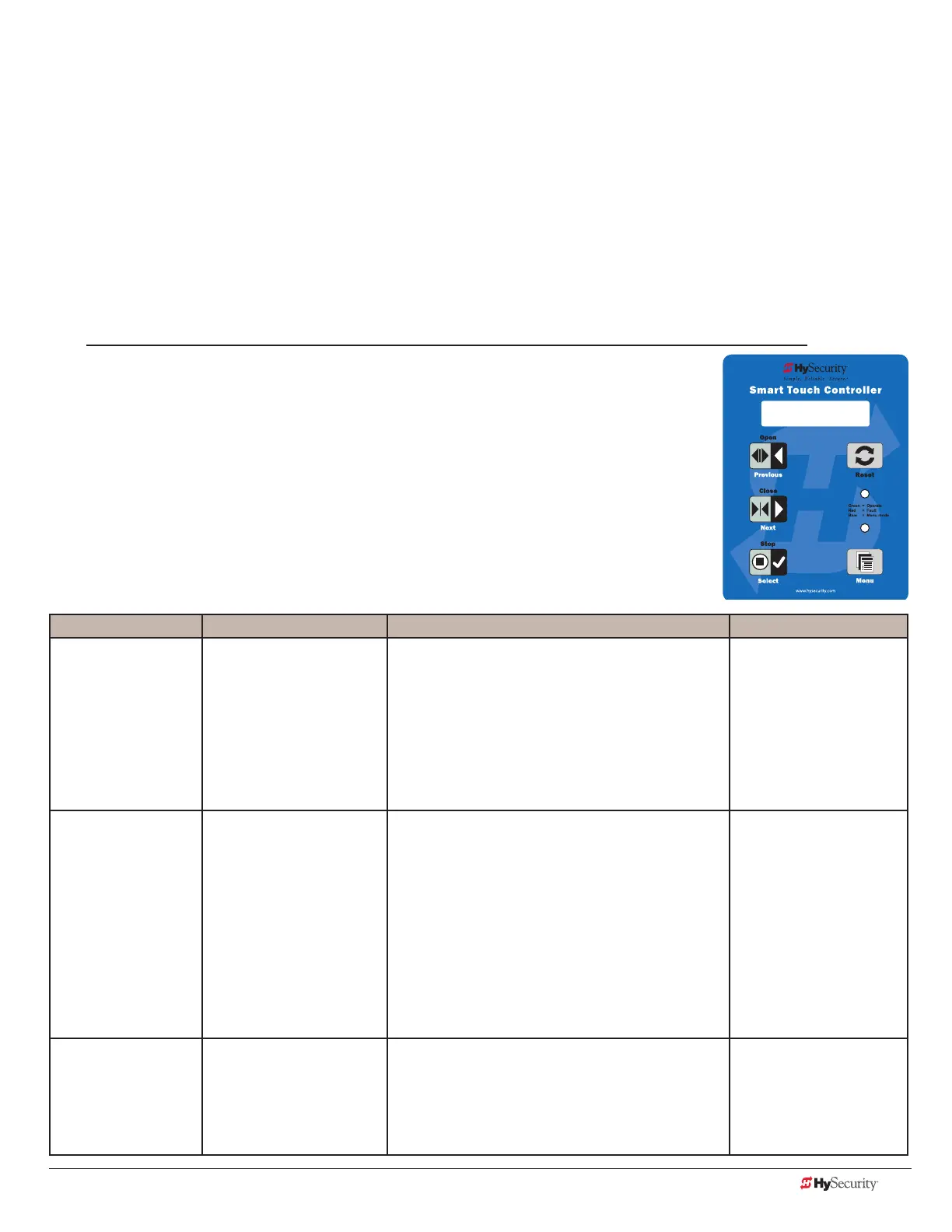

user menu: taBle 1
User Menu Setting Options Menu Tasks & Explanations STC Wire Connections
CT 0 (OFF)
CLOSE TIMER
0 = Timer disabled (OFF)
1 second to 99 seconds
The Close Timer assigns how many seconds before
the open gate initiates closure. It provides a security
precaution in case a CLOSE pulse from the Arm
Smart DC controller is missed.
Keep the setting at 0 if a hard-wired, push-button
control device is being used. Refer to HC.
NOTE: When the Hold to Close is set to 1 or more
seconds, the Close Timer display does not appear
and HC 1 becomes the User Menu entry display.
Not applicable (N/A)
HC 0 (OFF)
HOLD TO CLOSE
0 = off
1 = on
Set to 0 to produce a gate closure when a
momentary signal is transmitted.
Set to 1 if a constant hold to close signal, such as
a push button control, is being used. A setting of
1 also deactivates the automatic close timer and
causes its menu to disappear. The Hold to Close
replaces the Close Timer display as the User Menu
entry display.
NOTE: To comply with UL 325 Type D protection,
set HC to 1. Type D UL 325 compliance means no
automatic closing device, such as a timer, loop
sensor, or similar device shall not be employed.
COM
Close
HO (OFF)
HOLD TO OPEN
0 = off
1 = on
Similar to Hold to Close, but congures the Open
inputs for a constant-hold function.
0 = Momentary open signal
1 = Constant hold open push button required
To comply with UL 325 Type D protection, you must
set HO to 1.
COM
Open
CT 0 (OFF)
CLOSE TIMER
