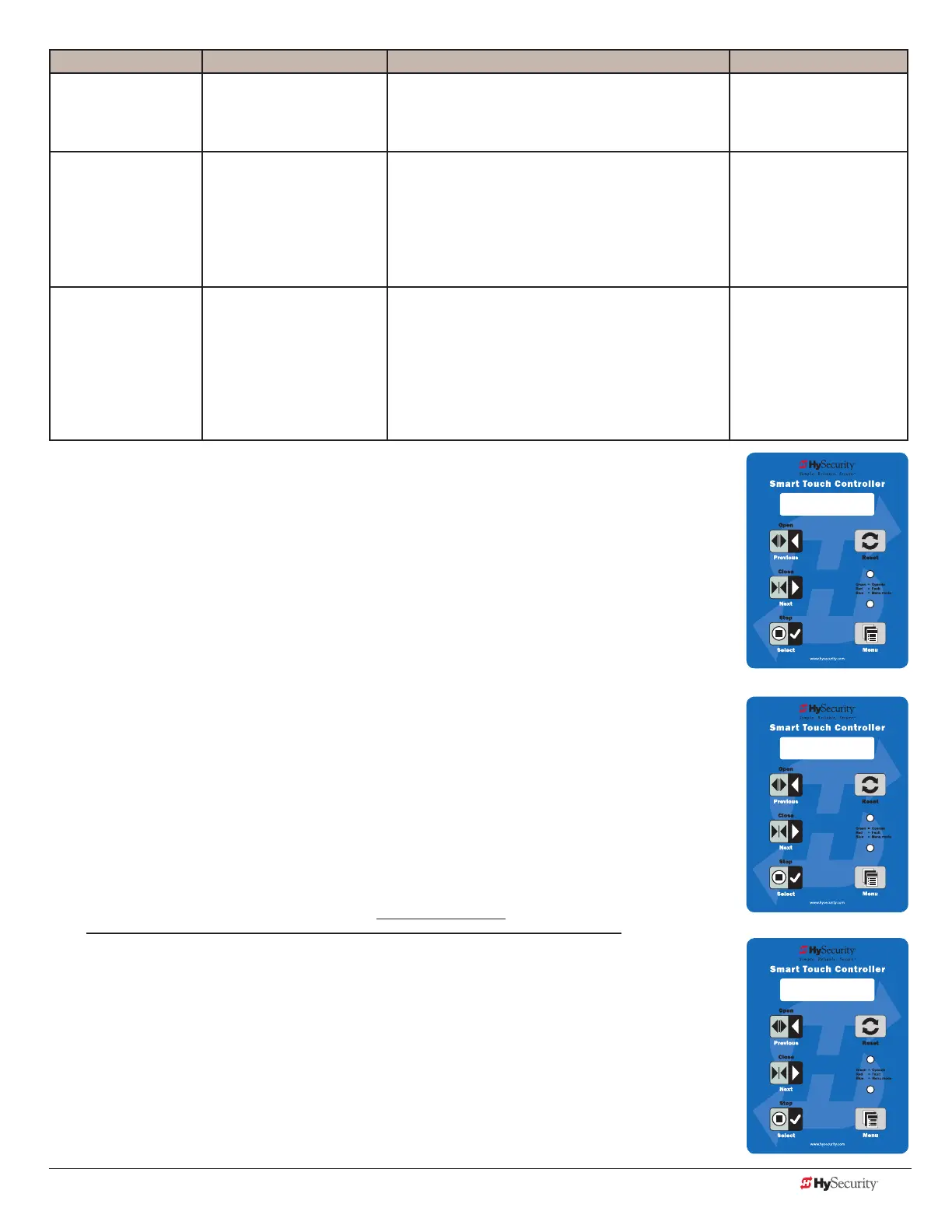

www.hysecurity.com Display & Menu Options D0559 Rev. A 41
User Menu Setting Options Menu Tasks & Explanations STC Wire Connections
LD 5
LCD CONTRAST
5
0 through 9
Adjusts the contrast of the display. Available settings
from low contrast 0 to 9 high contrast, with a factory
default setting of 5. NOTE: Not used or available
with the OLED 32 character display.
N/A
DS 0 (OFF)
DIAGNOSTIC LOGS
0 = off (standard)
1 = on (detailed)
Set to 0, the STC logs pertinent operator events
such as faults, errors, or menu manipulation. When
experiencing intermittent problems, set this item to
1 to record all operator open and close events, in
addition to the normal alert, fault and error logs. This
parameter automatically resets to the default 0 (off)
after 24 hours.
To read the log le, an
RS-232 cable and PC
laptop computer loaded
with HySecurity free
S.T.A.R.T. software is
required. Visit
www.hysecurity.com
PD 0
SET PASSWORD
0 = Off
1 = On (Set Password)
NOTE: A System Address (SA) value in the installer
Menu must be set before the Set Password display
appears in the User Menu.
To enter a password (up to 80 characters) for
network connectivity, select 1. You can use the menu
navigation buttons to enter the password (SELECT,
NEXT, SELECT). When the password is set, the
display returns to the 0 setting.
Network: Ethernet or
RS-485
Installer menu
The Installer Menu options provide more advanced congurations for the gate
operators. Access to the Installer Menu is through the User Menu. The navigational
buttons are the same in both menu modes. Refer to Menu Mode Navigation on
page 36.
Access:
While a static gate status is being displayed, press the Menu button twice. (Bypasses the
operator status displays.)
When the Close Timer display appears (Hold to Close, if the Close Timer display is
hidden):
1. Access the Installer Menu by simultaneously pressing and holding the Reset
and Open buttons.
2. Release both buttons and the display changes, indicating you have arrived at the
rst item in the Installer Menu.
NOTE: Installer Menu options can also be congured through the use of a laptop
computer and S.T.A.R.T. software. See Smart Touch Analyze and Retrieve Tool
information found on the Hysecurity website: www.hysecurity.com
CT 0 (OFF)
CLOSE TIMER
UC 2
USAGE CLASS
HYSECURITY
GATE STOPPED
