STC Inputs & Wiring
This section provides information about the Smart Touch Controller, its inputs for peripheral connections, and its
monitoring capabilities. This section explains how to:
• Make Connections on the Smart Touch Controller
• Integrate with Security Systems
• Connect HY-5A Vehicle Detectors
• Connect Accessory Devices
 Entrapment Sensor Connections
 Access Controls
 Push-button station
 User Relays
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
EDGE SENSOR
PHOTO EYE POWER
24 VOLTS COMMON
PHOTO EYE POWER
DO NOT USE
PHOTO EYE
OPEN DIRECTION
DO NOT USE
PHOTO EYE
CLOSE DIRECTION
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE EXIT
INSIDE OBSTR
OUTSIDE OBSTR
SHADOW RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN EDGE+24V +24V
STAT US
LED

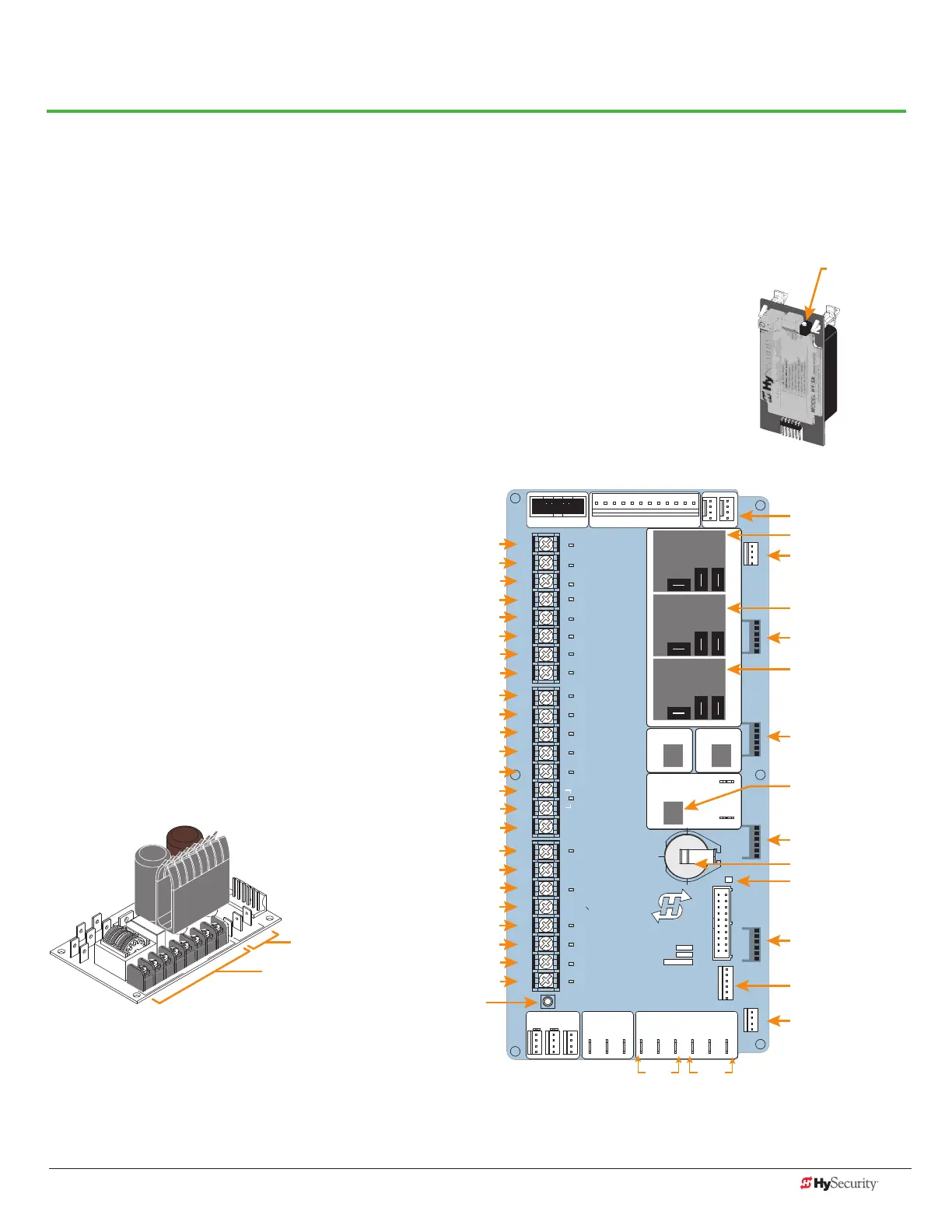

Stop Button* - 1
Open Button* - 2
Close Button* - 3
Remote Open and Radio Control - 4
Open / Close - 5
Open Partial - 6
Interlock Open / Time Clock Open - 7
Free Exit Detector - 8
Disable Exit Detector / Close Timer - 9
Inside Obstruction Vehicle Detector - 10
Outside Obstruction Vehicle Detector - 11
Shadow / Reset Vehicle Detector - 12
Edge Sensor - 13
Photo Eye Power (-) 24V Common - 14
Photo Eye Power (-) 24V Common - 15
DO NOT USE - 16
Photo Eye Open Direction - 17
DO NOT USE - 18
Photo Eye Close Direction - 19
DO NOT USE - 20
Charger AC Loss - 21
Gate Lock Interlock - 22
Emergency Close** - 23
Fire Department Open** - 24
Tact Push Button Switch
CO
MM
ON
24V
A
C A
cce
s
s
or
y powe
r
+
24
V
RS-485
Motor Relay
Reset & Buzzer Connector
User Relay 1
HY-5A Free Exit
User Relay 2
HY-5A Inside
Obstruction
User Relay 3 (DC Only)
Solid state for use with
flashers and other
high cycle accessories
Clock Battery
HY-5A Outside
Obstruction
HY-5A Shadow /
Reset*
RS-232 Connector
Weigand Connector
Limit Switch
Connectors
Master
Slave
Open
Radio
Gate
Edge Radio
LED lights
when energized
Power Connector
Power Module
HY-5A
24V DC
Accessory Power (+)
Common Bus (-)
Heartbeat
Blinks green = operational
Red = alert, fault, or error
