www.hysecurity.com Control Panel Overview D0559 Rev. A 29

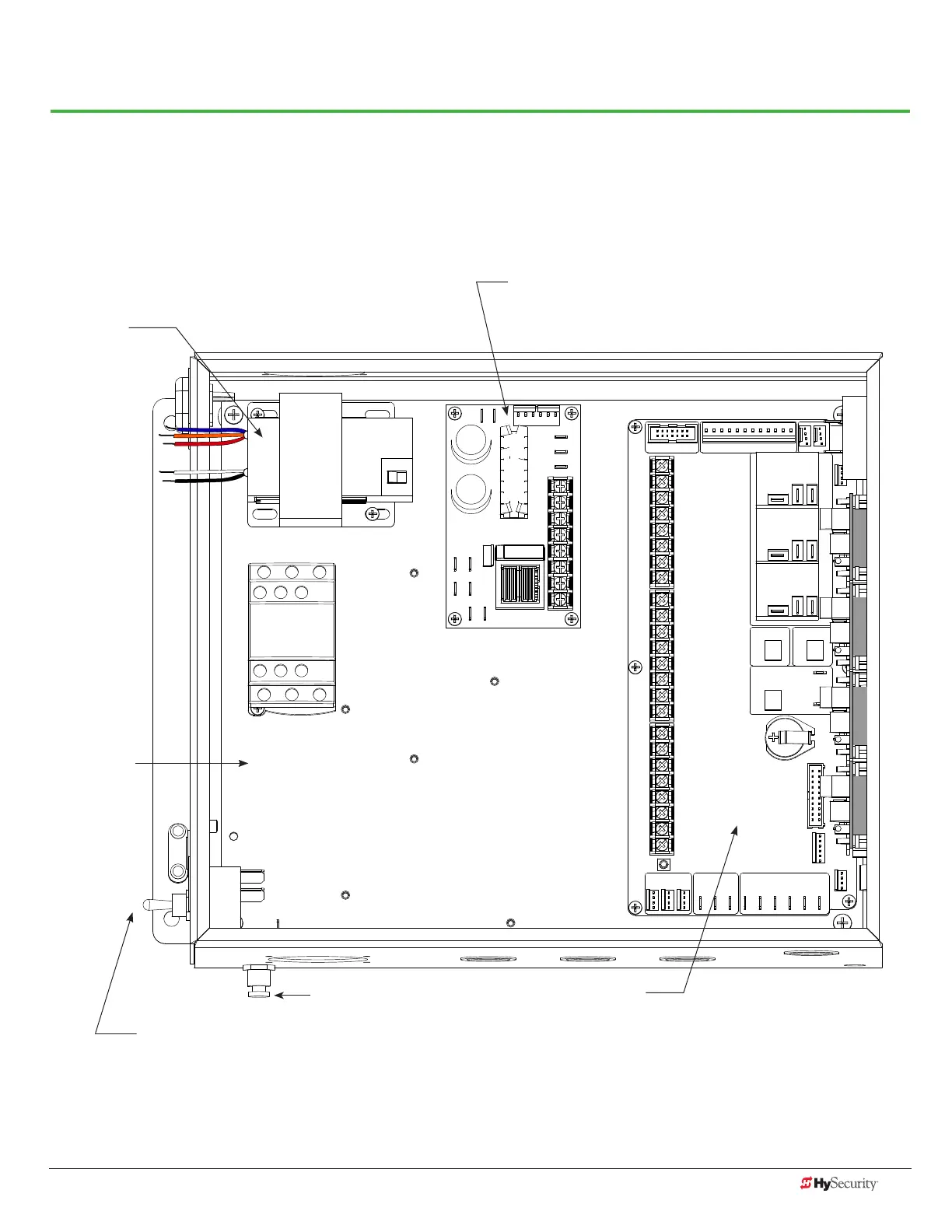

Control Panel Overview
This section provides an overview of the the electrical controls found in your gate operator. The illustrations
highlight the various components and describe their function. Each callout explains where to nd more
information about the component.
SlideDrive Models: All, except 50VF Models
Transformer:
Provides the connections for AC power and steps
down the voltage to 24 VAC. For more information,
refer to Control Transformer Connections (Non-UPS)
on page 21.
Power Module
Provides common and 24VAC & 24VDC terminals.
Refer to Overview of the STC and Power Module
on page 50.
Power Switch
Reset Switch
Smart Touch Controller:
Provides inputs for peripherals and accessories, 2
electromechnical user relays (250VAC, 10A), one solid
state user relay (30VDC, 3A). For more information, refer
to STC Terminal Inputs on page 52.
Control Box
To Next Page
