4

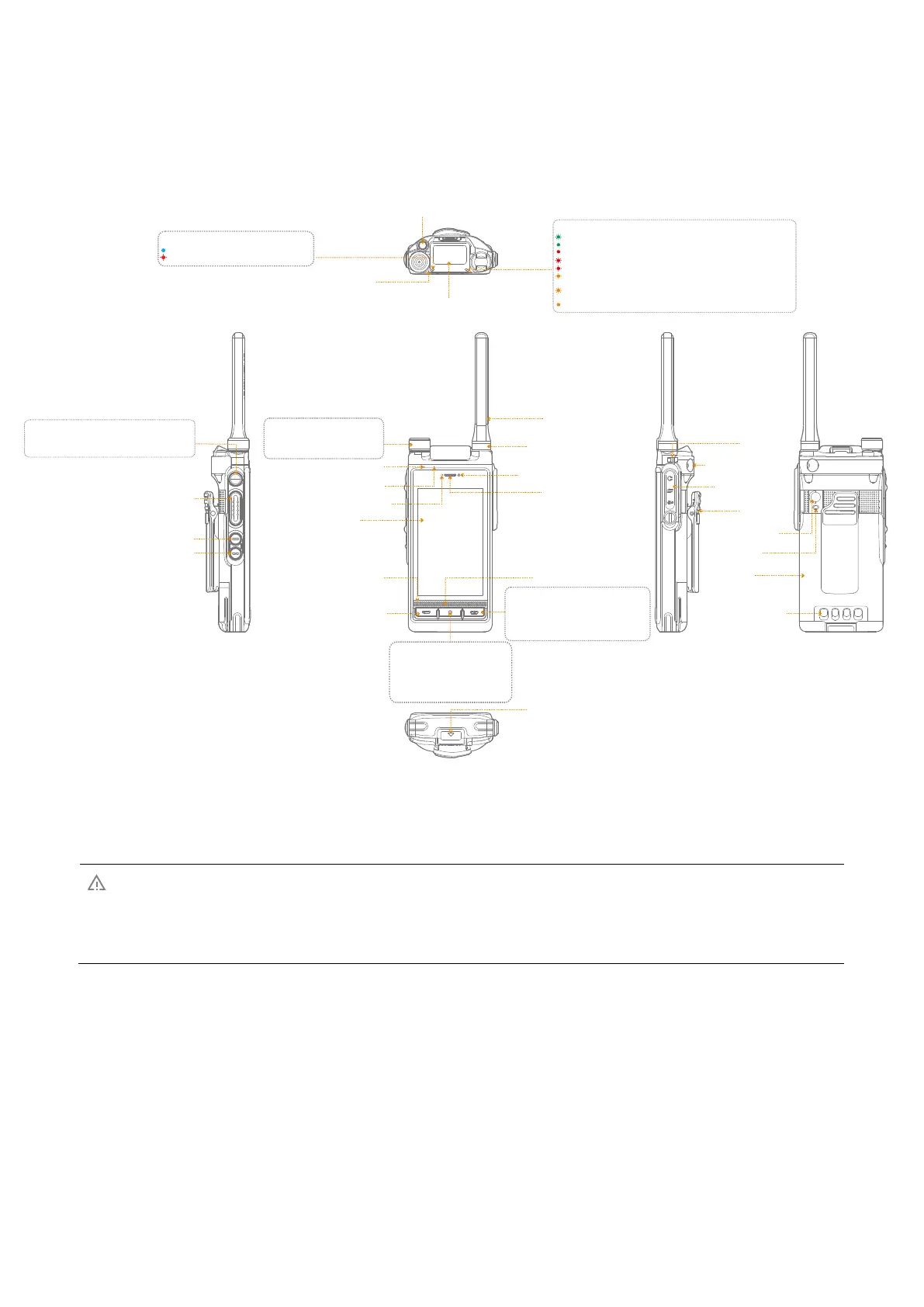

1.2 Product Layout
1.3 Attaching the Antenna
Do not hold the radio by the antenna and swing it. This may affect the antenna performance and
shorten the life span of the antenna.
1. (Optional) Put the color ring (for identification) on the antenna connector.
2. Put the antenna on the antenna connector.
3. Rotate the antenna clockwise till hand tight.
Caution
Speaking Microphone
Main Screen
Ambient Light Sensor
Barometer Sensor
Hands-free Microphone
Top Key (TK)
Top Screen
LED Indicator 2
Noise-canceling Microphone
Smart Key
Push-to-Talk (PTT) Key
Side Key 2 (SK2)
Side Key 3 (SK3)
Battery Latch
Home Key
● When the screen is off, short press to
turn it on.
● When the screen is on, short press to
return to the home screen, or double
press to view running apps.
On-Off/End Key
●
●
Speaker
Back Key
Antenna
Color Ring
Front Camera
Receiver
Strap Hole
CARKIT RF Connector
Accessory Connector
Belt Clip
Rear Camera
Flashlight
Battery
Charging Piece
●
When the radio is off, long press to turn it on.
When the radio is on, long press to turn it off,
restart, or turn the broadband on or off.
Short press to reject or end calls.
● When the main screen is on, short press to turn it off.
● When the main screen is off, short press to turn it on.
Glows blue for 3s: A BT device is connected.
Flashes red: Unread message(s) or missed call(s).
●
●
Rotate to adjust the volume.
Press and then rotate to select the
contact/channel.
Smart Knob
LED Indicator 1
Flashes green rapidly: Being turned on.
Glows green: Receiving.
Glows red: Transmitting.
Flashes red rapidly: Establishing a call in trunking mode (only for caller).
Flashes red slowly: Low battery.
●
Flashes orange slowly: Conventional: Scanning or roaming.
●
Trunking: Registering.
Flashes orange rapidly:
●
Conventional: Operating in emergency mode.
●
Trunking: Establishing a FOACSU private call (only for callee).
Glows orange: Call hang time. Press and hold the PTT key to speak.
