1.2 Mechanical specifications
1-93
1. Specifications

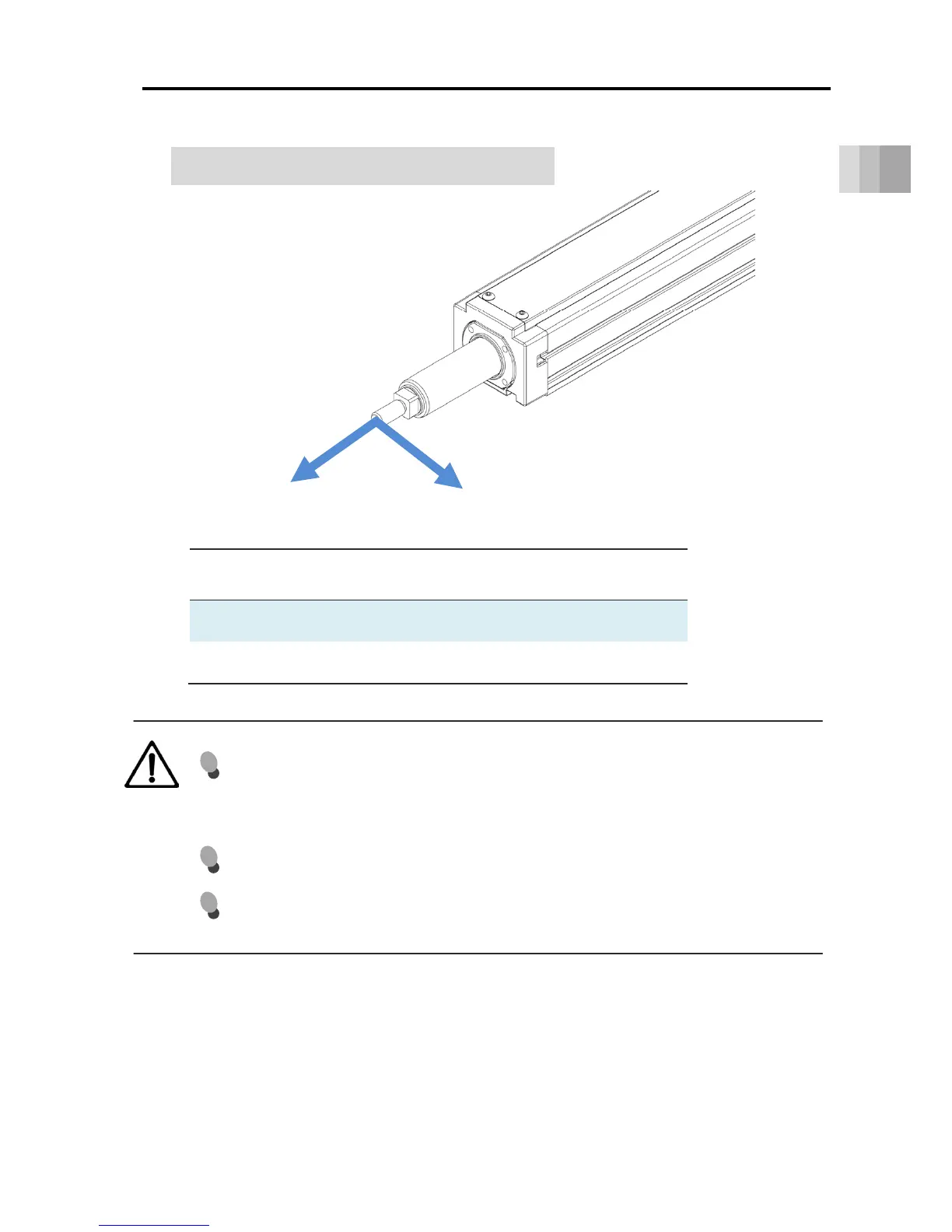

Allowable offset amount, allowable overhang distance
Type
Allowable offset amount
Allowable overhang
distance
EC-RR6□H
100mm 100mm
EC-RR7□H
150mm 150mm
Caution
Keep the radial load acting on the rod within the allowable offset amount and overhang
distance for use.
If the allowable values are exceeded, this may lead to vibration, shortened product life, or
damage.
If abnormal vibration or noise occurs during operation, even when within allowable values
for radial and torque loads, use less stringent operating conditions.
Keep the mounted object center mass location at or below 1/2 the overhang distance or
offset amount.
Overhang distance
(Rod length direction)
Offset amount
(Rod perpendicular direction)
