2.5 Installation of rod type
2-26
2. Installation

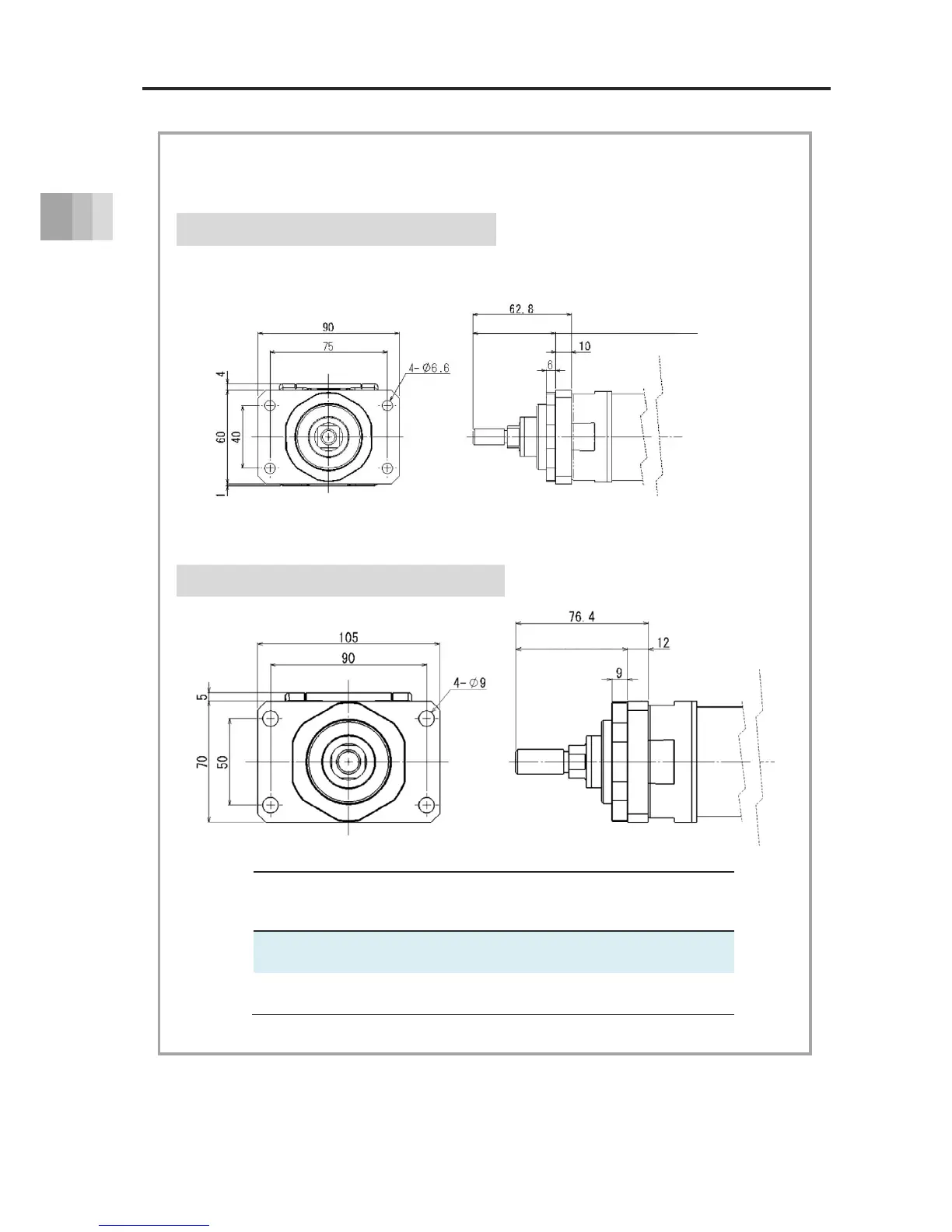

[When using flanges]
ELECYLINDERs can be mounted with flanges (option: model FL).
→ For precautions for mounting, refer to pages 2-27 to 28.
For EC-R6 (Part model number EC-FL-R6)
For EC-R7 (Part model number EC-FL-R7)
Type Material
Tightening torque
when mounting ELECYLINDER
EC-R6
Iron
(unichrome)
30.00N･m
EC-R7
Iron
(unichrome)
35.00N･m
52.8 (home position)
64.4 (home position)
