2.6 Installation of radial cylinder type
2-37
2. Installation
There are a reamed hole and an oblong hole for the positioning pins.
Use the reamed hole and oblong hole if mounting reproducibility after detachment is required.
When fine adjustment of angles, etc. is required, consider using only the reamed hole.

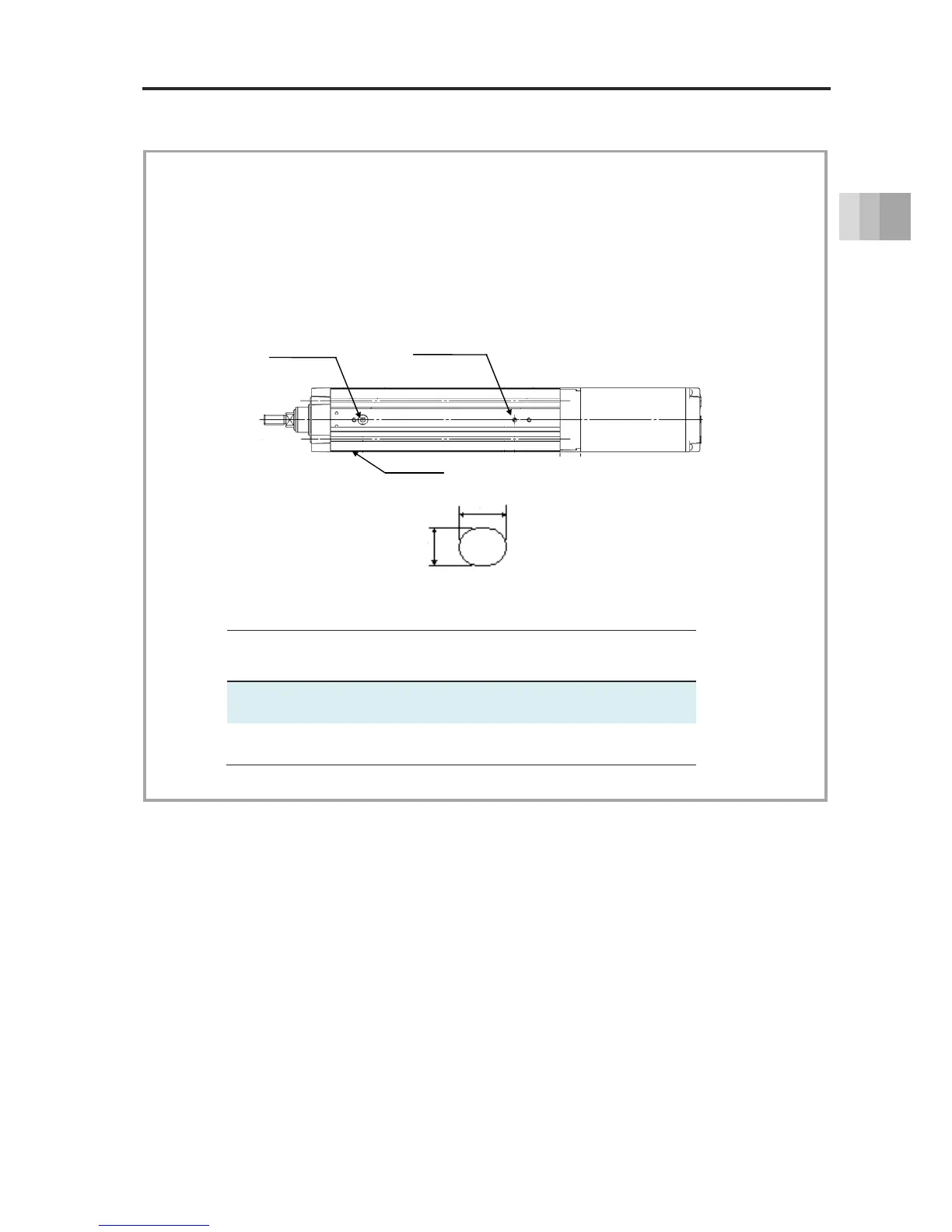

Reamed hole/oblong hole position dimensions
Type Reamed hole Oblong hole
EC-RR6 φ4H7 depth 5
A: 4 B: 5 depth 5 mm or less
EC-RR7 φ4H7 depth 5
A: 4 B: 5 depth 5 mm or less
Referen
Oblong hole
Reamed hole
+0.012
0
+0.012
0
A
B
Oblong hole
