2.6 Installation of radial cylinder type
2-38
2. Installation

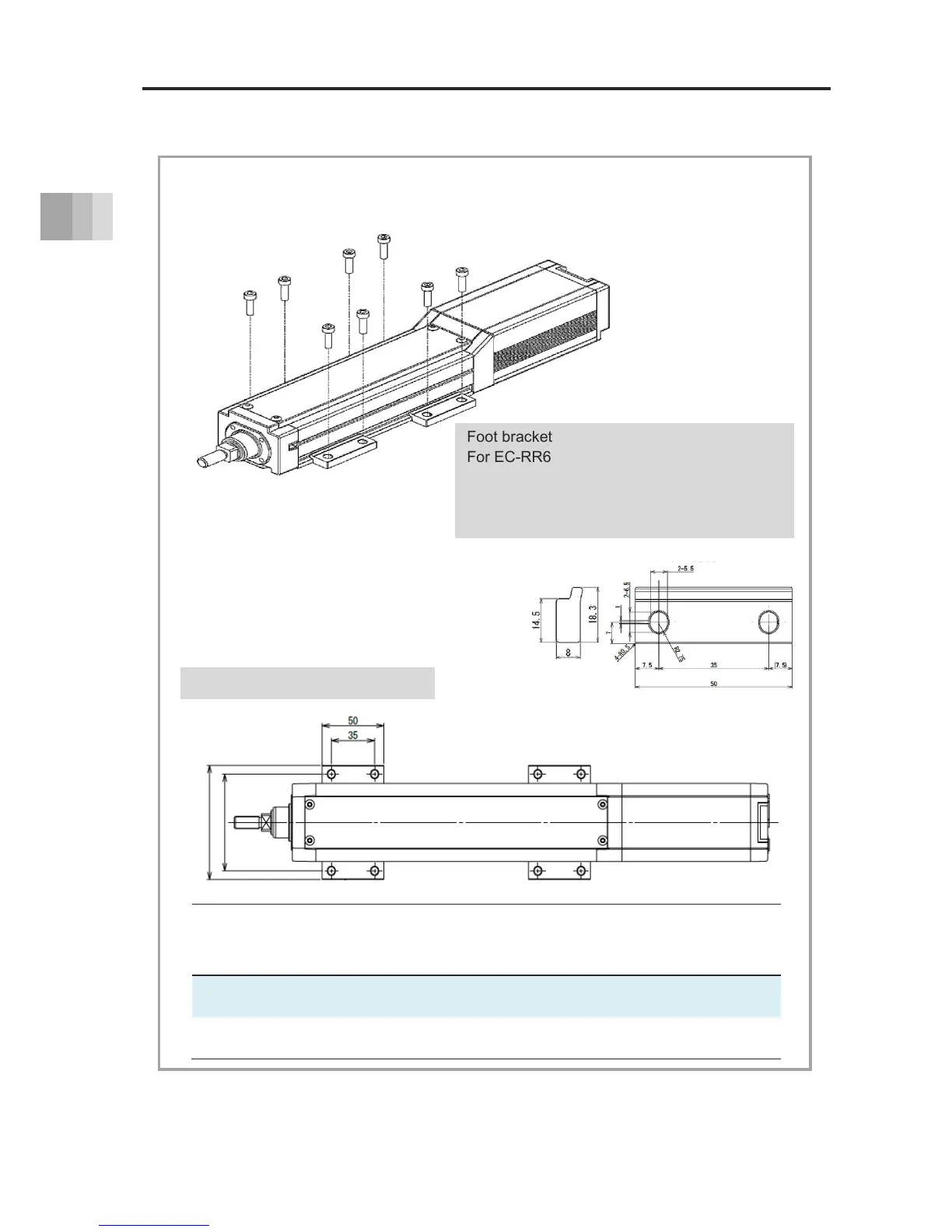

[When using foot brackets]
Mounting from the top is possible using foot brackets.
The groove on the side of the main body can be fixed from the top.
Foot bracket
For EC-RR6
(Part model number EC-FTSB、4pcs/set)
For EC-RR7
(Part model number EC-FTSB-02、6pcs/set)
Foot bracket mounting dimensions
Type Pt A
Screw
size
Minimum
number of
brackets
Tightening
torque
EC-RR6 78mm 92mm M5 4 locations
7.27N･m
EC-RR7 88mm 102mm M5 6 locations
7.27N･m
Pt
A
