2.6 Installation of radial cylinder type
2-44
2. Installation

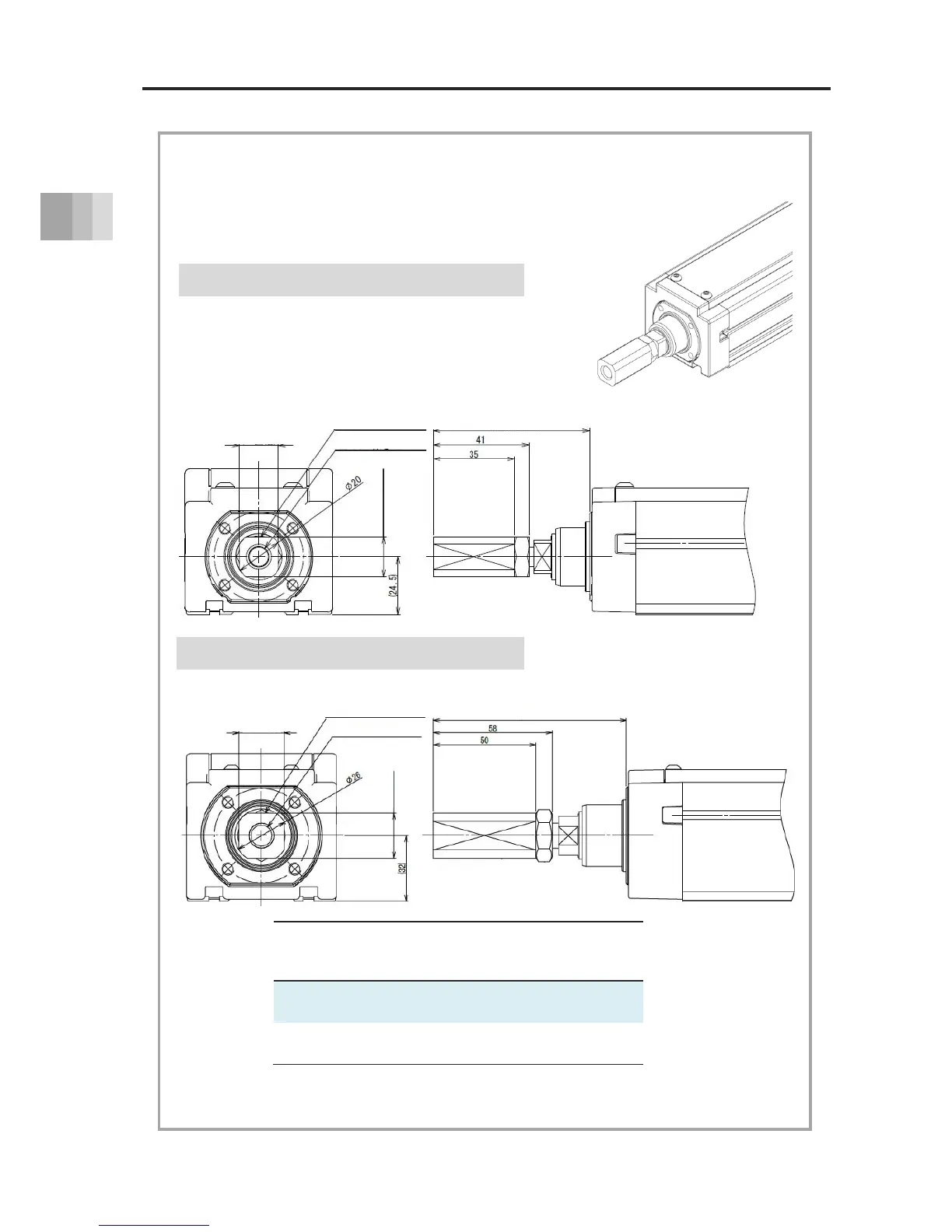

[When using tip adapter]
Transported objects can be secured using the internal thread of the tip adapter.
* Fix the rod tip bracket width across flats with a wrench, etc., to prevent loads from being
applied to the rod.
For EC-RR6 (Part model number EC-NFA-R6)
For EC-RR7 (Part model number EC-NFA-R7)
Type
Tightening torque when mounting
ELECYLINDER
EC-RR6
30.00N･m
EC-RR7
35.00N･m
The angle of the width
across flat is undefined
M10 x 1.5 depth 15
17
(
Wi
d
th
ac
r
oss
fl
a
t
)
-0.15
-0.20
The angle of the width
across flat is undefined
67 (home position)
17 (Width across flat)
-0.15 -0.20
94 (home position)
M12 x 1.75 depth 20
22 (Width across flat)
-0.15 -0.20
22
(Width across flat)
-0.15
-0.20
