2.7 Installation of high rigidity radial cylinder type
2-61
2. Installation

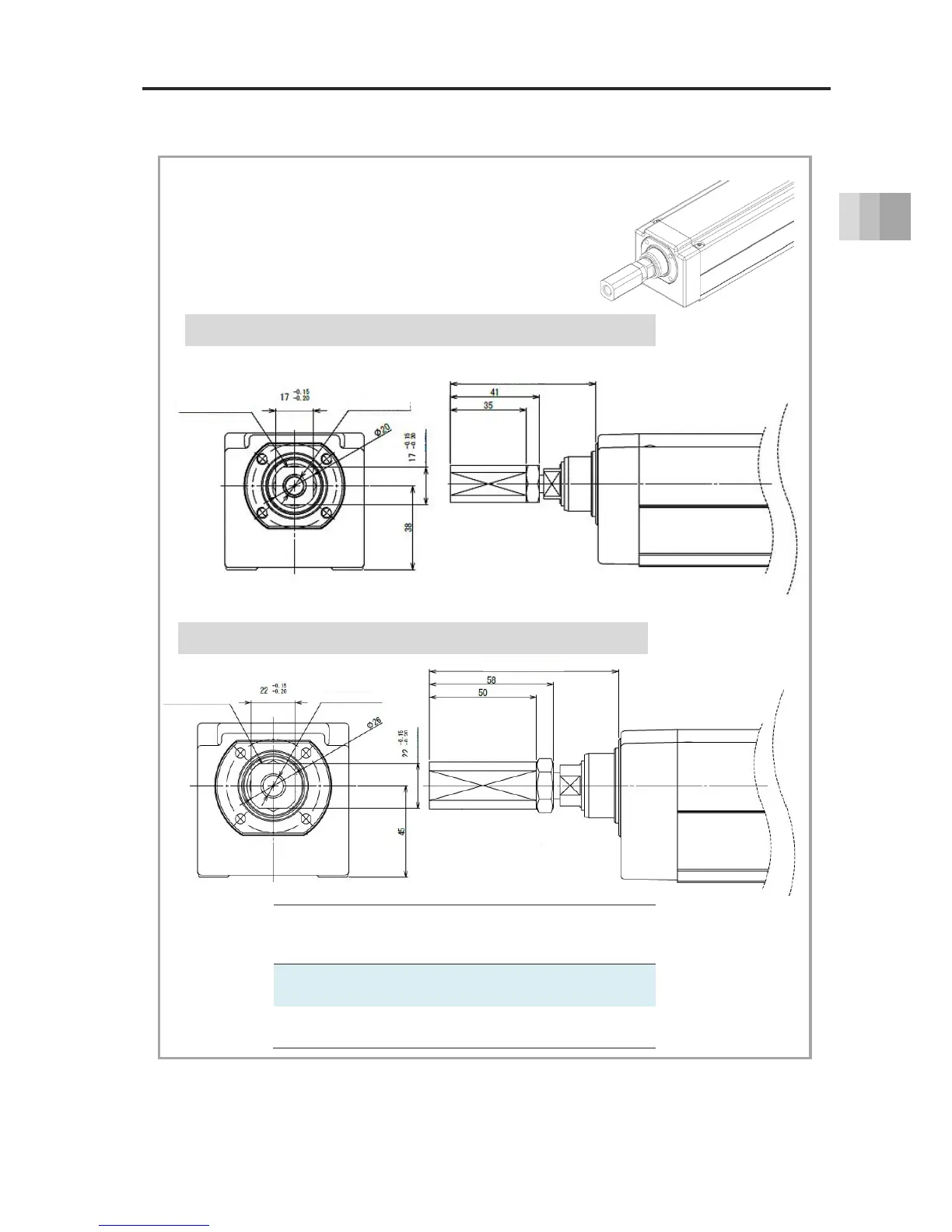

[When using tip adapter]
Transported objects can be secured using the internal thread
of the tip adapter.
* Fix the rod tip bracket width across flats with a wrench, etc.,
to prevent loads from being applied to the rod.
For EC-RR6□AH and EC-RR6□H (Part model number EC-NFA-R6)
For EC-RR7□AH and EC-RR7□H (Part model number EC-NFA-R7)
Type
Tightening torque when mounting
ELECYLINDER
EC-RR6□AH
EC-RR6□H
30.00N･m
EC-RR7□AH
EC-RR7□H
35.00N･m
67(home position)
M10 x 1.5 depth 15
The angle of the width
across flat is undefined
(width across flat)
(width across flat)
The angle of the width
across flat is undefined
M12 x 1.75 depth 20
(width across flat)
(width across flat)
88.5(home position)
