2.7 Installation of high rigidity radial cylinder type
2-62
2. Installation

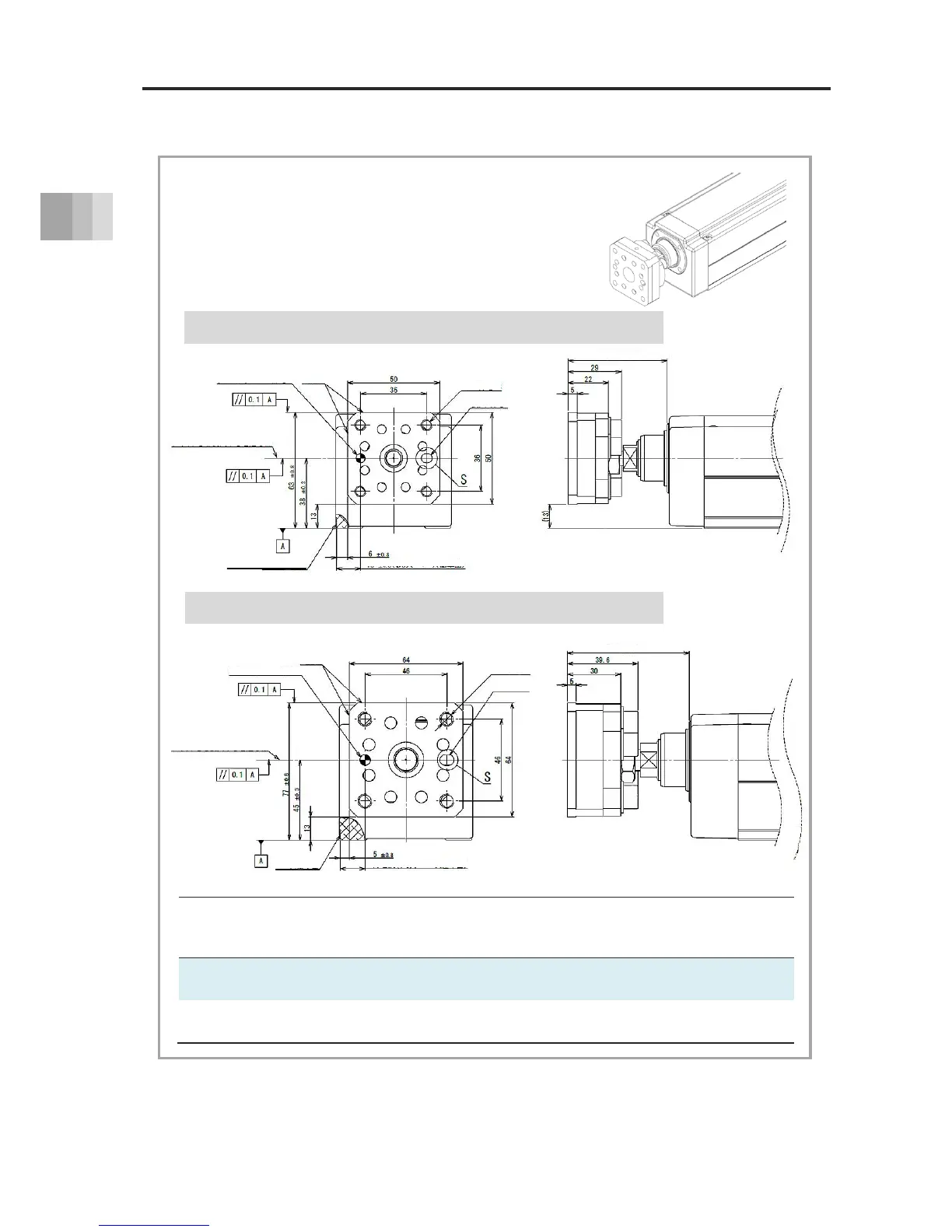

[When using tip flange]
Transported objects can be secured using the tip adapter flange.
For EC-RR6□AH and EC-RR6□H (Part model number EC-FFA-RR6)
For EC-RR7□AH and EC-RR7□H (Part model number EC-FFA-RR7)
Type
Tightening torque when
mounting flanges A and B
Tightening torque when
mounting ELECYLINDER
EC-RR6□AH
EC-RR6□H
7.1N･m (M6) 30.00N･m
EC-RR7□AH
EC-RR7□H
17.2N･m (M8) 35.00N･m
68.5(home position)
Reference
surface
4-M8 depth 17
φ 6 H7 reamed depth 8
Oblong hole
depth 8
Line through centers of φ6
hole and oblong hole
Base
reference surface
14 ± 0.8 (φ6 hole - base reference surface)
54(home position)
φ5 H7 reamed depth 8
Reference
surface
4-M6 depth 13
Oblong hole
depth 8
Line through centers of φ5 hole
and oblong hole
Base reference surface
13 ± 0.8 (φ5 hole - base reference surface)
