8.6 How to replace components
8-30
8. Maintenance and Inspection

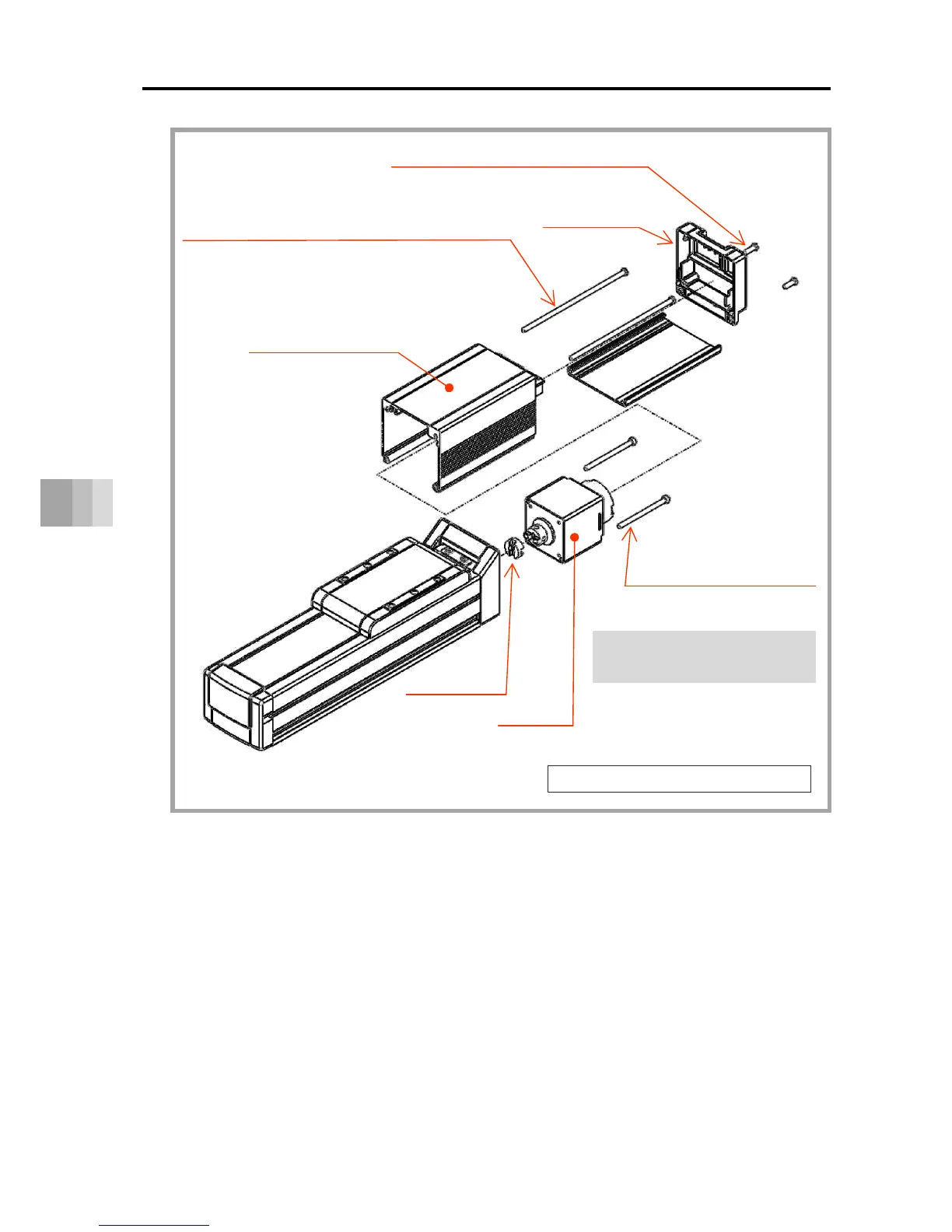

Slider type replacement method
Motor cover assembly
(controller substrate)
Cross-recessed tapping screws x 2 pcs
(M3 x 10, tightening torque 0.60N･m)
Cross-recessed pan screws x 2 pcs
S6/S7: M3 x 110/150, tightening torque 0.60N･m
(M3 x 150/200 for models with brake)
End cover
Hex socket head bolt
S6: 2 pcs, M3 x 50, 0.83N･m
S7: 4 pcs, M4 x 15, 1.76N･m
Motor
Coupling
spacer
* Hex socket head bolts are used
to fix the motor.
They are not cross-recessed bolts.
To Next Page
