31

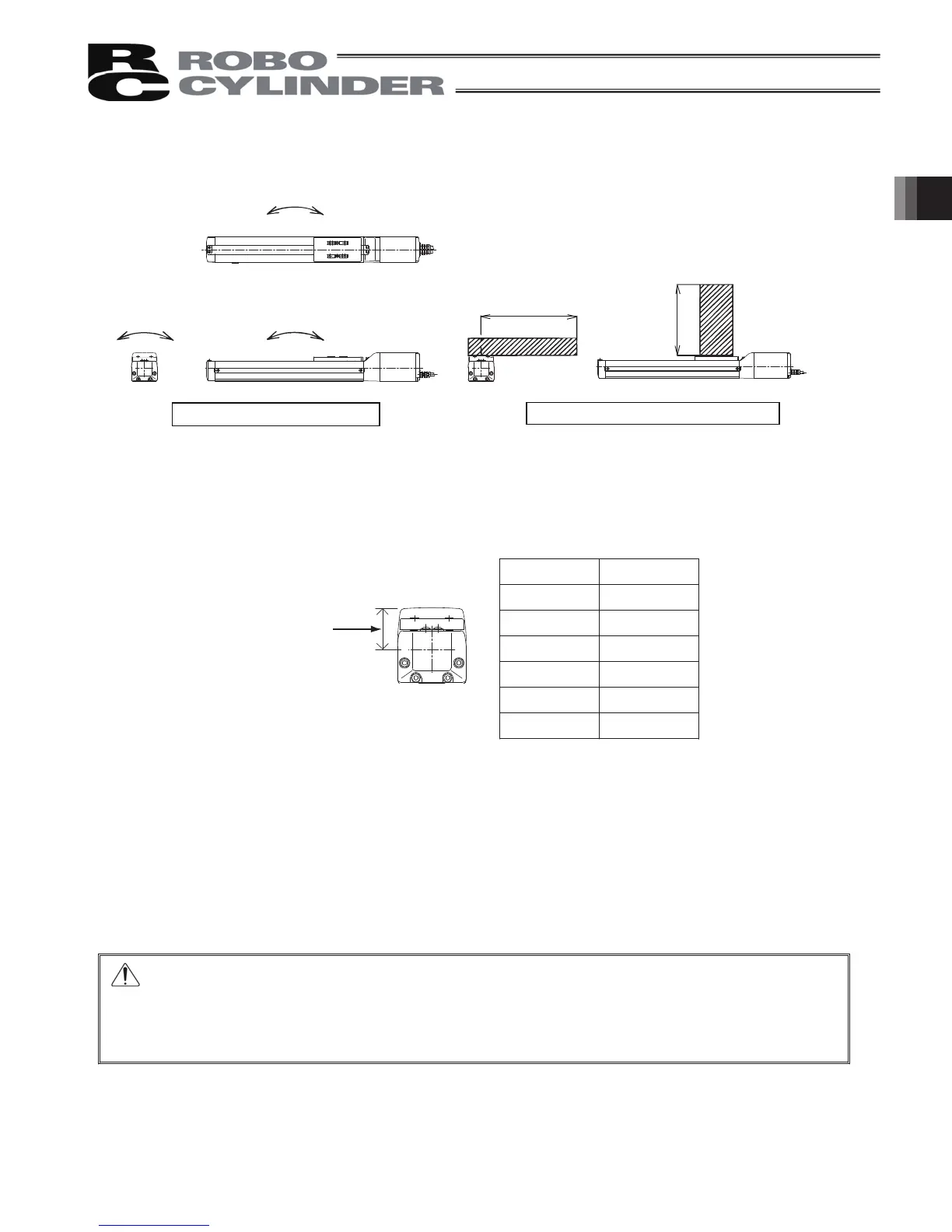

2. Specification
Mb, Mc directions
Ma direction
Directions of moment forces
Directions of allowable overhangs
0E
0D0F
/
/
x
The allowable overhang values are based on a configuration where the center of gravity of the load
mounted on the actuator corresponds to 1/2 of the overhang length.
(Note) To calculate the moments in Ma and Mc directions, offset the reference position by L mm from the top
surface of the slider, as shown in the figure below.
L
SA5C, R 39 mm
SA6C, R 40 mm
SA7C, R 43 mm
SS7C, R 36 mm
SS8C, R 48 mm
HS8C, R 48 mm
Caution: Make sure the length of the load installed on the actuator does not exceed the allowable
overhang load length (L). If the allowable overhang load length is exceeded, vibration may
generate or the settling time may become longer. If the actuator is used at load moments
exceeding the allowable values, not only the life of the guide will become shorter, but other
undesirable effect may occur, as well, such as vibration or longer settling time.
L
Reference position
