67
9. Maintenance and Inspection
8) Attach the pulley cap.
Tighten the hexagon socket-head bolts (M3 x 8mm, 2 pcs.) using an Allen wrench of 2.5mm across flats.
Tightening torque: 83 N·cm (8.47 kgf·cm)

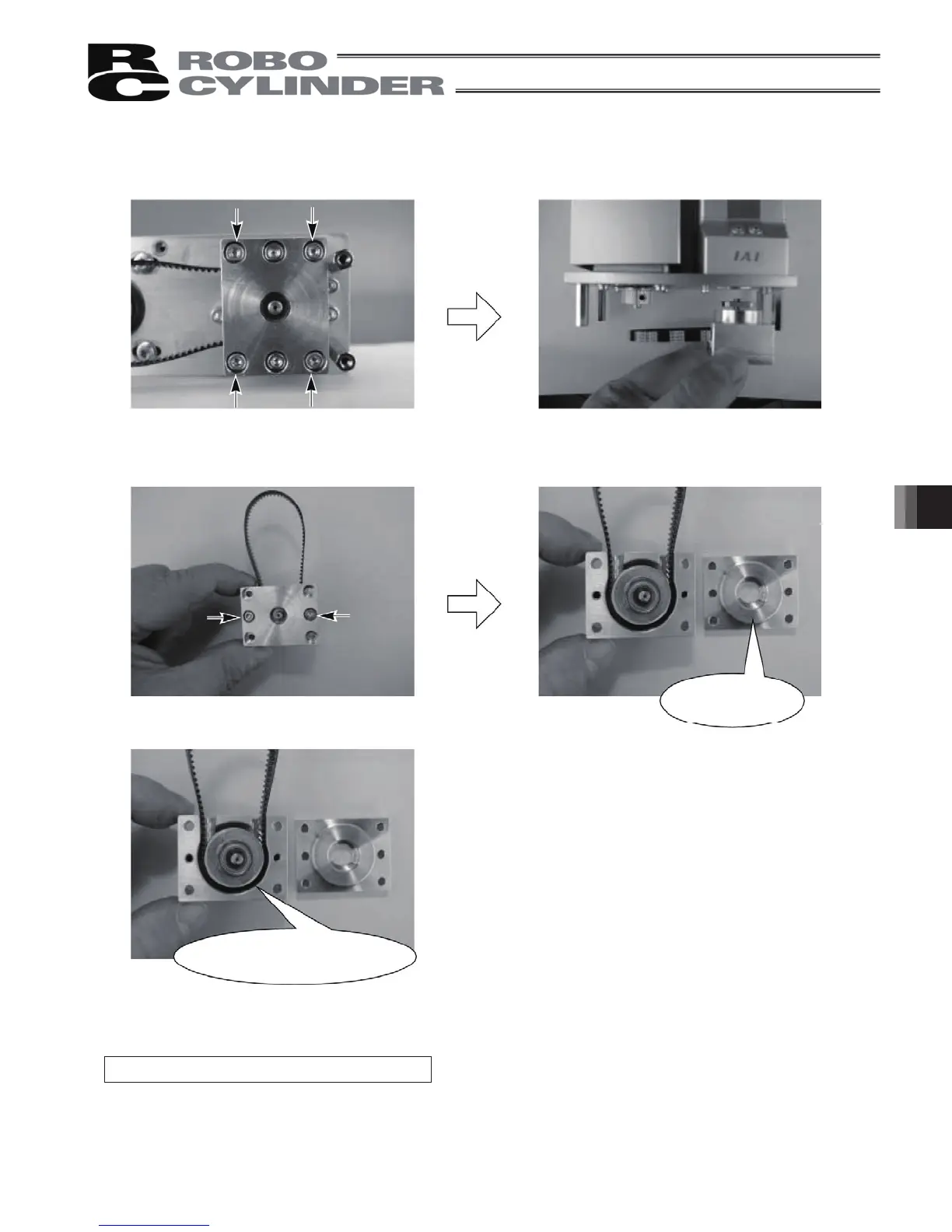

5) Remove the pulley assembly.
䈄
Remove the four affixing bolts using an Allen wrench
of 2.5mm across flats.
䈄
Pull out the assembly by hand.
6) Remove the pulley cap.
䈄
Remove the two affixing bolts using an Allen wrench
of 2.5mm across flats.
7) Pull out the belt and insert a new belt.
Pulley cap
Insert the belt into
this clearance.
To Next Page
