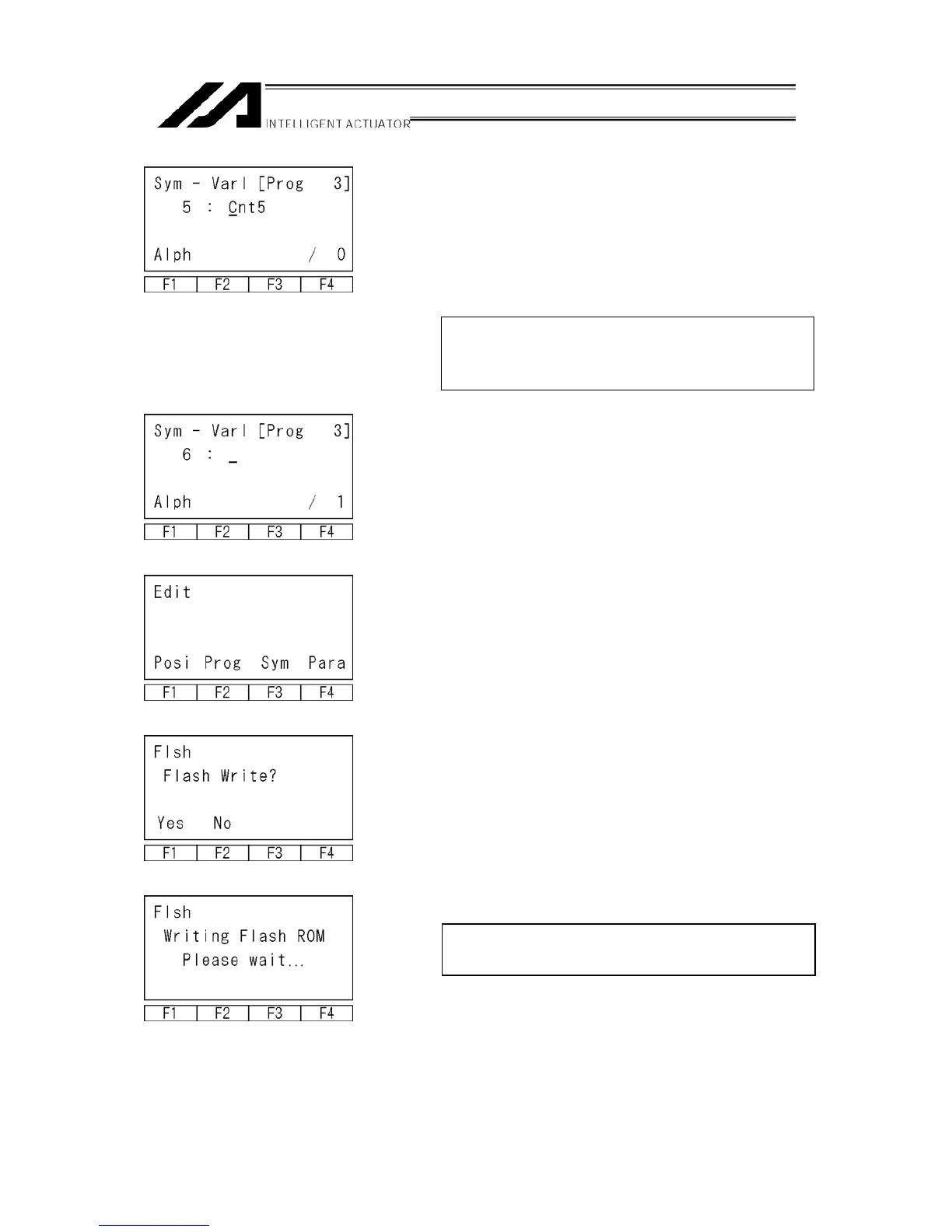

After determining symbol name, the cursor moves to
the top letter.
If it’s before determination, you can fix the letters one
by one with the BS key.
After determination, the name is corrected by
overwriting all the characters.
Transmit the symbol data to the controller by
pressing the WRT key.
* If you change the screen with the PAGE UP ·
PAGE DOWN or ESC keys before transmitting the
data, the input data will be invalid.
To finish edit, return to the edit screen with the ESC
key.
Press the ESC key.
Press the F1 (Yes) to write the data to Flash ROM.
If not, press F2 (No) key.
During Flash ROM writing, “Please Wait....” blinks.
* Never shut off the power to the controller
during Flash ROM writing.
