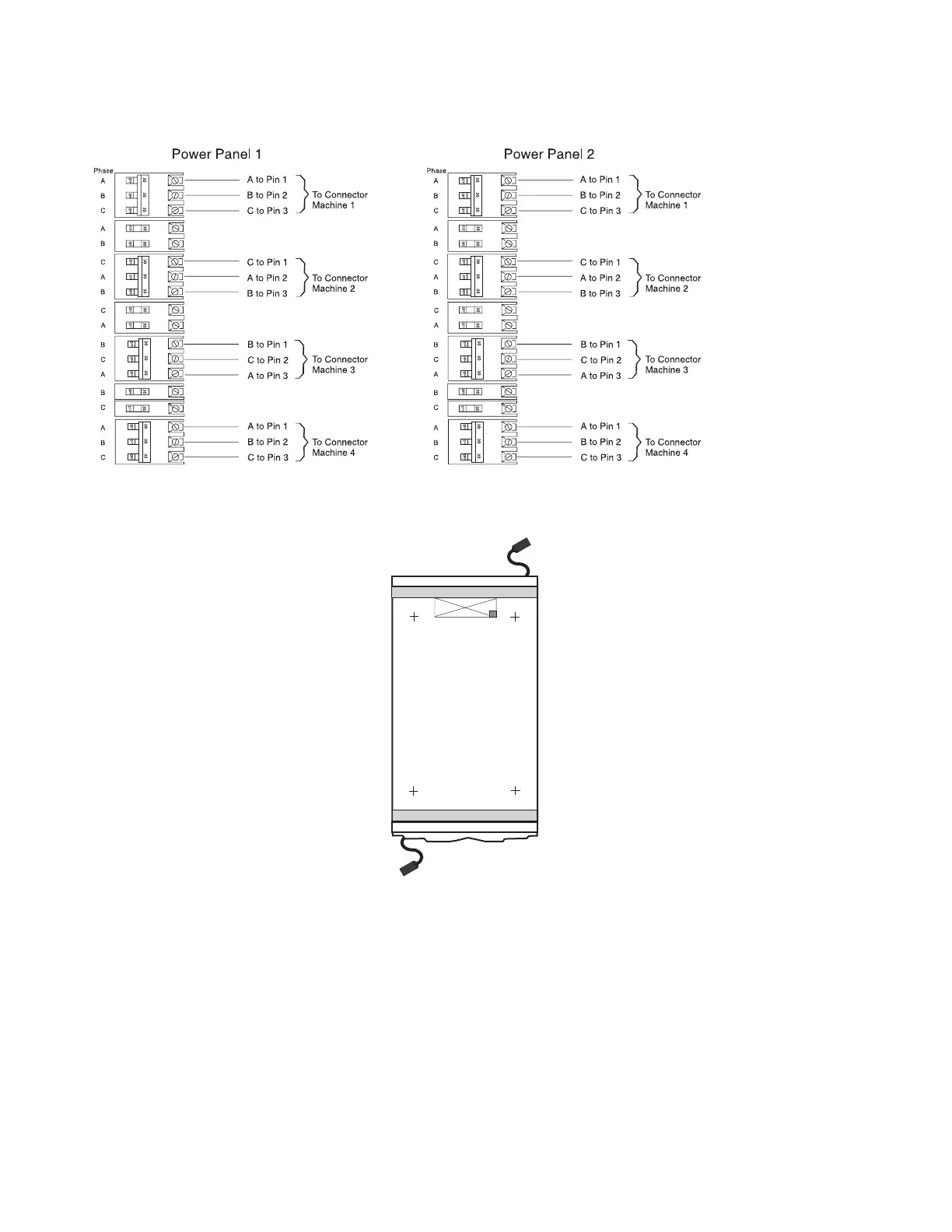

The following figure shows another way of distributing the unbalanced load evenly. In this case, the
three-pole breakers are alternated with two-pole breakers.
Power Cord Configuration
The power cords exit the system from different points of the frame as indicated in the following illustration.
A
(Top Down View)
Front
Rear
