4-Port Multiprotocol Communications Controller Cable Planning Chart
Example

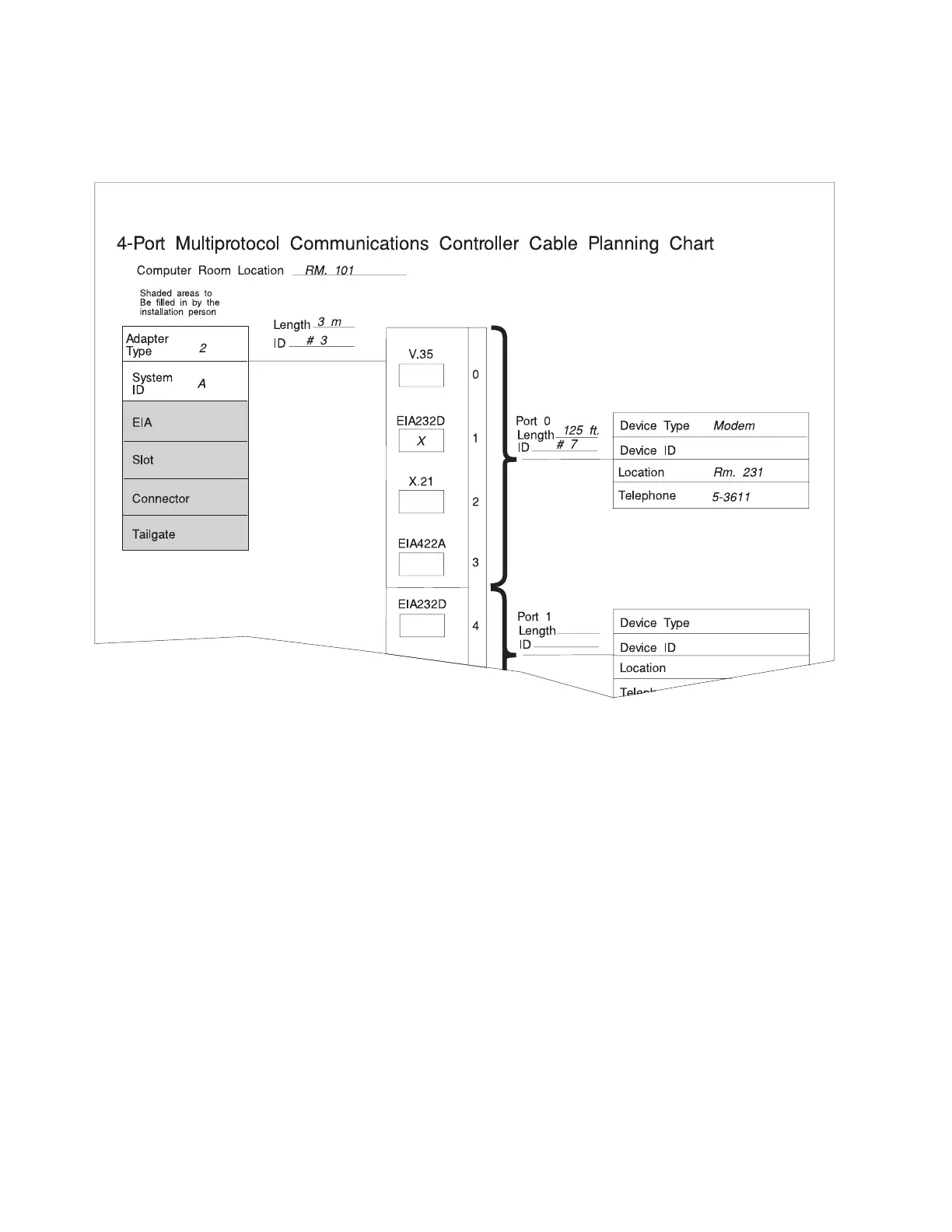

An example of a 4-Port Multiprotocol Communications Controller Cable Planning Chart completed for a
modem. In this example, the terminal is attached to Port 0. The protocol type, in this case EIA-232D, is
noted with an X.
360 Site and Hardware Planning Information
