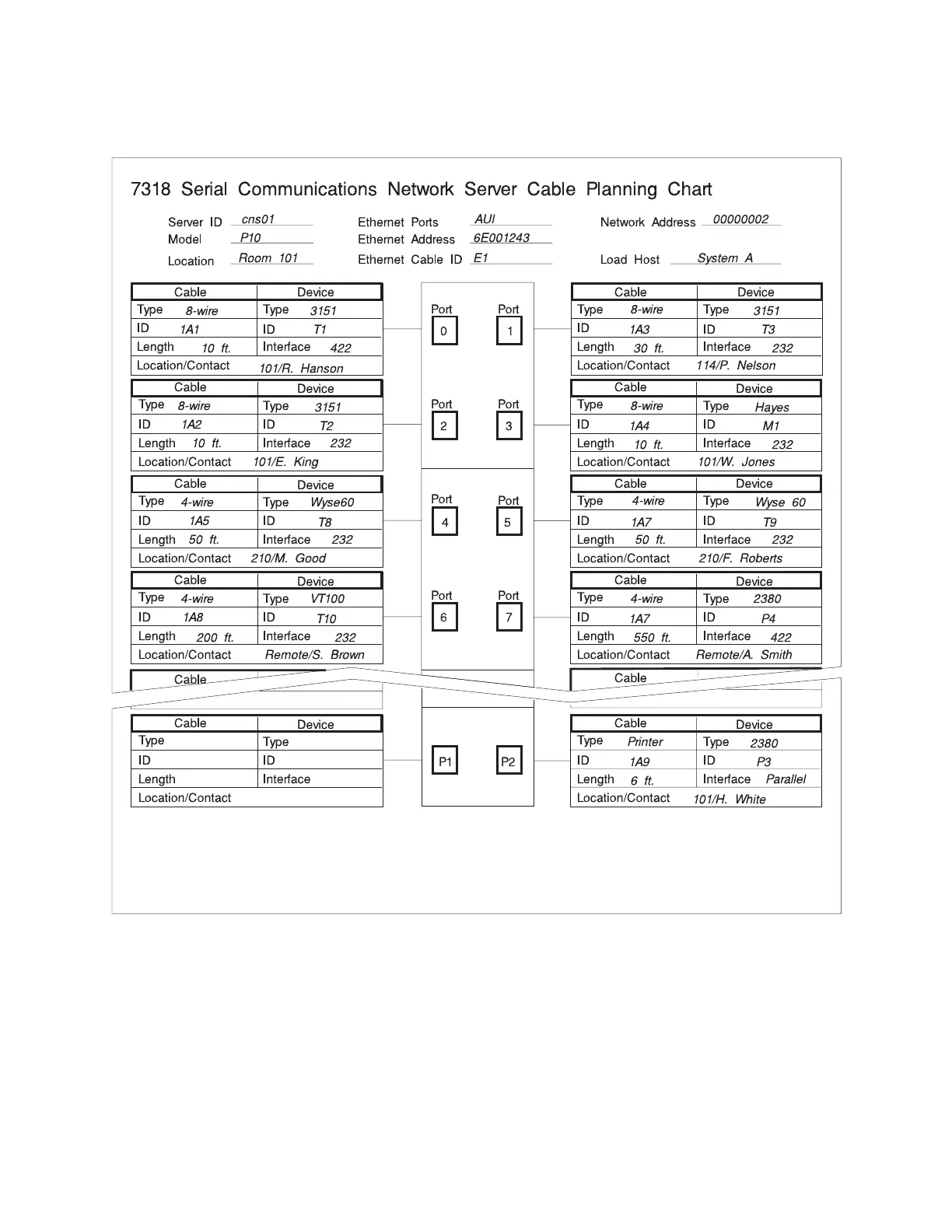

7318 Models P10 and S20 Cable Planning Chart Example
An example of the 7318 Terminal Server Cable Planning Chart showing connection of six terminals, 1
modem, 1 serial printer, and 1 parallel printer. The IDs assigned in the example above are assigned by the
configuration planner.
Chapter 12. Cable Planning 363
