Securing the Rack
The following can be ordered by the customer as additional rack securing options for the Eserver pSeries
690.
v RPQ 8A1183 for attaching the rack-mounting plates to the concrete floor (non-raised floor)
v RPQ 8A1185 to attach the rack to a concrete floor when on a raised floor (9 1/2 inches to 11 3/4 inches
high)
v RPQ 8A1186 to attach the rack to a concrete floor when on a raised floor (11 3/4 inches to 16 inches
high)
Positioning the Rack:
Note: The customer should unpack the rack and position it in the room. If this has not been done, consult
the customer and the marketing representative as necessary.
To unpack and position the rack, do the following:
1. Remove all packing and tape from the rack.
2. Position the rack according to the customer floor plan.

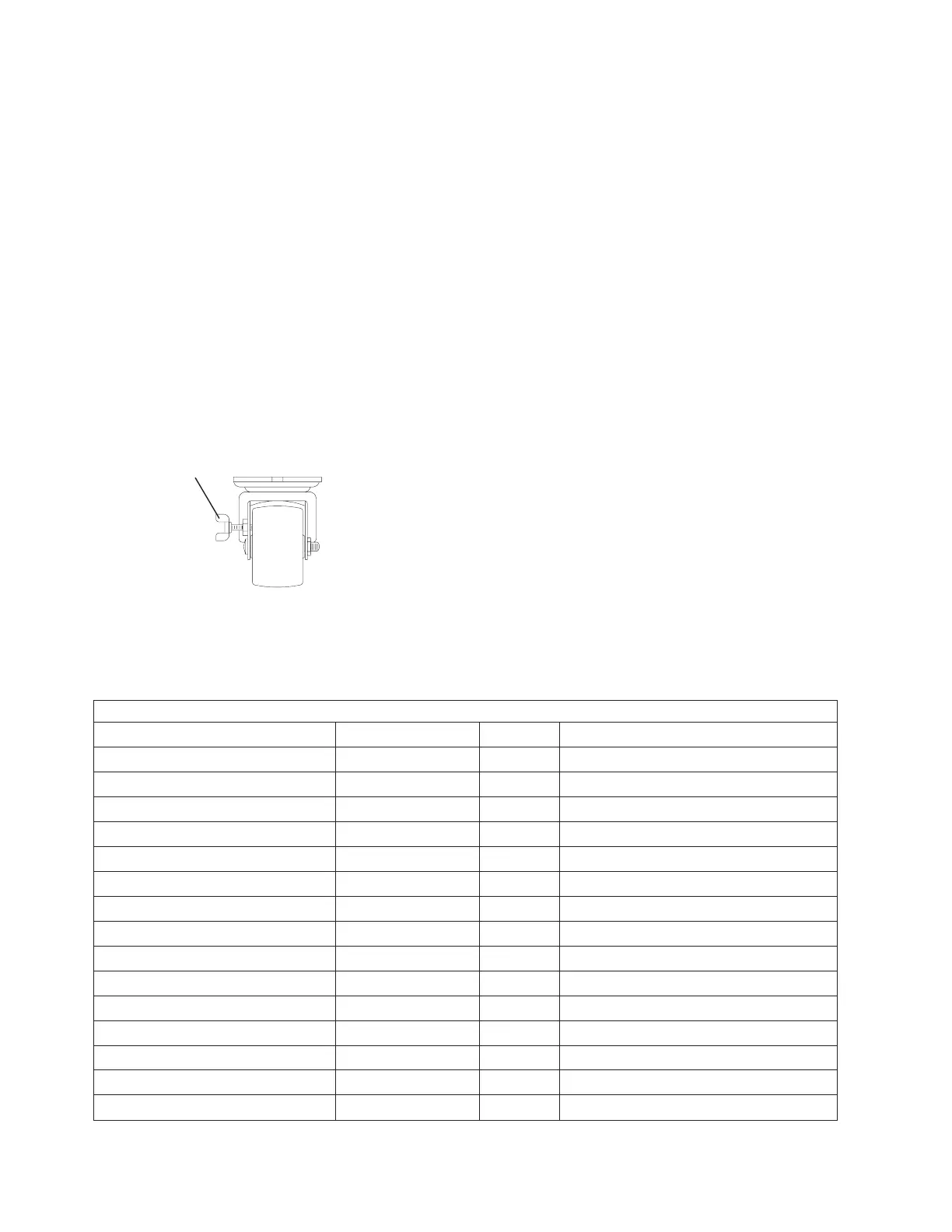

3. Lock each caster wheel by tightening the thumbscrew on the caster.
Thumbscrew
Installing the Frame Kit: The following tables show the parts required for each of the tie-down kits (a
non-raised floor, short-raised floor, and a long-raised floor).
Rack Tie-Down Kits:
11P4759 Frame tie-down Kit (Non-Raised Floor) (RPQ 8A1183)
Item Part Number Qty Description
Item 3 in illustration on page 186. 11P3527 2 Shipping bar (lower)
Item 5 in illustration on page 186. 11P3529 4 Hinge plate
Item 8 in illustration on page 186. 11P3530 2 Latch plate
Item 6 in illustration on page 186. 11P3531 2 EQ support
Item 2 in illustration on page 186. 11P3532 2 Shipping bar (upper)
Item 7 in illustration on page 186. 76X4687 2 Latch bolt
Item 1 in illustration on page 186. 1624804 20 Screw (hex flange, 20mm, long)
Item 9 in illustration on page 186. 1621546 8 Screw (hex, 25mm, long, hinge)
Item 10 in illustration on page 186. 1622307 8 Washer (M8, hinge)
Item 1 in illustration on page 187. 11P3528 2 Plate lock-down
Item 2 in illustration on page 187. 05N6345 4 Spacer
Item 4 in illustration on page 187. 05N6344 4 Bushing
Item 5 in illustration on page 187. 21L4309 4 Washer
Item 3 in illustration on page 187. 0130985 4 Washer
Item 6 in illustration on page 187. 05N6346 4 Bolt
