2101 Model 100 Service Clearances
Note: For more information, see the following Website: http://www.ibm.com/storage/.
Note: Rack units are large and heavy, and they are not easily moved. Because maintenance activities

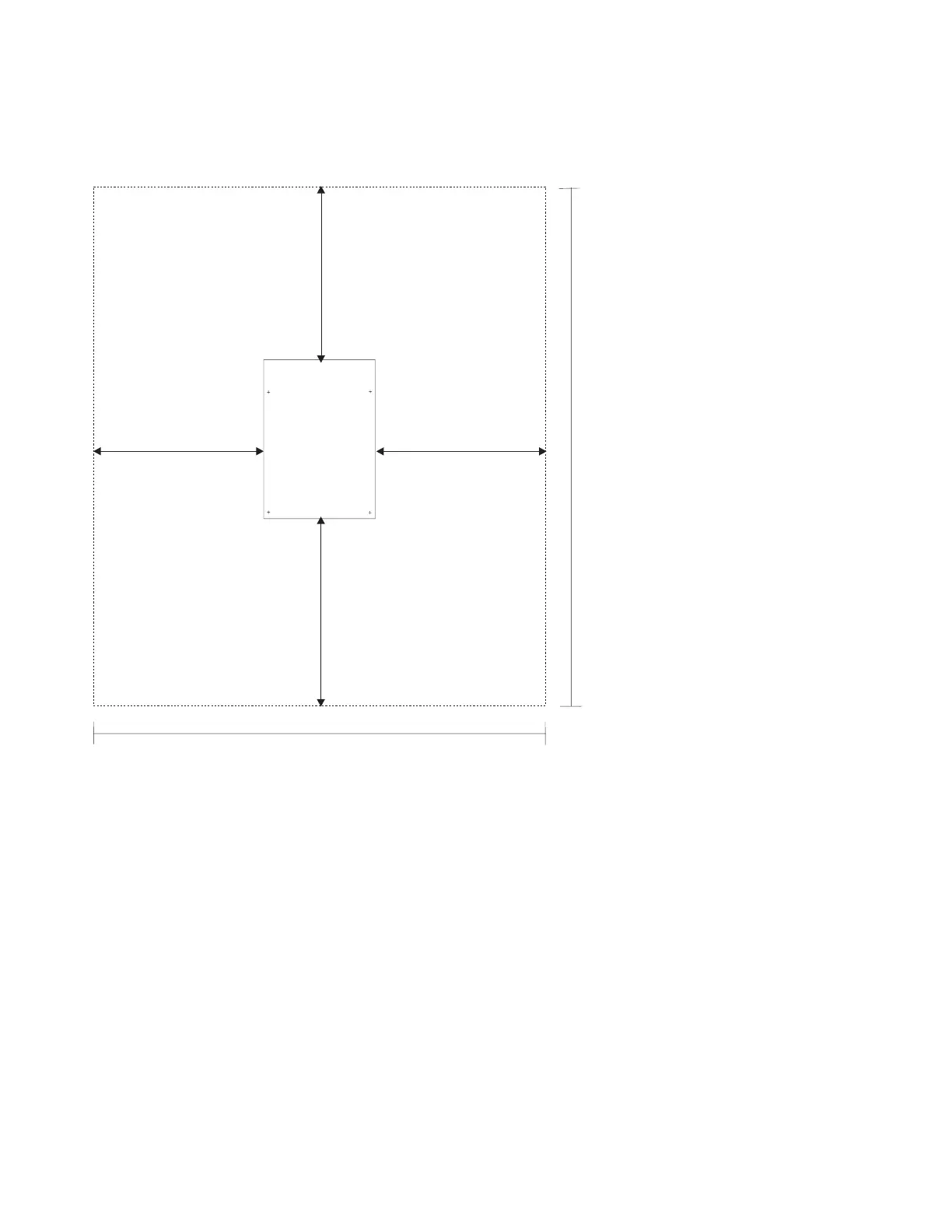

require access at both the front and back, extra room must be allowed. The illustration shows the
minimum space required.
For multiple racks placed side by side, the left and right clearances apply only to the leftmost and
rightmost rack. For five to six racks placed side by side, the left and right clearances need to be increased
to 1525 mm (60 in). Having more than six racks side by side is not recommended.
Not to scale
Not to scale
See notes
below
See notes
below
Front
915 mm (36 in)
Rear
915 mm (36 in)
Side
915 mm
(36 in)
Side
915 mm
(36 in)
Rack
230 Site and Hardware Planning Information
