v a graphics terminal connected to a graphics display adapter with keyboard and mouse connections
directly to the keyboard and mouse ports on the server
A cluster administration workstation is connected through a LAN connection.
This section illustrates the cabling requirements for these connections.

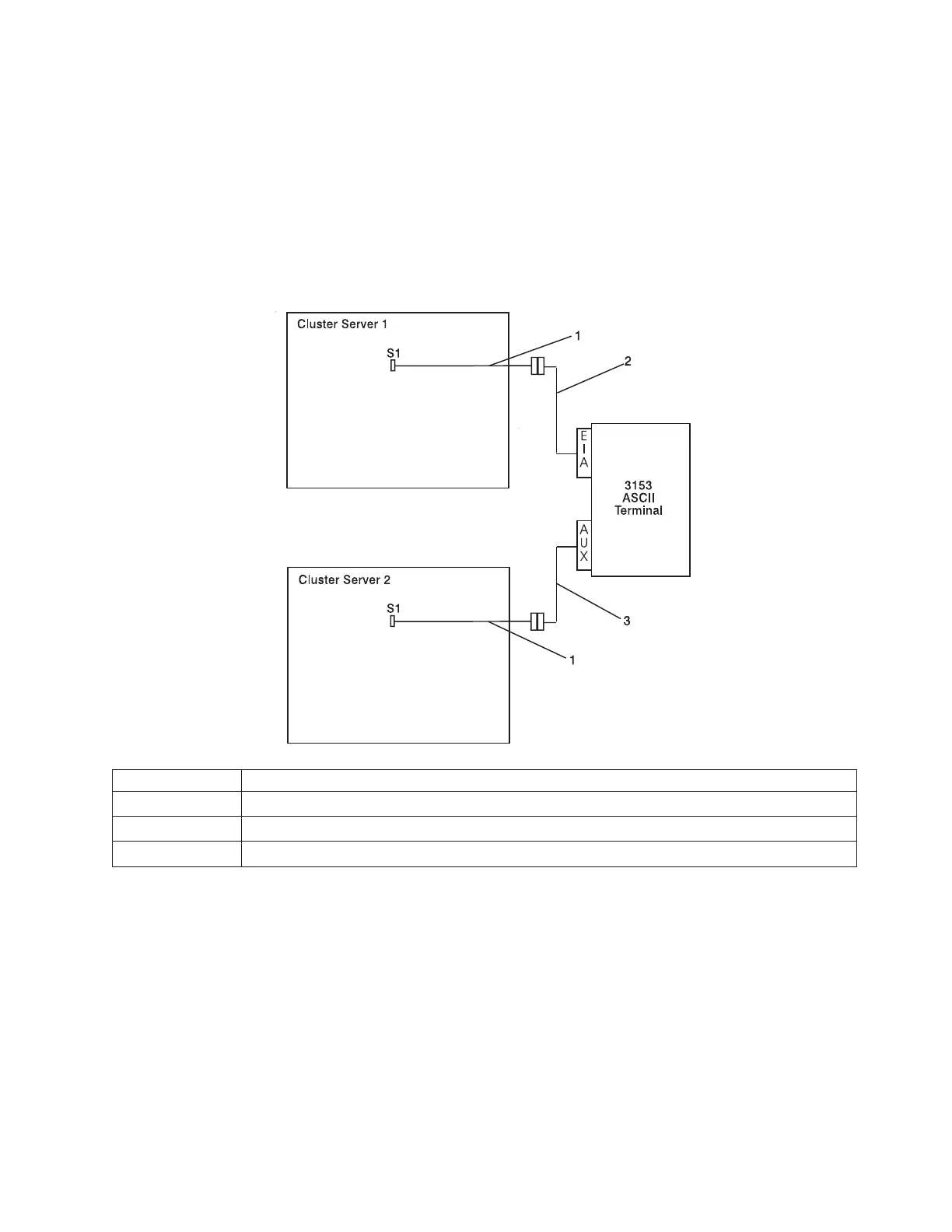

HA Cluster Server with ASCII System Console
A single ASCII terminal connected to both servers in the cluster allows a system administrator or the
service representative to work a single server without disrupting the operation of the cluster.
Index Description
1 Cable adapter DB9f--DB25M (9 pin to 25 pin) (PN 40H6328)
2 Serial cable with internal null modem (PN 12H1204)
3 Serial cable without internal null modem (PN 88G0093)
Chapter 13. High Availability Information 369
