1 Loader motor worm gear 3 Take up reel motor
2 Outer guide rail WARNING: DO NOT TOUCH 4 Supply reel motor
3. Turn the supply reel (4 in Figure 1) clockwise.
4. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape guiding rollers. turn
the supply reel (4 in Figure 1) 10 turns. Ensure that you do not stretch the tape.
5. Reassemble the drive.
6. Reinstall the drive in the enclosure.
7. Allow the drive to perform mid-tape recovery. This takes several minutes. When this activity completes, push the Unload
button to eject the cartridge.
8. Test the drive (see Function Code 1: Run Drive Diagnostics and Function Code 1: Run Drive Diagnostics in the 7226
Model 1U3 Storage Device Enclosure Setup and Operator Guide) to determine if it should be replaced.
No Apparent Failure or Damage to Tape
Use the following procedure to remove a tape cartridge when there is no apparent visible damage to the tape cartridge:
1. Set the drive on its left side with the head and tape path facing up.

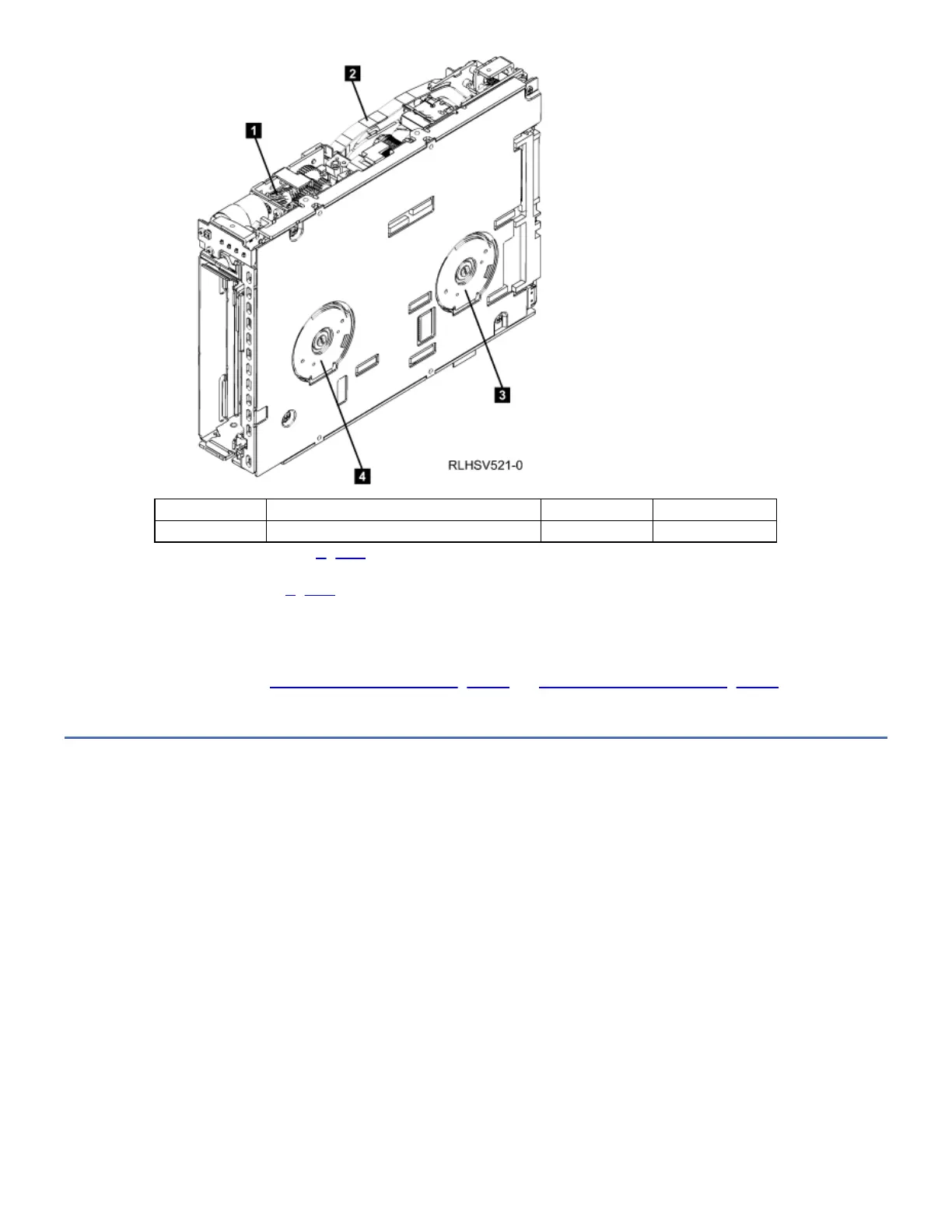

Figure 1. Rewinding the Tape onto the Supply Wheel
To Next Page
