Activity Cleaning Media Fault Drive Fault Ready/Activity
(amber)
(amber)
(amber) (green)
Flashing Off Off Flashing
Tape diagnostics test passed, tape ejected Off Off Off Flashing
After data cartridge ejects, see Data cartridge ejected.
Tape diagnostics test failed, tape ejected On On On Flashing
After data cartridge ejects, see Data cartridge ejected.
Notes:
1. A solid amber Cleaning LED indicates that the drive needs cleaning. The drive will continue to function but needs
cleaning as soon as possible. Do not ignore the indicator by cycling the power to turn it off.
2. The media has reached the end of its useful life and should be replaced. Any data should be copied to a new cartridge
as soon as possible.
3. Flashing in this state indicates a problem with write/read performance.
4. An unrecoverable drive failure is an error condition that results in the drive not being able to function unless initiator,
operator, or service intervention is applied. An unrecoverable drive failure is usually the result of a hardware error
condition. One of the following actions is needed to clear the flashing fault LED:
Hard SCSI reset
Cartridge emergency eject
Power cycle
Retry firmware download
An unrecoverable media failure is usually the result of a defective cartridge, media, or cartridge state, and will require the
drive to eject the cartridge (if possible) to clear the On LED.
DAT 160 Drive Connectors

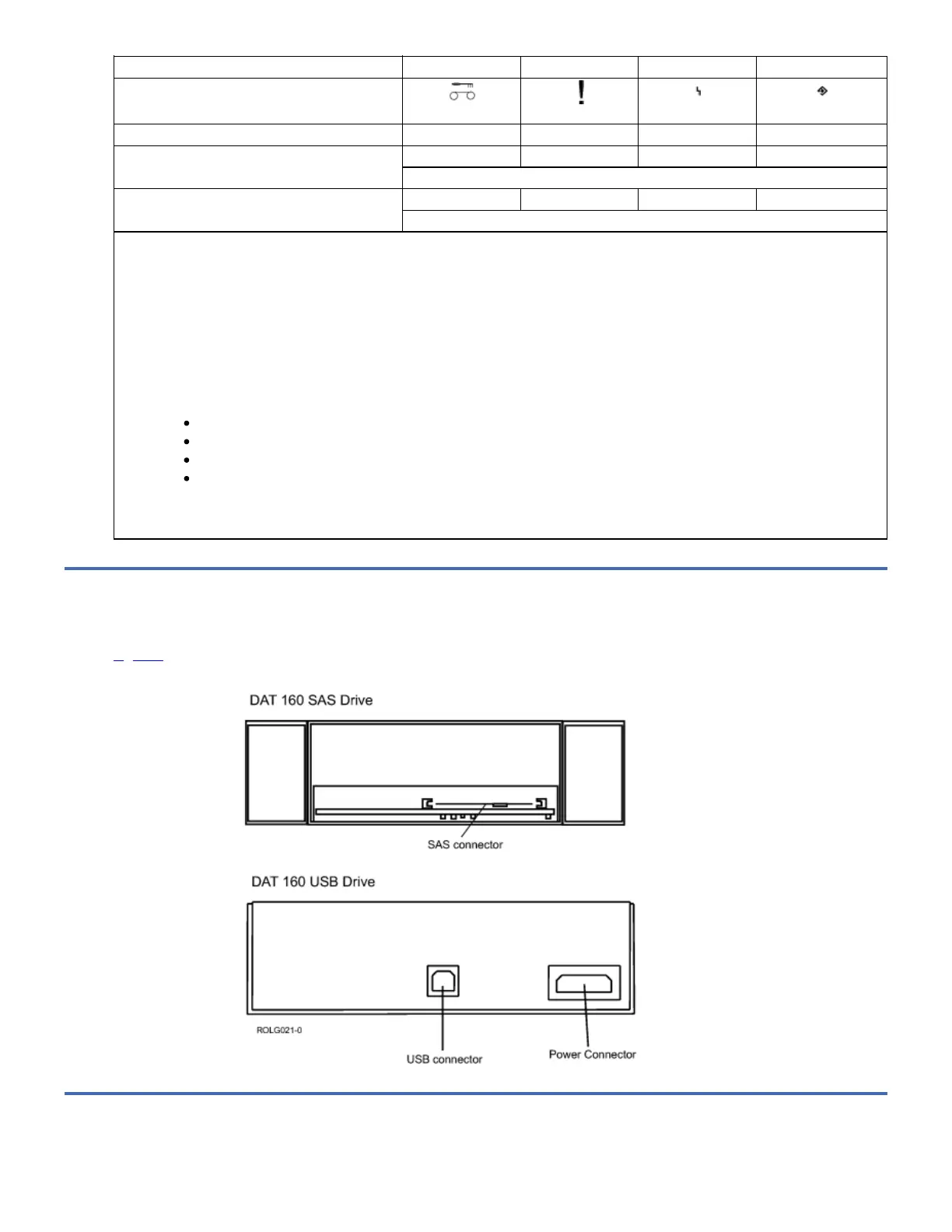

Figure 1 shows the locations of the connections on the rear of the DAT 160 Drives.
Figure 1. Connector Location on the DAT 160 SAS Drive
Tape Cartridge Labels
