correct position.
Note: Be sure to keep tension on the tape as the LBA is drawn into the cartridge.
6. Rotate the loader intermediate gear (1 in Figure 3) clockwise as viewed from the front of the drive until it stops. This
releases the LBA leader pin.
7. Rotate the threader motor worm gear (3 in Figure 2) counterclockwise until the leader block is in front of the
Read/Write head. This moves the LBA out of the cartridge.

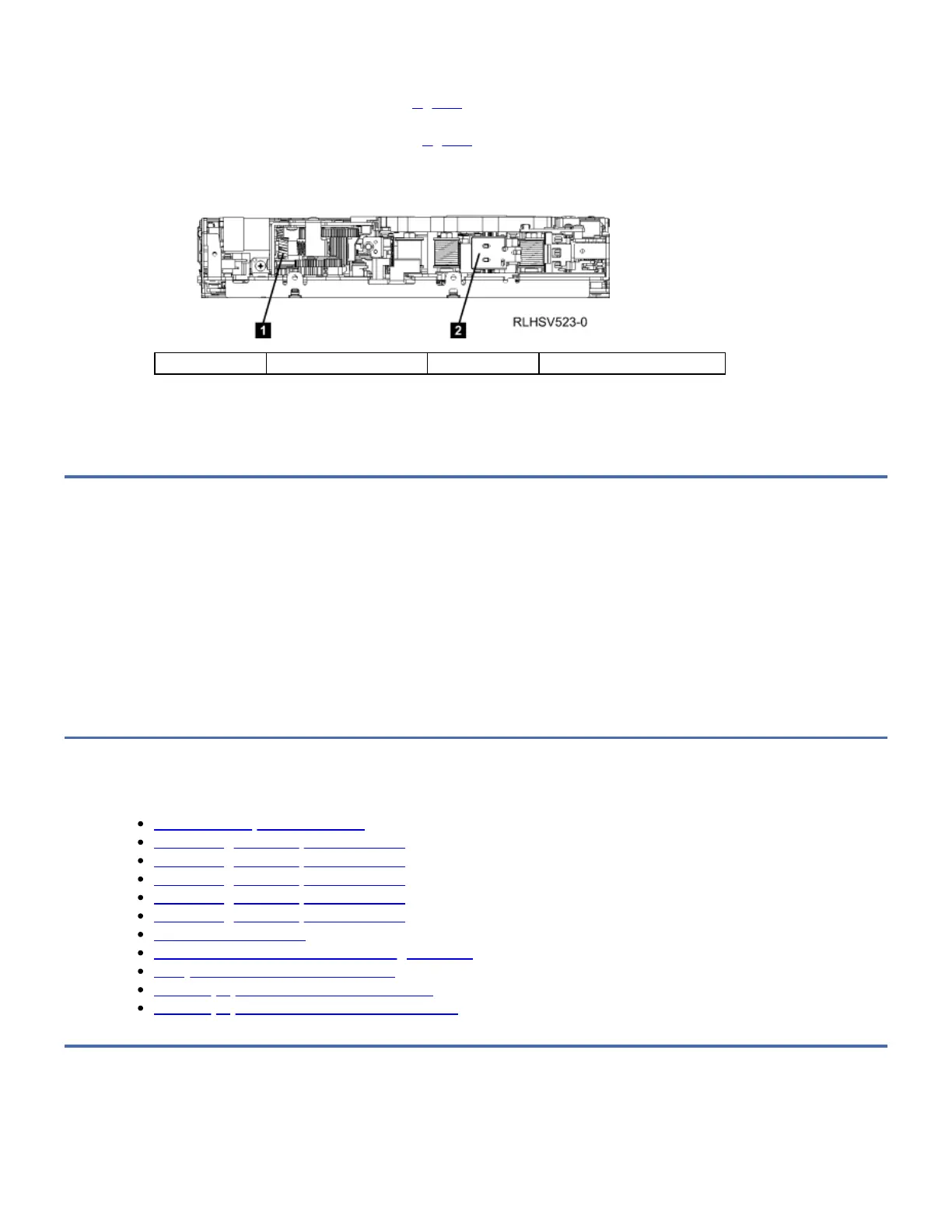

Figure 3. LTO Tape Drive with the Cover Removed
1 Loader motor worm gear 2 Leader block assembly (LBA)
8. Rotate the loader motor worm gear counterclockwise until it stops.
9. Remove the cartridge from the cartridge loader tray.
10. Reassemble the drive.
11. Install a new drive in the enclosure and return the failed drive.
Manually Removing a DVD Disc from the Drive
If a power failure or a DVD-RAM drive failure prevents the DVD disc tray from ejecting, the disc can be removed manually.
To manually remove the DVD disc:
1. Turn off the power to the 7226 Storage Enclosure.
2. Insert the straightened end of a paper clip into the emergency eject hole until you feel some resistance.
3. Continue to push in the paper clip while you pull out the tray with your fingernail.
4. Pull the tray completely open and remove the disc. It is usual for the tray to make a clicking sound while you are pulling
it open.
Managing
The DAT 160 Tape Drive Features
The Half High LTO-5 Tape Drive Feature
The Half High LTO-6 Tape Drive Feature
The Half High LTO-7 Tape Drive Feature
The Half High LTO-8 Tape Drive Feature
The Half High LTO-9 Tape Drive Feature
The DVD Drive Features
The RDX Removable Hard Disk Cartridge Features
The Quad External SAS Cable Feature
The YE1 (2X) miniSAS to miniSAS-HD Cable
The YE1 (2X) miniSAS-HD to miniSAS-HD Cable
The DAT 160 Tape Drive Features
Important: The DAT 160 Tape Drive Features are no longer available.
