The YE1 (2X) miniSAS-HD to miniSAS-HD Cable
The YE1 (2X) miniSAS-HD to miniSAS-HD Cable (Feature Code #AGKC) allows the user to attach up to two 7226 SAS HD drive
devices to just one system host bus adapter port. This external cable option is recommended for IBM POWER System
customers who have a limited number of SAS HD host bus adapters available. It is 3 meters long.
7226 SAS HD drive features attach to an IBM POWER System SAS HD port using an external SAS HD cable that is provided with
each SAS HD drive feature ordered. Up to two 7226 SAS HD drive devices may be attached to a single SAS HD port using a one-
to-two YE1 (2X) miniSAS-HD to miniSAS-HD Cable (Feature Code #AGKC). The two 7226 SAS HD drive devices may be
installed in more than one 7226 storage enclosure.
System x does not support 7226 attach through the YE1 (2X) miniSAS-HD to miniSAS-HD Cable.
Feature Kit Contents
Feature Kit Contents
FC AGKC contains one YE1 (2X) miniSAS-HD to miniSAS-HD Cable.
Table 1. Feature Code AGKC Contents
Description Part Number Quantity
3M YE1 (2X) miniSAS-HD to miniSAS-HD Cable 01AF503 1

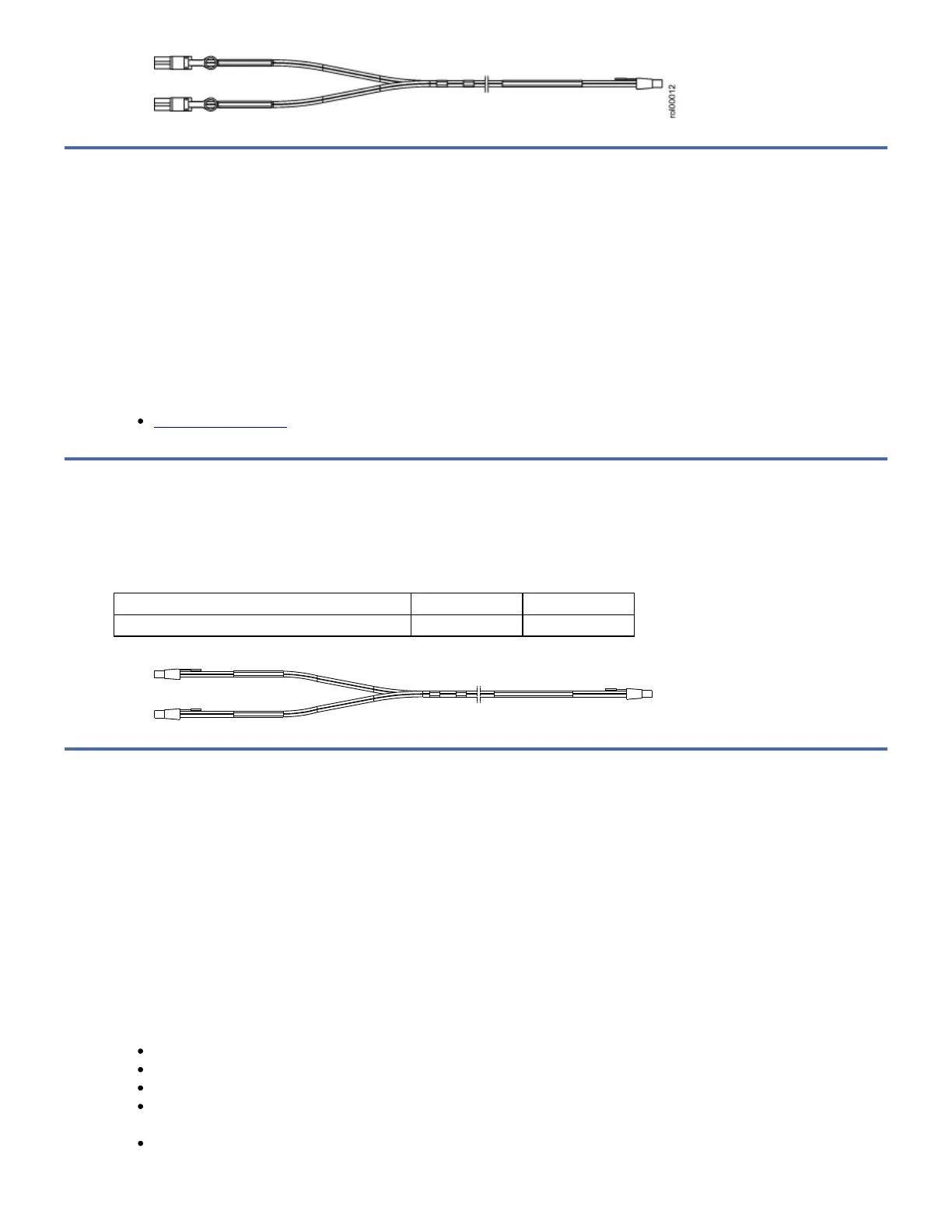

Figure 1. Contents of FC AGKC
Troubleshooting
DANGER
To prevent a possible shock from touching two surfaces with different protective ground (earth), use one hand, when possible,
to connect or disconnect signal cables. (D001)
DANGER
An electrical outlet that is not correctly wired could place hazardous voltage on the metal parts of the system or the devices
that attach to the system. It is the responsibility of the customer to ensure that the outlet is correctly wired and grounded to
prevent an electrical shock. (D004)
DANGER
Observe the following precautions when working on or around your IT rack system:
Heavy equipment—personal injury or equipment damage might result if mishandled.
Always lower the leveling pads on the rack cabinet.
Always install stabilizer brackets on the rack cabinet.
To avoid hazardous conditions due to uneven mechanical loading, always install the heaviest devices in the bottom of
the rack cabinet. Always install servers and optional devices starting from the bottom of the rack cabinet.
Rack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top of rack-mounted
devices.
