Repair Information 4-17
Adapter Cards
NOTE:
1. Before removing an adapter card, note the location of the adapter
card and any cables. When removing an adapter card, install the
replacement card in the same slot as the one you removed.
2. If necessary, remove cards from the adjacent slots of the failed
card.
•
Position the system unit such that the card is accessible to you.
•
If the adapter card has cables, disconnect them. Be sure to take note
where those cables are connected. You will need to reconnect those
cables when you reinstall the card.
•
Remove the adapter card screw.
•
Carefully pull the adapter card straight out of the slot so that the card does
not bend.

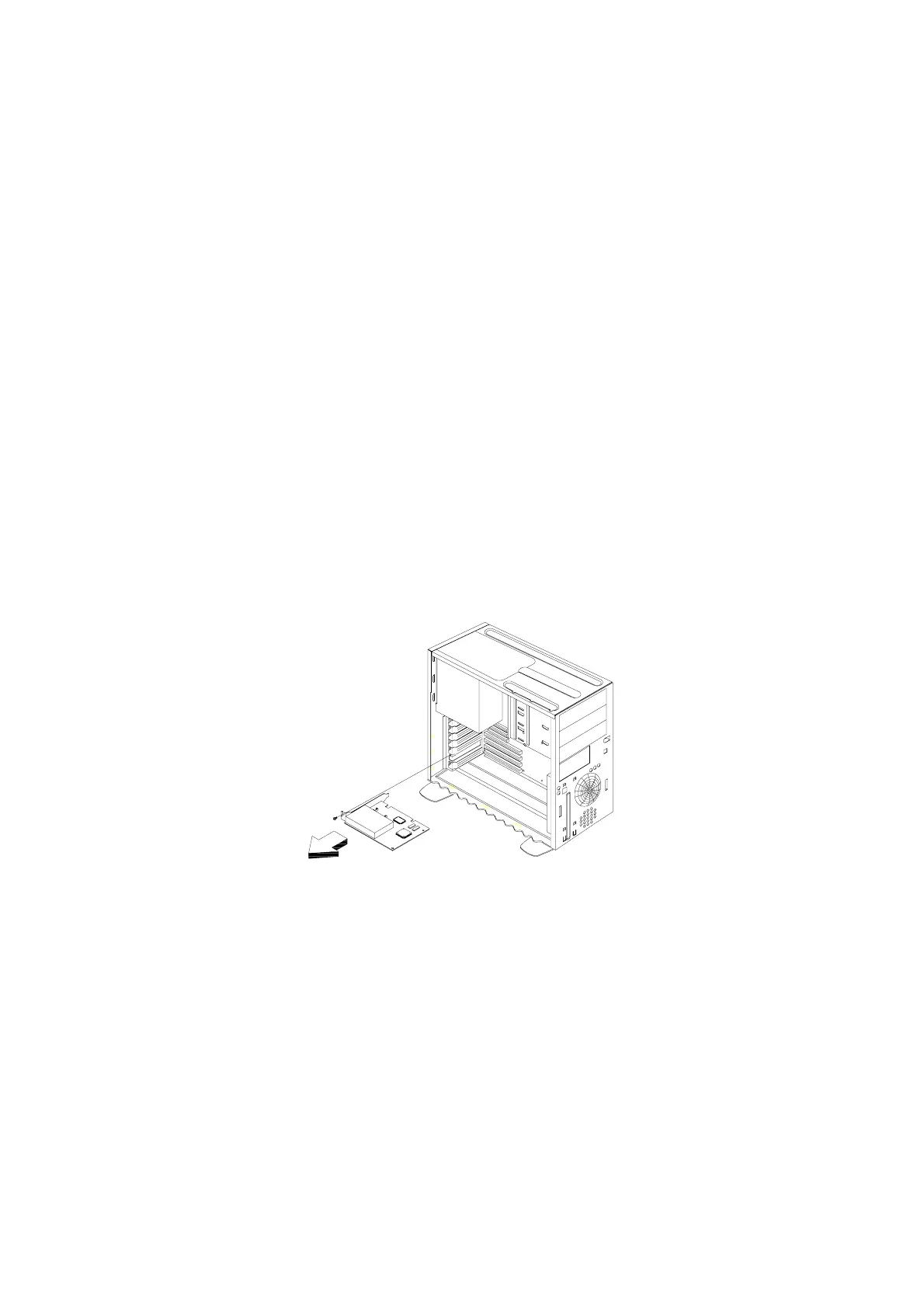

Figure 4- 16 Remove Adapter Cards
To Next Page
