System Board (2137 only)
•
Remove all adapter cards.
•
Disconnect all cables connected to the system board.
•
Remove the screws securing the system board to the chassis.
•
Lift the system board to remove from chassis.
•
Remove memory (DIMM) if applicable.
•
Remove processor if necessary.

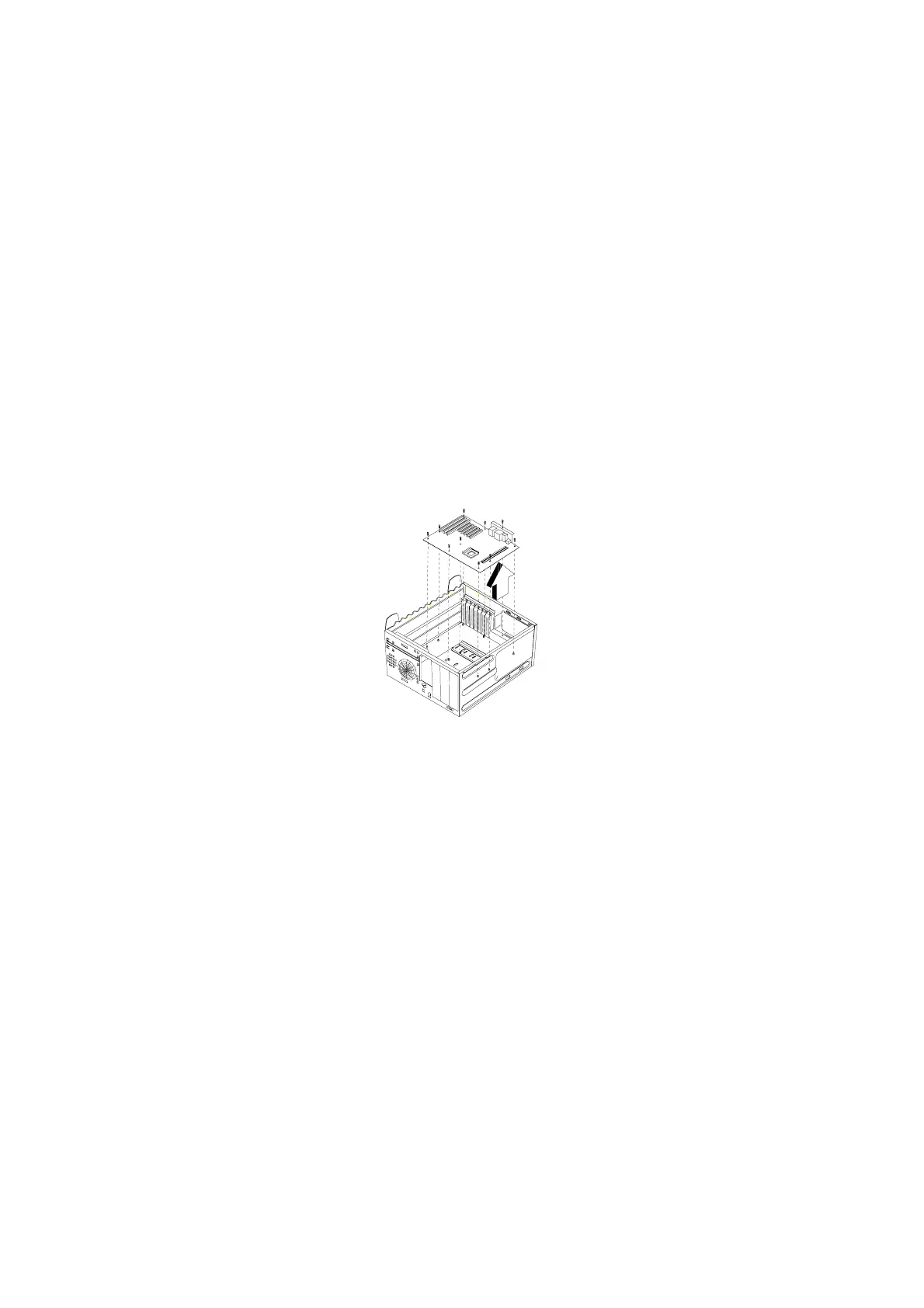

Figure 4- 32 Remove the system board
•
Detach the I/O port bracket from the system board.
