Parts/Test Point Locations 5-21
3.5-In. Hard Disk Drive Jumper Locations

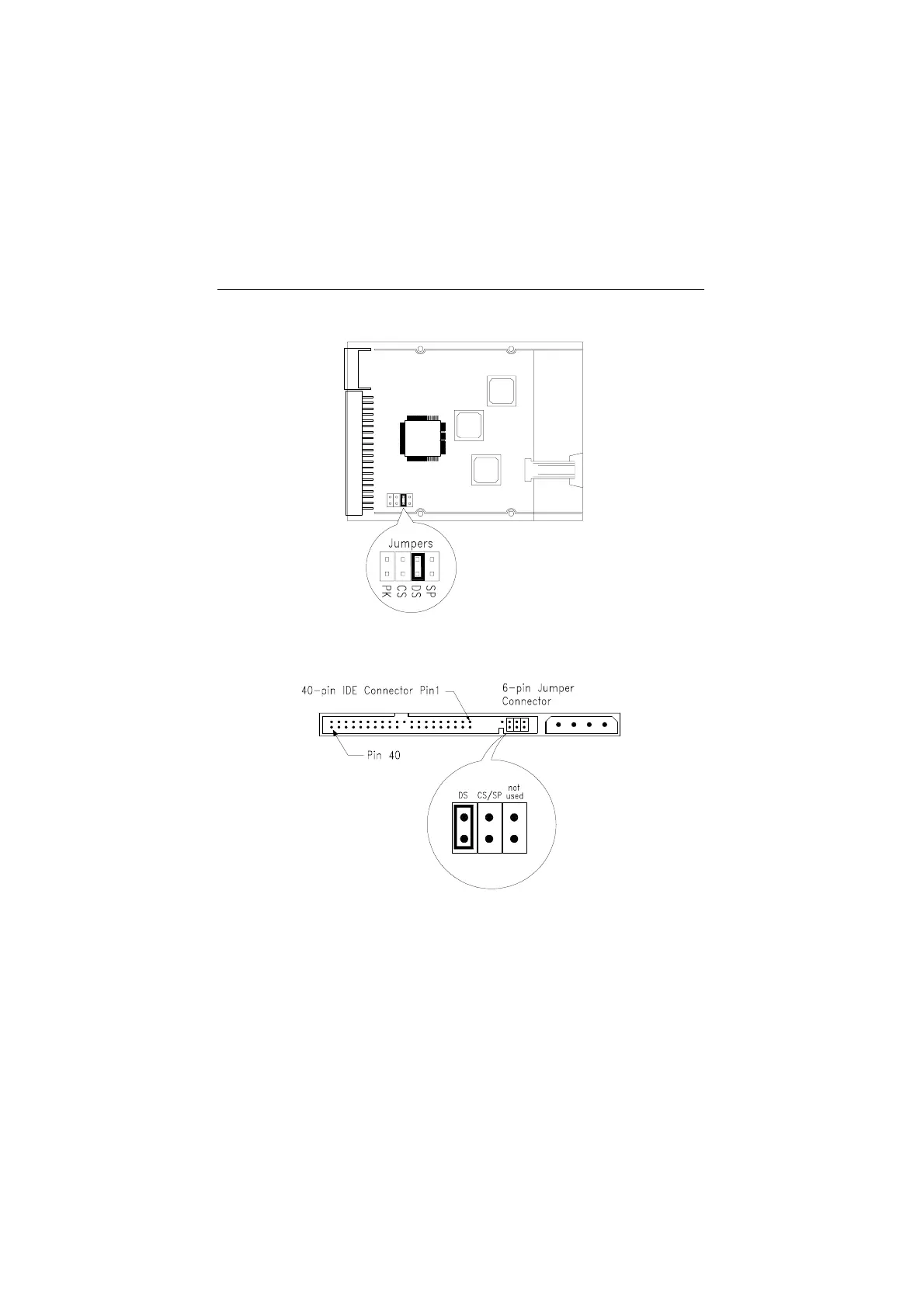

Figure 5- 10 3.5-In. Hard Disk (Quantum Fireball TM Series) Jumper
Locations
Figure 5- 11 3.5-in Hard Disk (Quantum Fireball ST Series) Jumper
Locations
