7-16

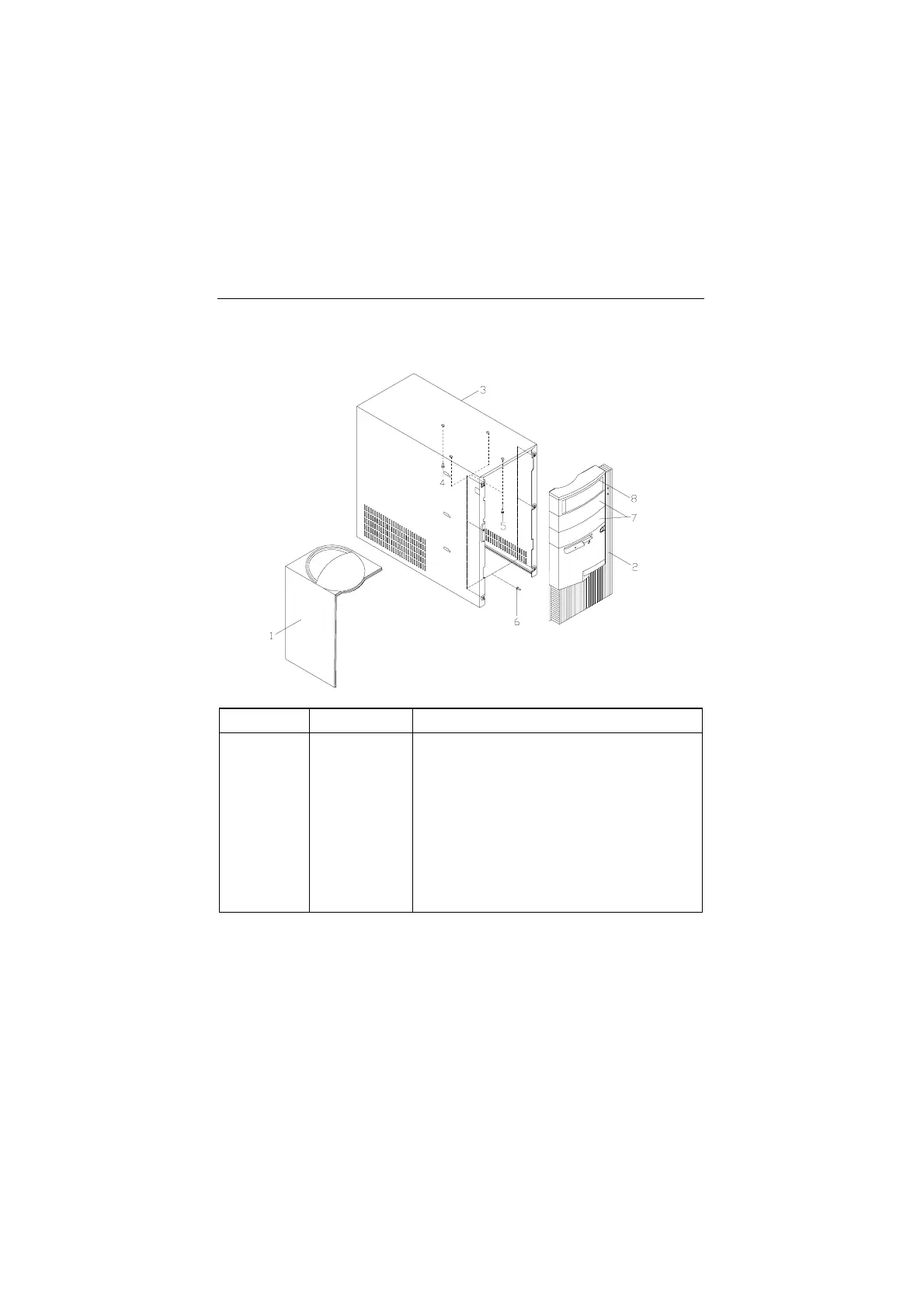

Assembly 1: Machine Type 2138 System Unit -
Exterior
Asm-Index FRU Number Description
1-1 02K2324 Top/Side Panel
1-2 02K2325 Front Panel
1-3 02K2326 Top Cover
1-4 02K2327 Screw for Top/Side Panel
1-5 02K2329 Screw for Top/Side Panel
1-6 02K2329 Screw for Front Panel
1-7 02K2330 Drive Bay Panel - 2nd & 3rd 5.25-in. Drive
1-8 02K2331 Drive Bay Panel - 1st 5.25-in. Drive
