Parts/Test Point Locations 5-15

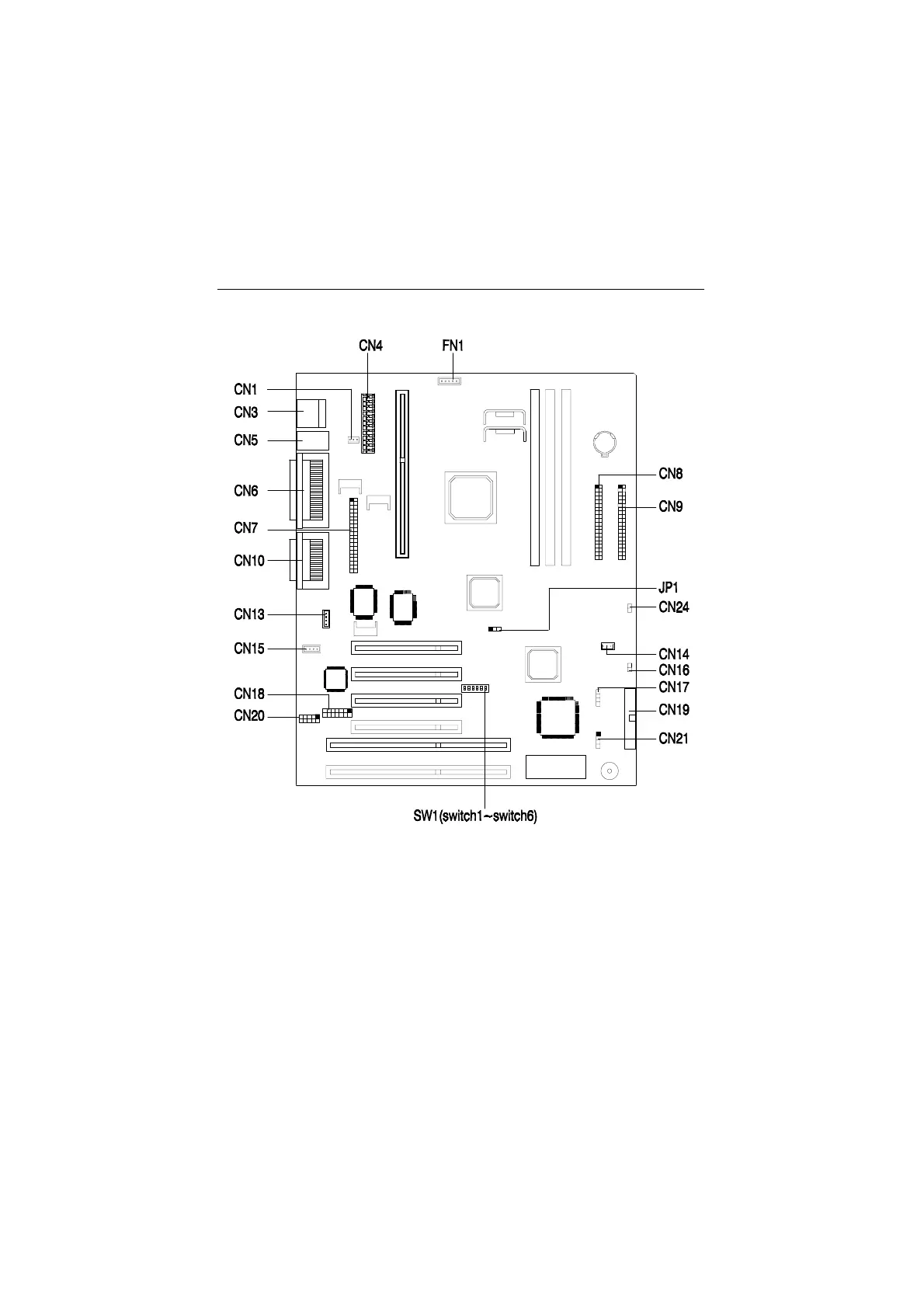

2138 System Board Layout
NOTE:
The blackened pin of a jumper represents pin 1.
Figure 5- 4 2138 System Board Jumper and Connector Locations
