2-40
−
Connect any one of the power connector to system board or drive
as power load for driving up power supply.
−
Reconnect the power cord.
005 - DOES THE POWER SUPPLY FAN RUN? (YES, READ AHEAD. NO,
GO TO STEP 009)
−
With the system powered on and the power supply fan running,
check the voltages of the power supply connectors for the system
board and all drive connectors, as shown in the following figures.

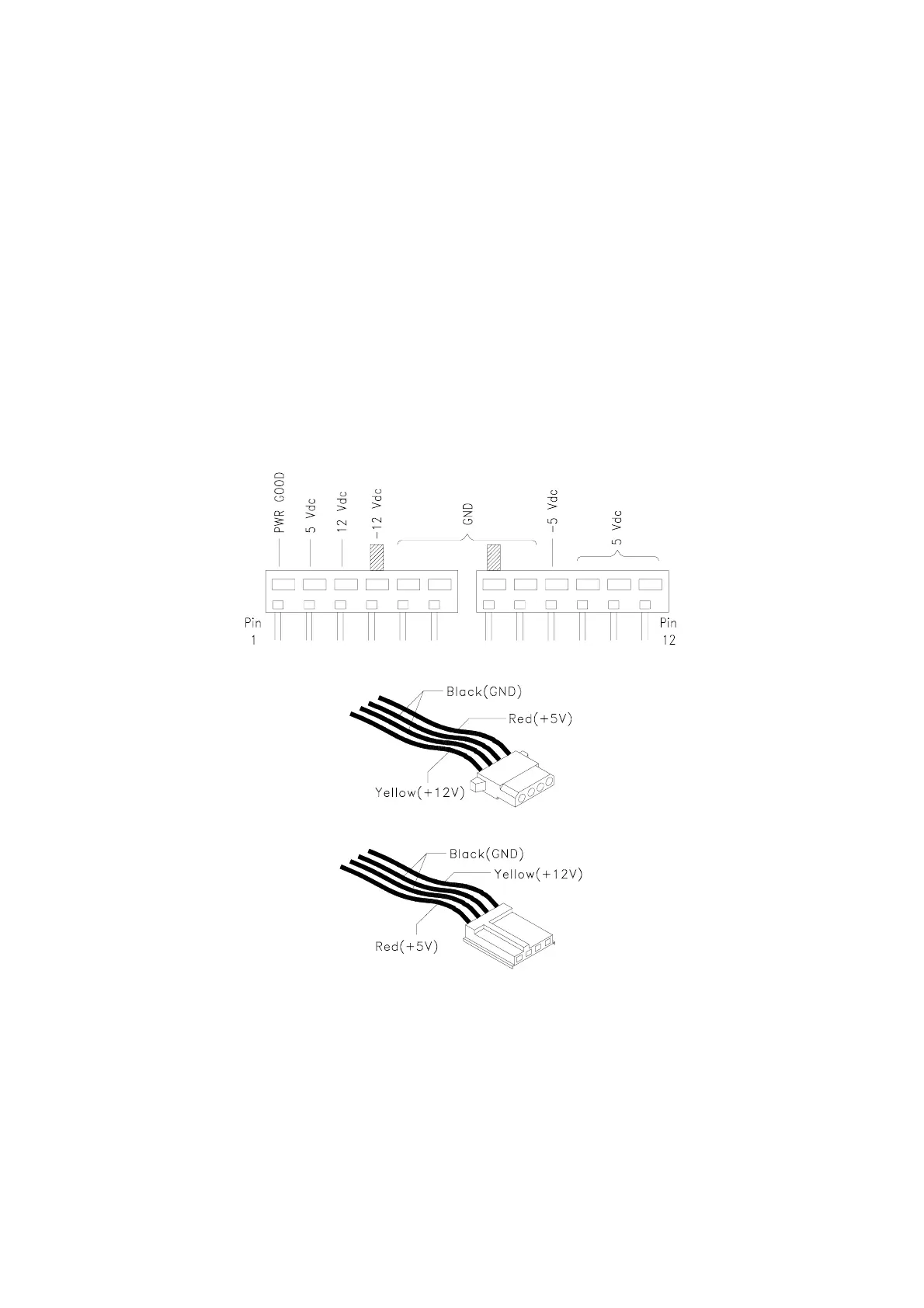

Figure 2- 2 . System Board Power Supply Connectors (Bottom View)
Figure 2- 3 Hard Drive or CD-ROM End of Power Cable
Figure 2- 4 3.5-In. Diskette Drive End of Power Cable
