IBM InfoPrint 6700 Series User Manual

Media
339

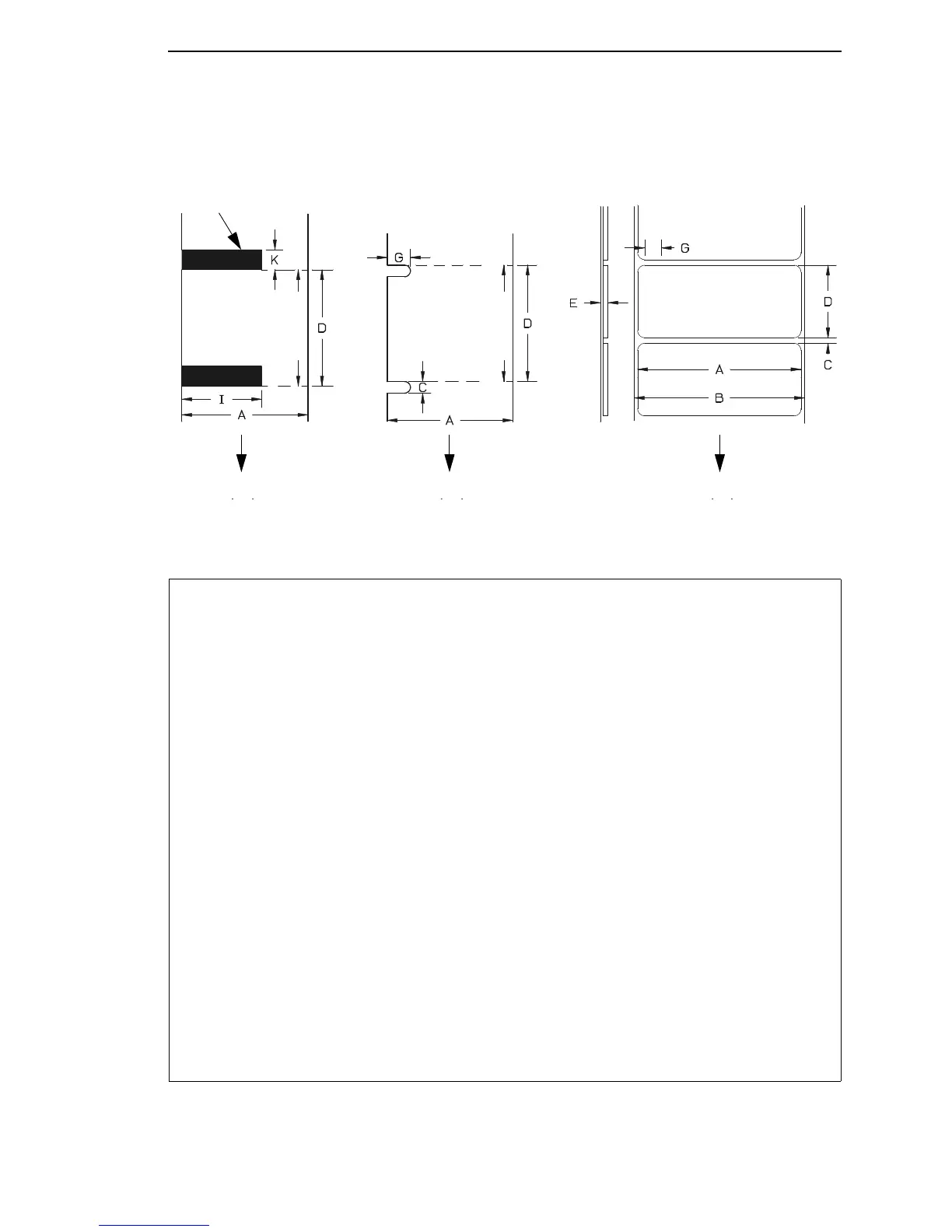

Figure 10. Media Dimensions
I. Tag Specification
(Mark Sensing)
II. Tag Specification
(Gap Sensing)
III. Label Specification
(Gap Sensing)
Direction of Media Motion
Black Mark (on underside)
Direction of Media Motion
Direction of Media Motion
Recommended
Cross Perf
Location
Recommended
Cross Perf
Location
Table 20. Media Specifications
5504-R40 5504-R60 5504-R80
A Label Width Range 0.75 -4.5 in.
19.1-114.3 mm
2.0-6.8 in.
50.8-172.7 mm
3.0-8.75 in.
76.2-222.3 mm
B Backing Width Range 0.75-4.5 in.
19.1-114.3 mm
2.0-6.8 in.
19.1-114.3 mm
3.0-8.75 in.
19.1-114.3 mm
C Min. Gap/Hole/Notch Height 0.10 in.
2.54 mm
0.10 in.
2.54 mm
0.10 in.
2.54 mm
K Min. Refl. Mark Height 0.10 in.
2.54 mm
0.10 in.
2.54 mm
0.10 in.
2.54 mm
I Min Refl. Mark Width 0.5 in.
12.7 mm
0.5 in.
12.7 mm
0.5 in.
12.7 mm
E Media Thickness Range .0025-.010 in.
.0635-.254 mm
.0025-.010 in.
.0635-.254 mm
.0025-.010 in.
.0635-.254 mm
G Width of Inter-label gap/hole 0.25-0.50 in.
6.35-12.7 mm
0.25-0.50 in.
6.35-12.7 mm
0.25-0.50 in.
6.35-12.7 mm
D Media Length Range
Continuous/Batch Mode 0.25 in. (6.35mm) - 99 in. (2515mm)
Tear-Off Strip Mode 0.25 in. (6.35mm) - 99 in. (2515mm)
Tear-Off Mode 1 in. minimum (25.4 mm) - 99 in. (2515 mm)
Peel-Off Mode
1 in. minimum (25.4 mm) - 99 in. (2515 mm)
(1)
Cut Mode 1 in. minimum (25.4 mm) - 99 in. (2515 mm)
These figures are approximate and depend upon the active emulation and application.
(1)
1.5 inch with validator support.
