Removing The Media Guide
69
Removing Label Liner from the Rewinder
1. Open the media cover.
2. Open the front door.
3. Tear the liner at the tear bar.
4. Manually rewind the remaining liner onto the rewinder by turning the
rewinder counterclockwise.
5. Turn the release lever on the rewinder clockwise.
6. Slide the roll of label liner off the rewinder and discard.
Removing The Media Guide
Remove the media guide from the front door when using Tear-Off or Tear-Off
Strip media handling, because you will need to tear the label downward
against the tear bar.
1. Open the front door by pulling it upward, then forward.
2. Grasp the upper right corner of the media guide and pry it off of the top of
the front door.
3. After removing the media guide, close the front door.
4. Open the pivoting deck and load paper and ribbon normally (see “Loading
Media And Ribbon” on page 44).

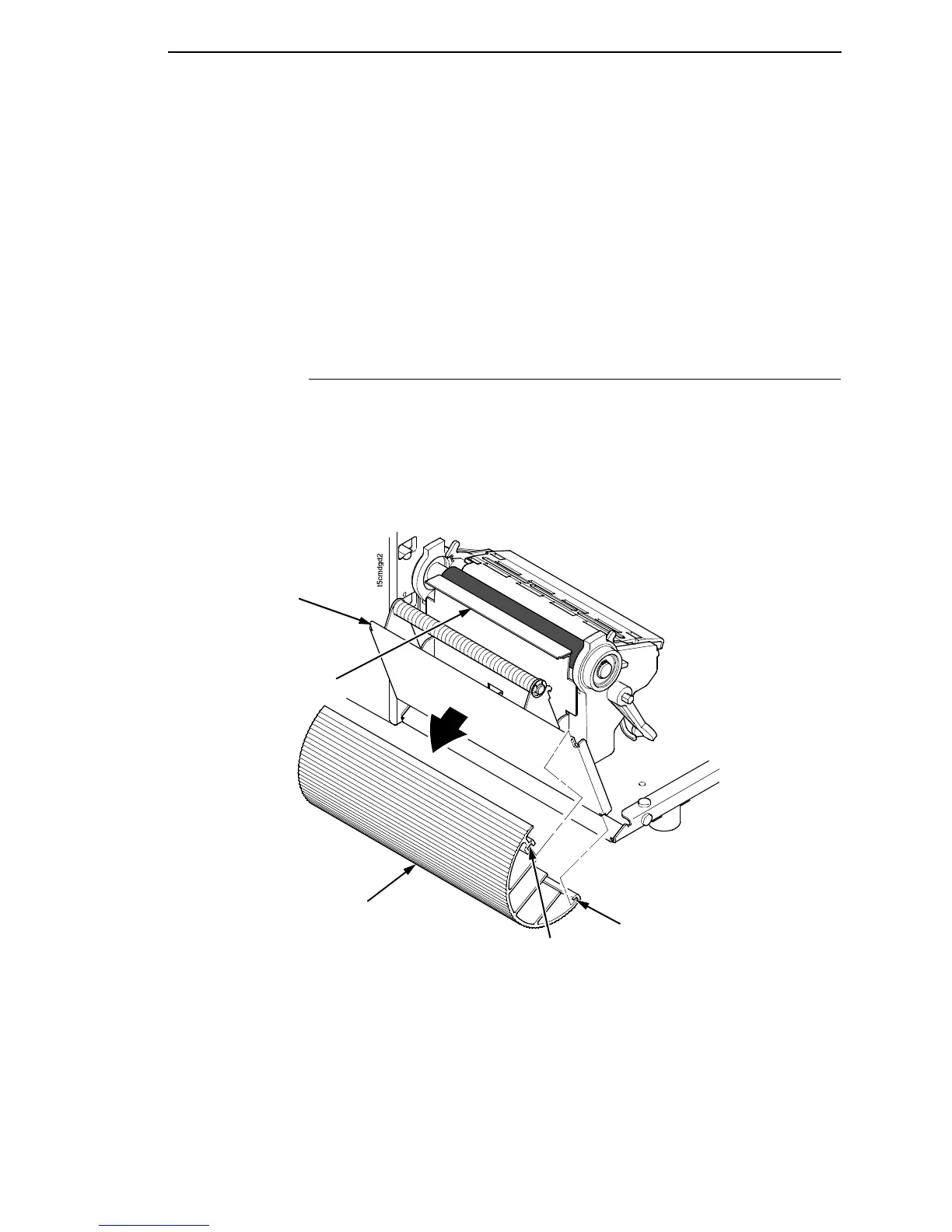

Media
Guide
Groove
Hook
Front Door
Tear Bar
