24. Lower the plastic retaining seat over the adapter bracket and rotate the locking
latch clockwise until it clicks into the locked position. Some full-length cards can be
supported by rotating the blue adapter latch on the right end of the adapter
counterclockwise.

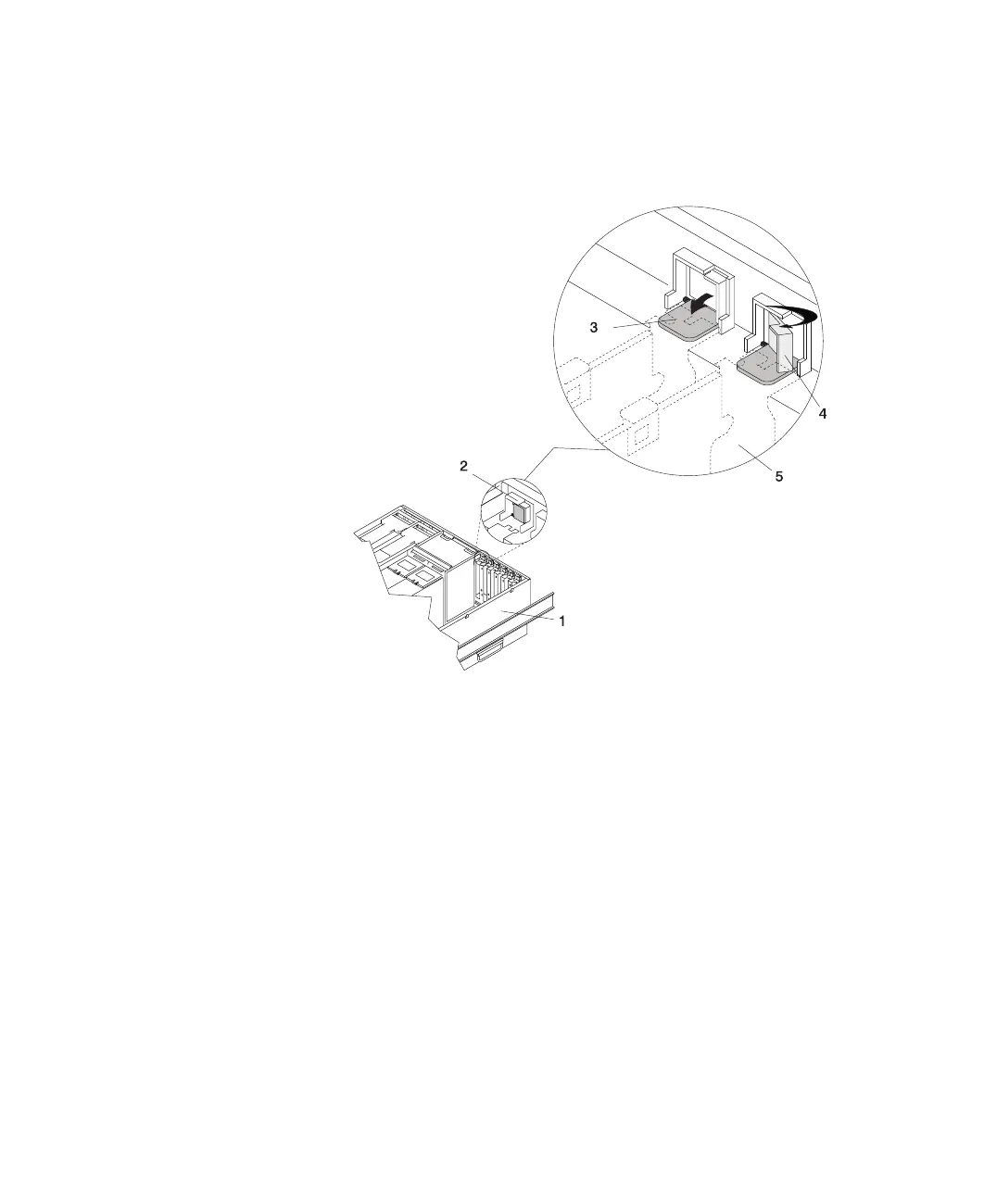

1 System Unit
2 Adapter Retainer Assembly (in the unlocked position)
3 Adapter Retainer Assembly (retainer seat down and the retainer clip in the
unlocked position)
4 Adapter Retainer Assembly (retainer seat down and the retainer clip in the
locked position)
5 PCI Adapter (dotted lines) being locked into position
25. Connect appropriate cables and devices to the adapter.
26. Continue to follow the screen instructions until you receive a message that the
replacement is successful. Successful replacement is indicated by the OK message
displayed next to the Command field at the top of the screen.
27. Press the F3 key to return to the PCI Hot-Plug Manager menu.
Chapter 4. Installing Options 87
