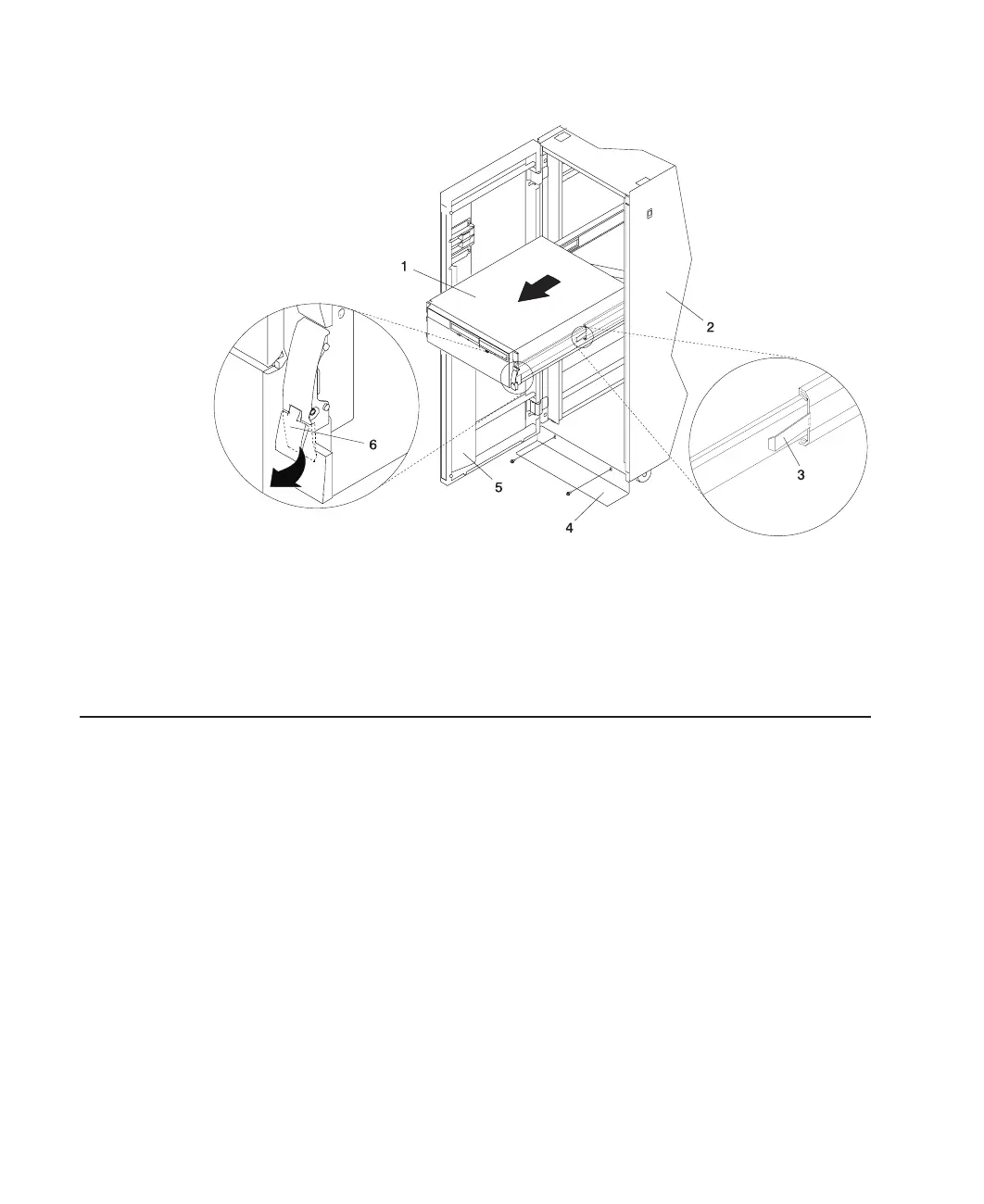

1 Model 6C4 4 Stabilizing Bar
2 19 Inch Rack 5 Front Rack Door
3 Extension Rail Safety Release Tab 6 System Drawer Release Latch
After completing the service actions, return the system to the operating position.
Returning the Model 6C4 to the Operating Position
To return the Model 6C4 to the operating position, do the following:
1. Press in both spring-loaded release tabs, located on each rail. See the illustration
on page 54 for the location of the release tabs.
2. Ensure the system drawer release latches, located on the system drawer, are in the
open position. See the illustration on page 54 for the location of the system release
latches.
3. Push the system drawer straight back into the rack until both release latches on the
system have locked into position.
4. If you removed two thumbscrews from the bezel front, replace them at this time.
5. Close the front rack door.
54 Eserver
pSeries 630 Model 6C4 and Model 6E4 Installation Guide
