Step 19: Connect Any Additional External SCSI Devices
1. Locate the last SCSI device in the chain from the system.
2. Remove the SCSI terminator (1) from the last SCSI device in the chain.
3. Connect the new SCSI cable (2) to the SCSI connector on the last SCSI device.
4. Connect the other end of the SCSI cable (3) to the new SCSI device.
5. Repeat steps 1, 2, and 3 for each additional SCSI device that you attach.
6. Connect the SCSI device terminator (4) to the last SCSI device (5).
7. Refer to the SCSI device documentation to set the SCSI device address. For future
reference, you can record the address in Appendix E, “System Records” on
page 145.

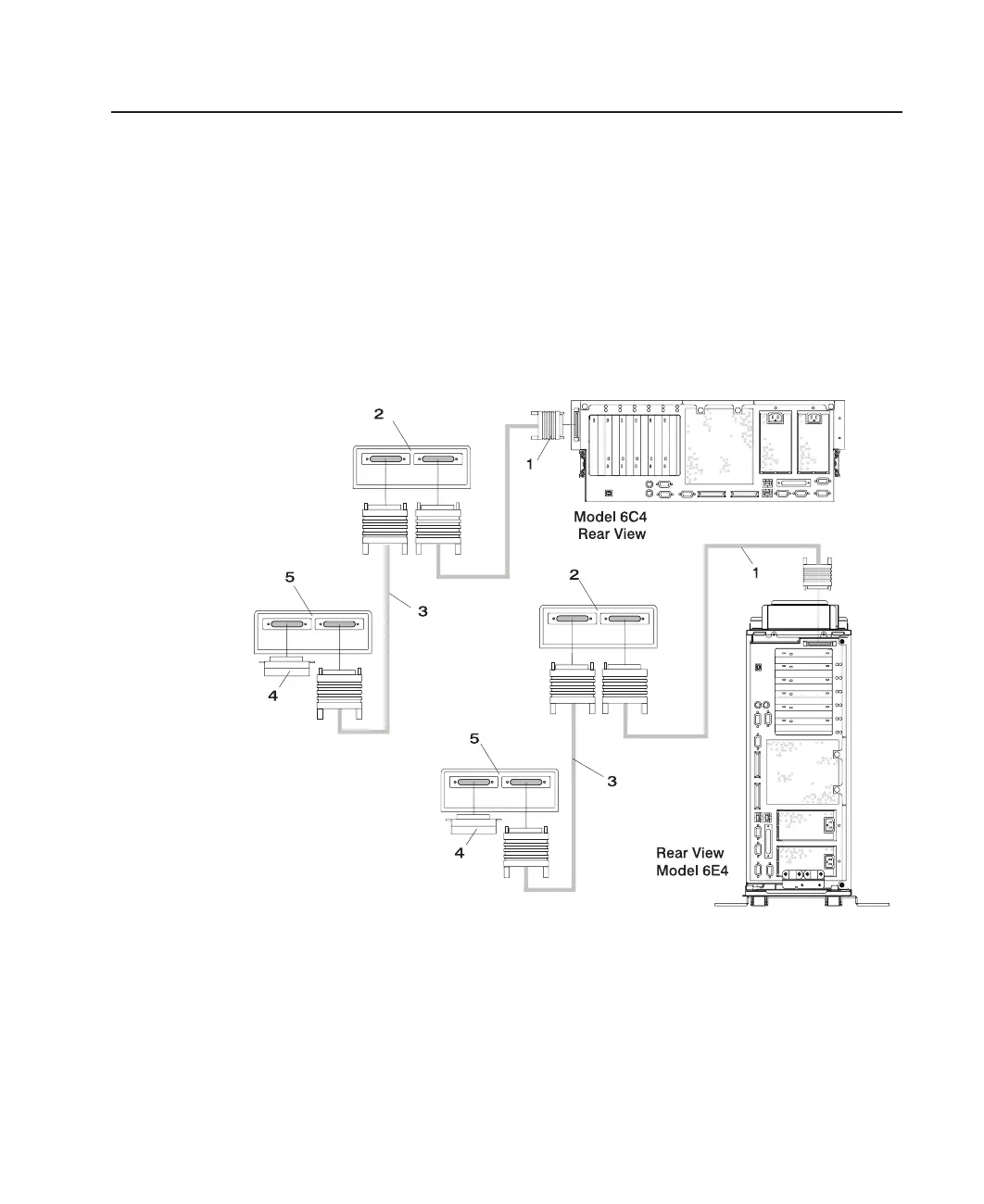

1 System Unit to First SCSI
Device Cable
4 SCSI Terminator
2 First External SCSI Device 5 Last SCSI Device
3 SCSI Cable to Last SCSI
Device
Chapter 2. Setting Up the System
35
