Service Access Cover Removal (Model 6E4)
To remove the service access cover, do the following:
1. Remove the Model 6E4’s outer side cover as described in “Outer Side Cover
Removal (Model 6E4)” on page 56.
2. Loosen the three captive thumbscrews located on the rear of the cover. See the
following illustration for thumbscrew locations.
3. Slide the cover toward the rear of the system drawer. After the front of the service
access cover has cleared the front chassis ledge, lift the cover out of the system.
Attention: For proper cooling and airflow, replace the cover before turning on the
system. Operating the system for extended periods of time (over 30 minutes) with the
cover removed might damage the system components.

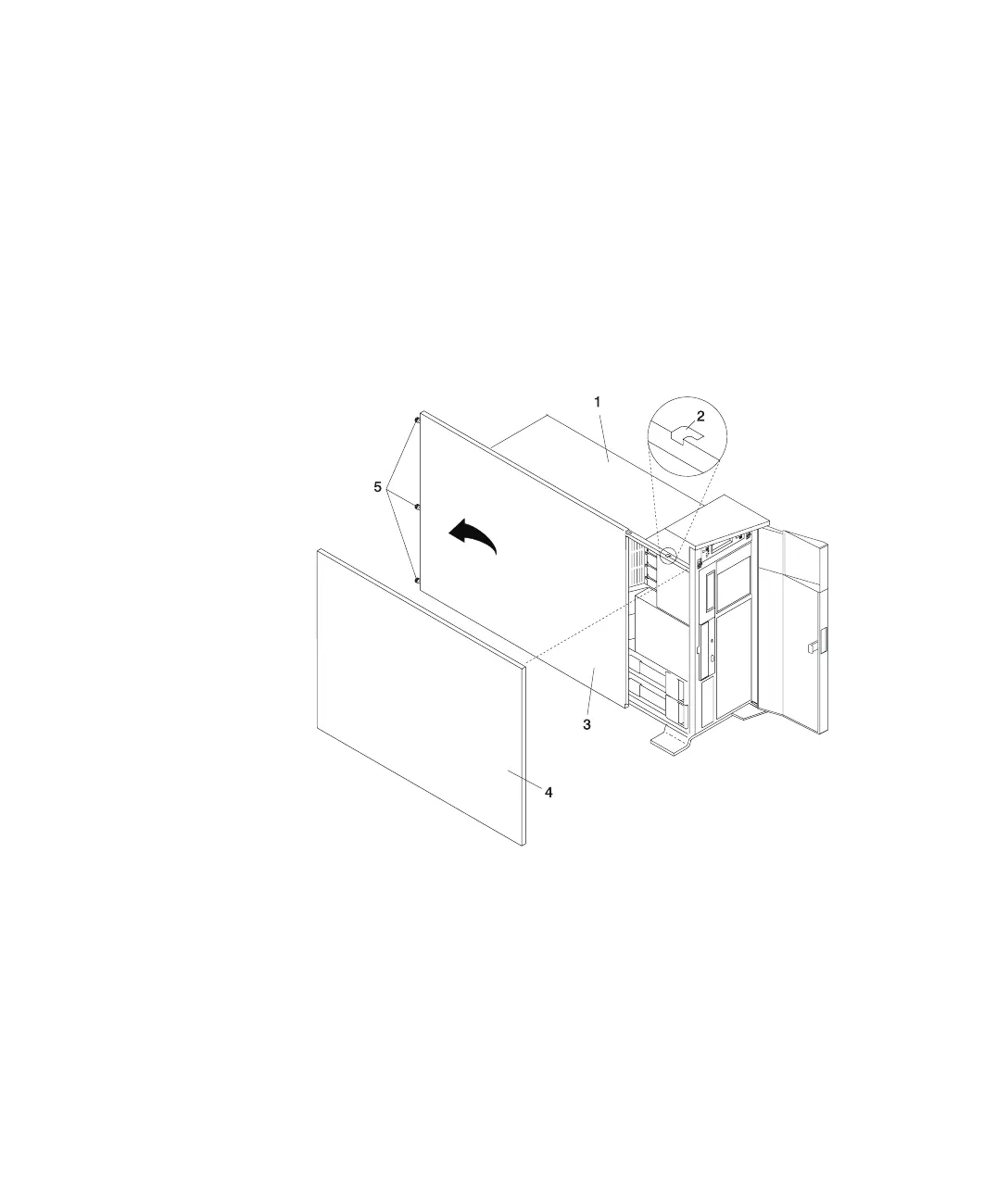

1 Model 6E4 4 Outer Side Cover
2 Service Access Cover Locking Tab 5 Thumbscrews
3 Service Access Cover
Chapter 4. Installing Options
57
