IBM pSeries 630 6C4 Installation Guide

3. Continue with the procedure in “Hot-Swap Fan Assembly Removal” on page 95.

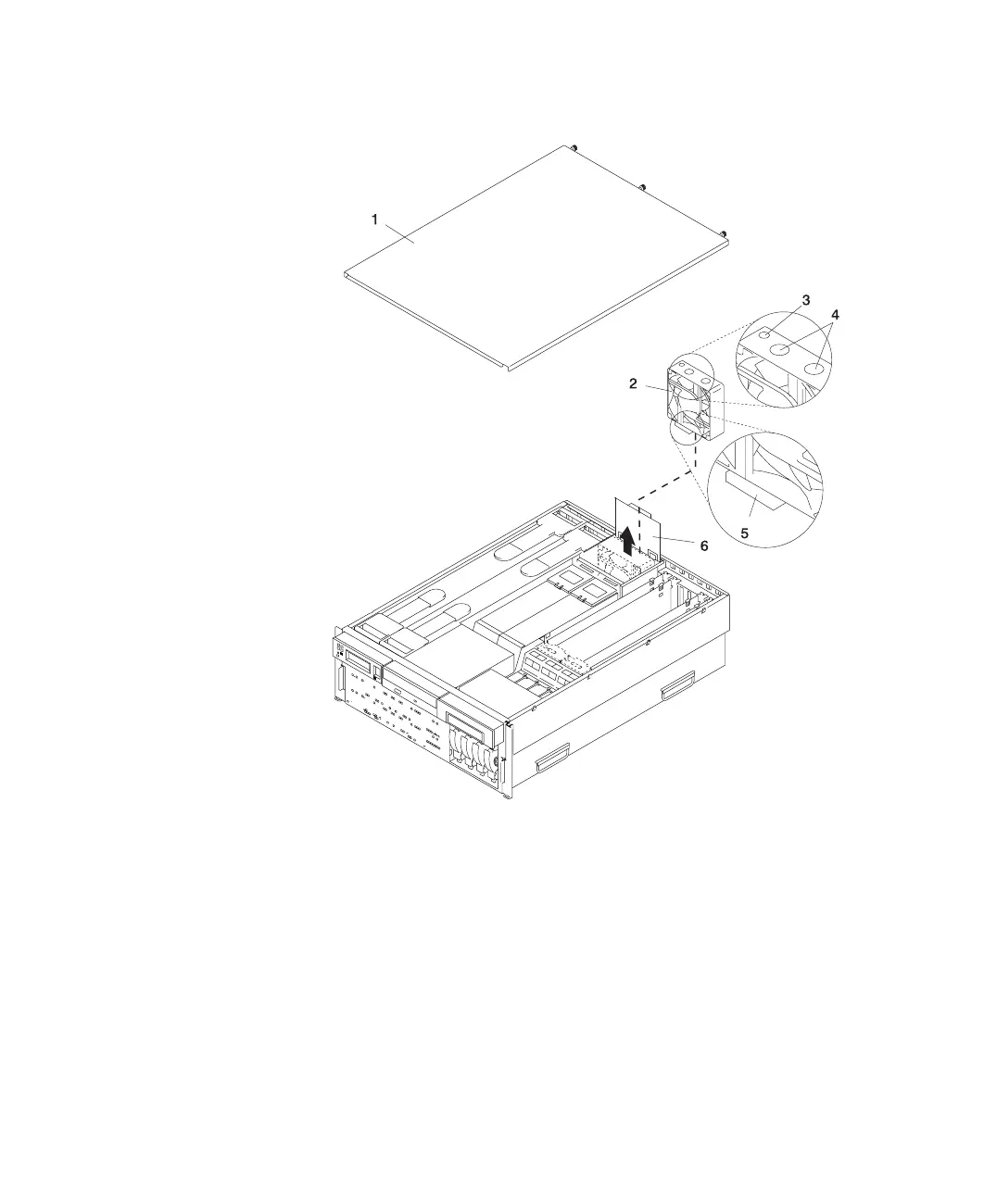

1 Service Access Cover 4 Finger Holes
2 Processor Card Cooling Fan (Fan
#1)
5 Processor Fan Bottom Connector
3 Processor Fan Amber LED 6 Processor Cooling Fans Access
Cover
Chapter 4. Installing Options
93
