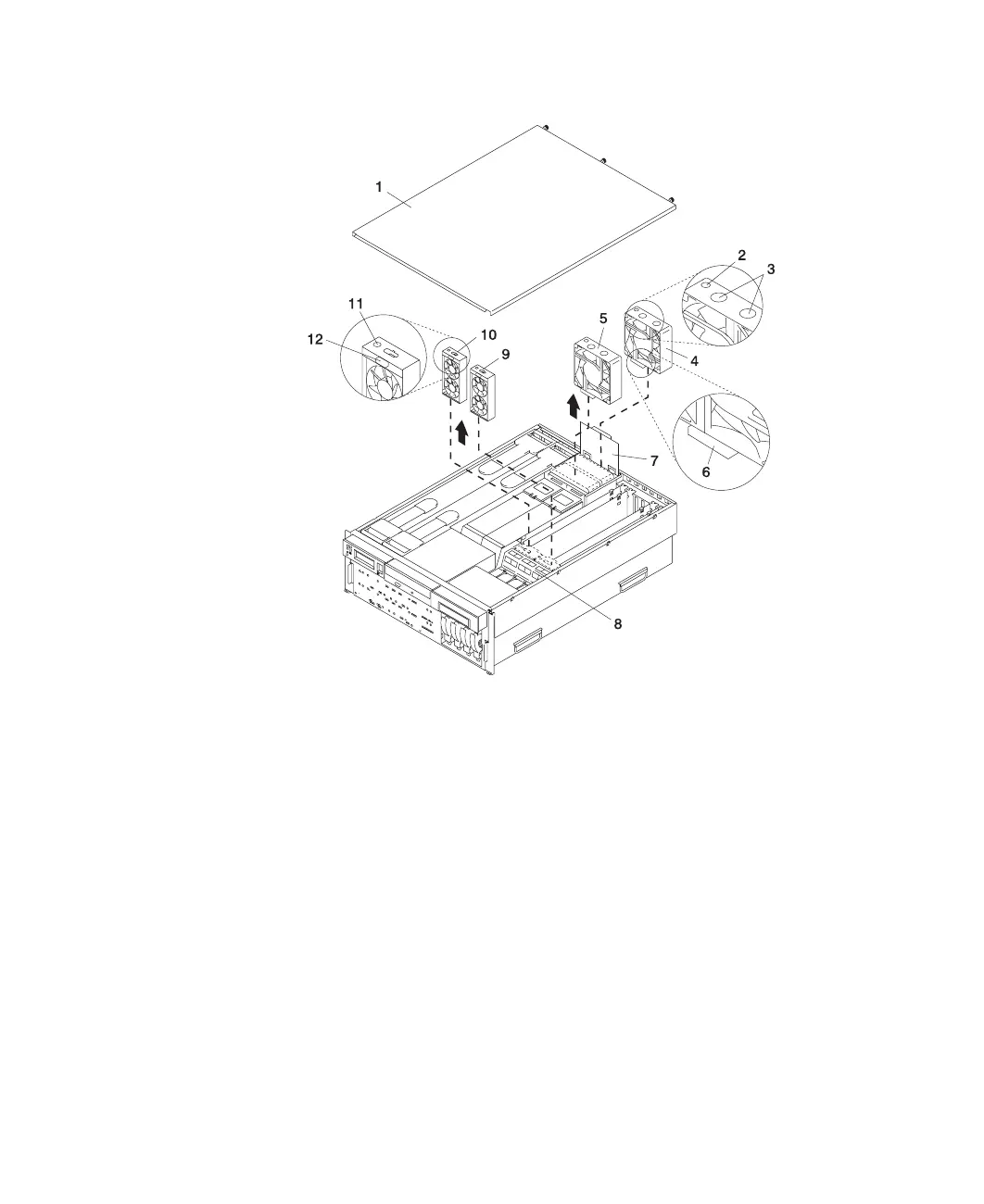

IBM pSeries 630 6C4 Installation Guide

1 Service Access Cover 7 Processor Cooling Fans Access
Cover
2 Processor Fan Amber LED 8 Adapter Cooling Fan Retaining
Bracket
3 Finger Holes 9 PCI Adapter Cooling Fan
Assembly (Fan #4)
4 Processor Card Cooling Fan (Fan
#1)
10 PCI Adapter Cooling Fan
Assembly (Fan #3)
5 Processor Card Cooling Fan (Fan
#2)
11 PCI Adapter Fan Amber LED
6 Processor Fan Bottom Connector 12 Adapter Cooling Fan Front
Connector
