IBM pSeries 630 6C4 Installation Guide
4
of 1
of 1 rating
180 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

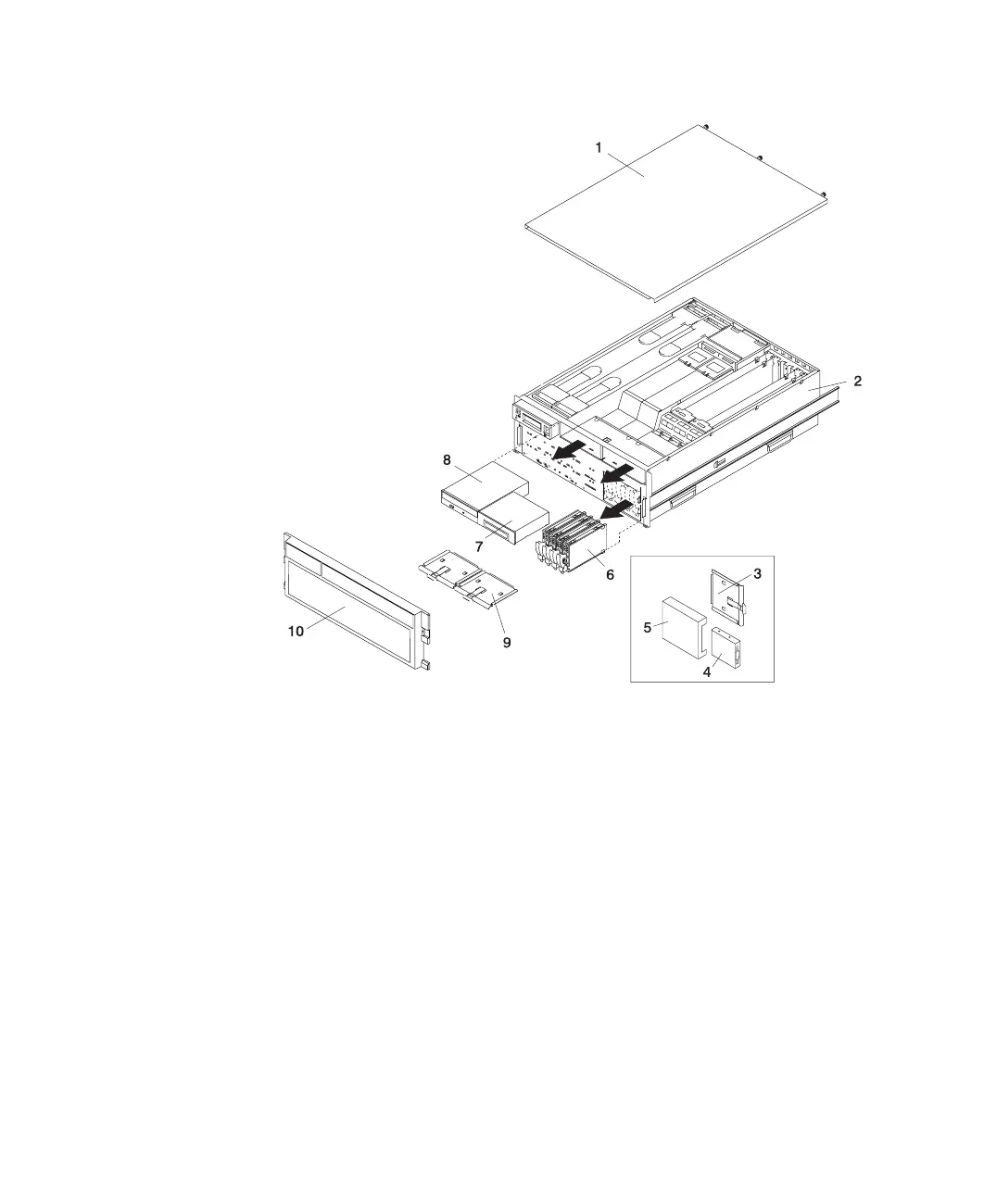

1
Service
Access
Cover
6
Disk
Drive
(4
Pack)
2
Model
6E4
7
Optional
Media
Device
(for
example:
T
ape
Drive,
DVD,
CD-ROM,
Diskette
Drive)
3
Diskette
Drive
Carrier
T
ray
(Media
Carrier)
8
IDE
CD-ROM
4
Diskette
Drive
(Optional)
9
Media
Carrier
T
rays
5
Diskette
Drive
Cage
10
Front
Bezel
Chapter
4.
Installing
Options
101
116
118
Table of Contents
Default Chapter
5
Table of Contents
5
Rack Safety Instructions
9
Safety Notices
9
Electrical Safety
10
Laser Safety Information
11
Laser Compliance
11
Data Integrity and Verification
13
About this Book
15
Iso 9000
15
Online Publications
15
Related Publications
15
Ergonomic Information
16
Trademarks
16
Chapter 1. Getting Started
17
Documentation Overview
19
Configuring Online Documentation
21
Viewing the Online Documentation from the Documentation CD
21
Installing the Online Documentation on a System
21
Installing the Online Documentation on a Documentation Server
21
Chapter 2. Setting up the System
23
Step 1. Check Your Inventory
23
Pseries 630 Model 6C4 and Model 6E4
23
Eserver Pseries 630 Model 6C4 and Model 6E4
24
Model 6C4 (Rack Mount) Only
25
Step 2. Need Help
26
Step 3. Read the Safety Notices
26
Step 4. Are You Installing a Model 6C4 (Rack Mount) or a Model 6E4 (Deskside)
27
Step 5. Read the Rack Safety Instructions
28
Rack Safety Instructions
28
Step 6. Attach the Mounting Hardware to the Rack Enclosure
29
Step 7. Install the Model 6C4 into the Rack Enclosure
38
Step 8: Install the Cable Management Arm
40
Step 9. Are All of the Internal Options Installed
41
Step 10. Positioning the Model 6E4 and Display
41
Step 11. Check Your Display or Console Type
42
Step 12. Are You Connecting to an Hardware Management Console (HMC)
43
Step 13. Attach the Display Cable Toroid
44
Step 14. Connect the Graphics Display
45
Step 15. Connect the Keyboard and Mouse (When Using a Graphics Display)
46
Step 16. Connect the Serial and Parallel Devices
47
Step 17. Connect the Adapter Cables
49
Step 18: Connect the First External SCSI Device
50
Step 19: Connect any Additional External SCSI Devices
51
Step 20. Are You Using the Rack Indicator Feature
52
Step 21: Are You Using an Ethernet Connection
53
Step 22: Connect the Power Cables to the System
54
Step 23: Attaching Cables to the Model 6C4 Cable Management Arm
55
Step 24. Connect the Power Cables to Electrical Outlets
56
Step 25. Your System Unit Is Now Set up
56
Step 26: Start Your System
57
Step 27. Accessing Documentation for Your New System
58
Hardware Documentation
58
Operating System Documentation
58
Step 28: Run System Verification
58
Chapter 3. Verifying the Hardware Operation
59
Running System Verification When Not Connected to an Hardware Management Console (HMC)
59
Step 1. Considerations before Running this Procedure
59
Step 2. Loading the Diagnostics
60
Step 3. Running the Verification Procedure
61
Step 4. Performing Additional System Verification
61
Step 5. Stopping the Diagnostics
61
Running System Verification When Connected to an HMC
62
Step 1. Running Online Diagnostics in Service Mode
62
Step 2. Running the Verification Procedure
63
Step 3. Performing Additional System Verification
63
Step 4. Stopping the Diagnostics
63
Chapter 4. Installing Options for the Model 6C4 and Model 6E4
65
Safety Considerations
65
Handling Static-Sensitive Devices
66
Options and Task List
67
Stopping the System
68
Starting the System
68
Placing the Model 6C4 into the Service Position
69
Returning the Model 6C4 to the Operating Position
70
Covers
71
Service Access Cover Removal (Model 6C4)
71
Service Access Cover Replacement (Model 6C4)
71
Outer Side Cover Removal (Model 6E4)
72
Outer Side Cover Replacement (Model 6E4)
72
Service Access Cover Removal (Model 6E4)
73
Service Access Cover Replacement (Model 6E4)
74
Model 6E4 Back Cover Removal
74
Model 6E4 Back Cover Replacement
75
Disk Drive Access Cover Removal
75
Disk Drive Access Cover Replacement
75
Bezel Door (Model 6E4)
76
Bezel Door Removal (Model 6E4)
76
Bezel Door Replacement (Model 6E4)
76
Bezels
77
Front Bezel Removal (Model 6C4)
77
Front Bezel Replacement (Model 6C4)
78
Front Bezel Removal (Model 6E4)
79
Front Bezel Replacement (Model 6E4)
79
Install the Hardware Management Console (HMC)
80
Position the HMC and Monitor
80
Connect the Cables
80
Connect the 8-Port Adapter Cables
83
Connect the External Modem
83
Connect the LAN Cable (if Applicable)
85
Plug in the HMC Power Cable
85
Configure the Network
85
Configure Inventory Scout Services
85
Configure the Service Agent
87
PCI Adapters
89
PCI Hot-Plug Manager Access
89
Non-Hot-Pluggable PCI Adapter Removal
91
Adding or Replacing a Non-Hot-Pluggable PCI Adapter
94
Hot-Pluggable PCI Adapter Removal
96
Replacing a Hot-Pluggable PCI Adapter
100
Installing a Hot-Pluggable PCI Adapter
105
Fans
108
Removing a Processor Fan in a Non-Hot-Swap Environment
108
Replacing a Processor Fan in a Non-Hot-Swap Environment
110
Hot-Swap Fan Assembly Removal
111
Hot-Swap Fan Assembly Replacement
114
Media Drives (Diskette, CD-ROM, Tape, or Disk Drive)
116
Media Drive Removal
116
Media Drive Replacement
119
Hot-Plug Disk Drives
120
Deconfiguring (Removing) or Configuring a Disk Drive
120
Deconfiguring (Removing)
120
Configuring (Replacing)
120
Hot-Plug Disk Drive Removal
121
Hot-Plug Disk Drive Replacement
123
Processor Card
124
Processor Card Removal
124
Adding or Replacing a Processor Card
127
Memory Dimms
129
Memory DIMM Removal
129
Memory DIMM Replacement
133
Replacing the Battery
135
Power Supplies
140
Non-Hot-Swap Power Supply Removal
140
Non-Hot-Swap Power Supply Replacement
143
Hot-Swap Power Supply Removal
144
Hot-Swap Power Supply Replacement
147
Appendix A. Communications Statements
149
Federal Communications Commission (FCC) Statement
149
European Union (EU) Statement
149
International Electrotechnical Commission (IEC) Statement
150
United Kingdom Telecommunications Safety Requirements
150
Avis de Conformité À la Réglementation D'industrie Canada
150
Industry Canada Class a Emission Compliance Statement
150
VCCI Statement
150
Electromagnetic Interference (EMI) Statement - Taiwan
151
Radio Protection for Germany
151
Appendix B. Environmental Notices
153
Product Recycling and Disposal
153
Environmental Design
153
Acoustical Noise Emissions
153
Declared Acoustical Noise Emissions
154
Appendix C. Notices
155
Appendix D. Fault and Attention Leds
157
Operator Panel Display
157
Component Leds
158
Reporting the Problem
159
Repair Action
160
Resetting the Leds
160
Appendix E. System Records
161
Identification Numbers
161
Device Records
162
Memory DIMM Configuration Record
162
Options
163
SCSI Ids and Bay Locations
164
Appendix F. General Attributes Required When Using a TTY Terminal
167
Additional Communication Attributes
168
Additional Keyboard Attributes
169
Additional Printer Attributes
170
Appendix G. Firmware Updates
171
Determining the Level of Firmware on the System
171
System Firmware Update Using a Locally Available Image
171
Index
173
