IBM pSeries 630 6C4 Installation Guide

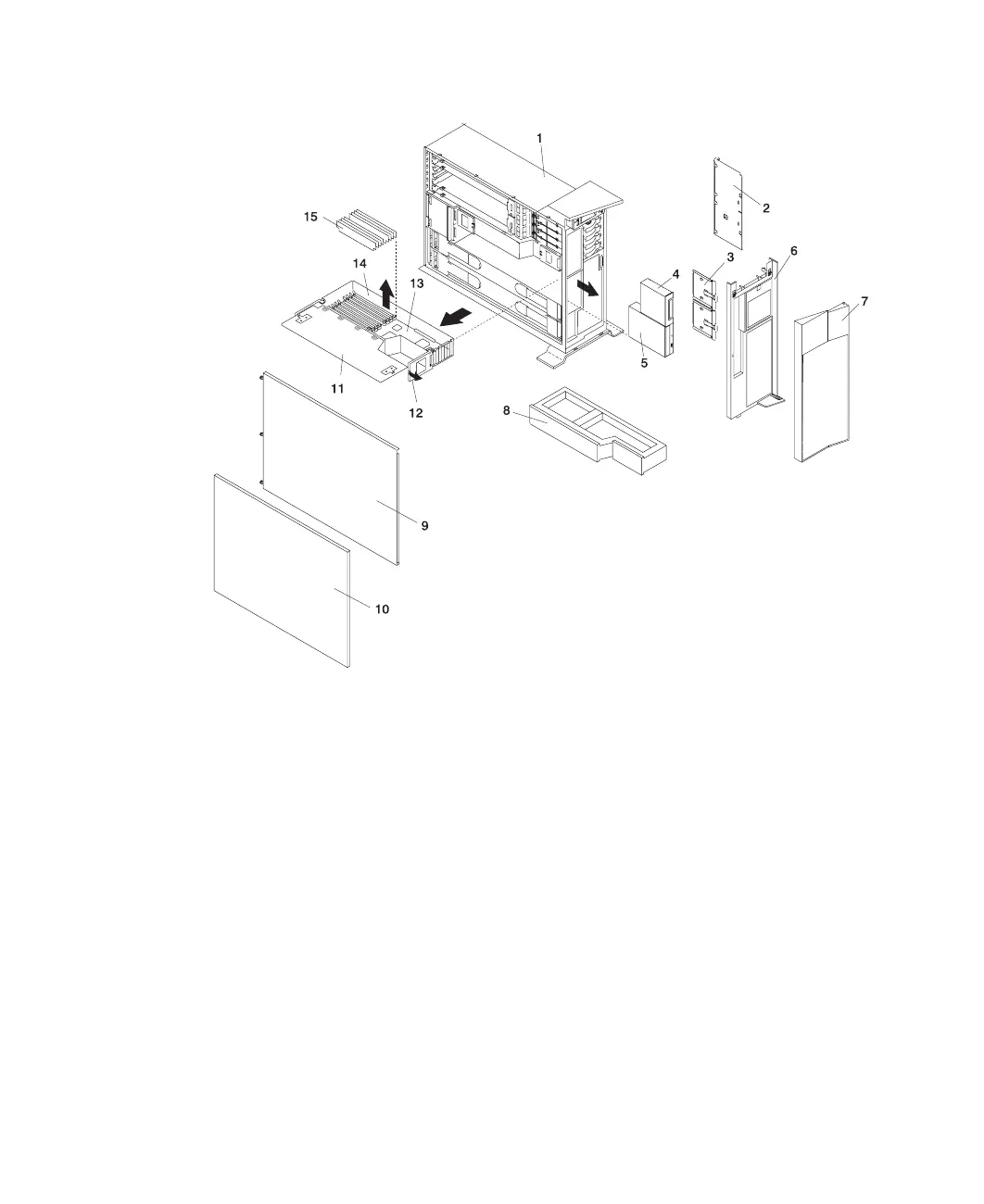

1 Model 6E4 9 Service Access Cover
2 Media Device Support Shelf 10 Outer Side Cover
3 Media Carrier Trays 11 Processor Access Cover
4 Optional Media Device (for
example: Diskette Drive or
Tape Drive)
12 Processor Assembly Lifting and
Release Handles
5 IDE CD-ROM Drive 13 Processor Card
6 Front Bezel 14 Processor Cage
7 Bezel Door 15 Memory DIMMs Release Tab
8 Processor Filler
110 Eserver pSeries 630 Model 6C4 and Model 6E4 Installation Guide

IBM pSeries 630 6C4 Specifications

General

Brand	IBM
Model	pSeries 630 6C4
Category	Server
Language	English
