5. Connect the HMC serial cable into the HMC1 connector, located on the back of your
system unit. For two HMCs, connect the redundant HMC serial cable into the HMC2

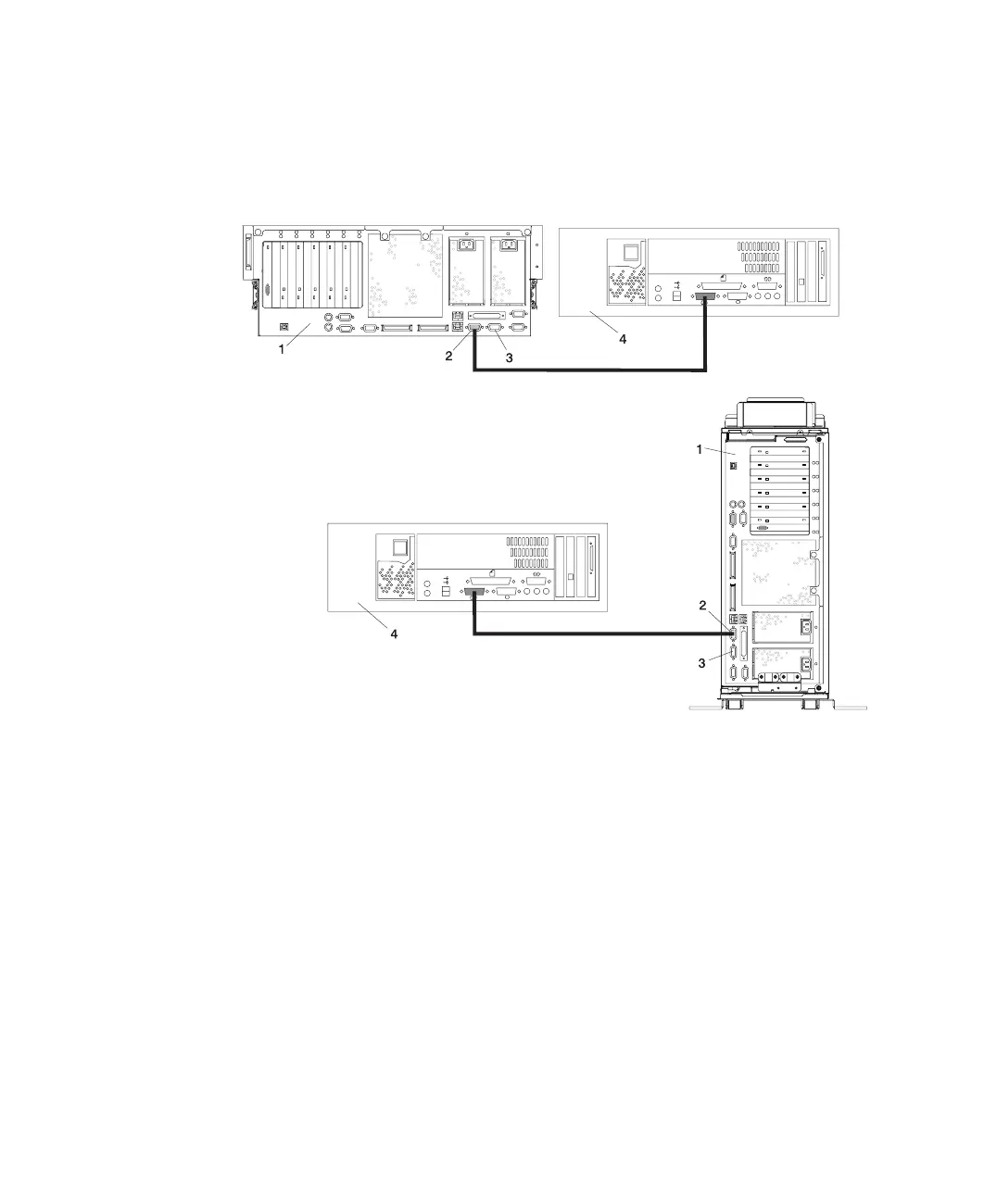

connector, located on the back of your system unit. The following illustration shows
the location of the serial ports on the back of the HMC and the HMC1 and HMC2
connectors located on back of your system unit.
1 Model 6C4 or Model 6E4
2 HMC1 Connector
3 HMC2 Connector
4 Hardware Management Console (HMC)
To order the correct-length serial cables to connect the pSeries 630 Model 6C4 and
Model 6E4 to the HMC, call your service representative
66 Eserver
pSeries 630 Model 6C4 and Model 6E4 Installation Guide
