10. Carefully grasp the adapter by its top edge, and align the adapter with the
expansion slot and its connector on the PCI riser card.
11. Press the adapter
firmly
into its connector.
Attention: When you install an adapter into the system, be sure that it is
completely and correctly seated in its connector located on the PCI
riser card. Improper insertion and seating of the adapter card might
cause damage to the PCI riser card or the adapter.

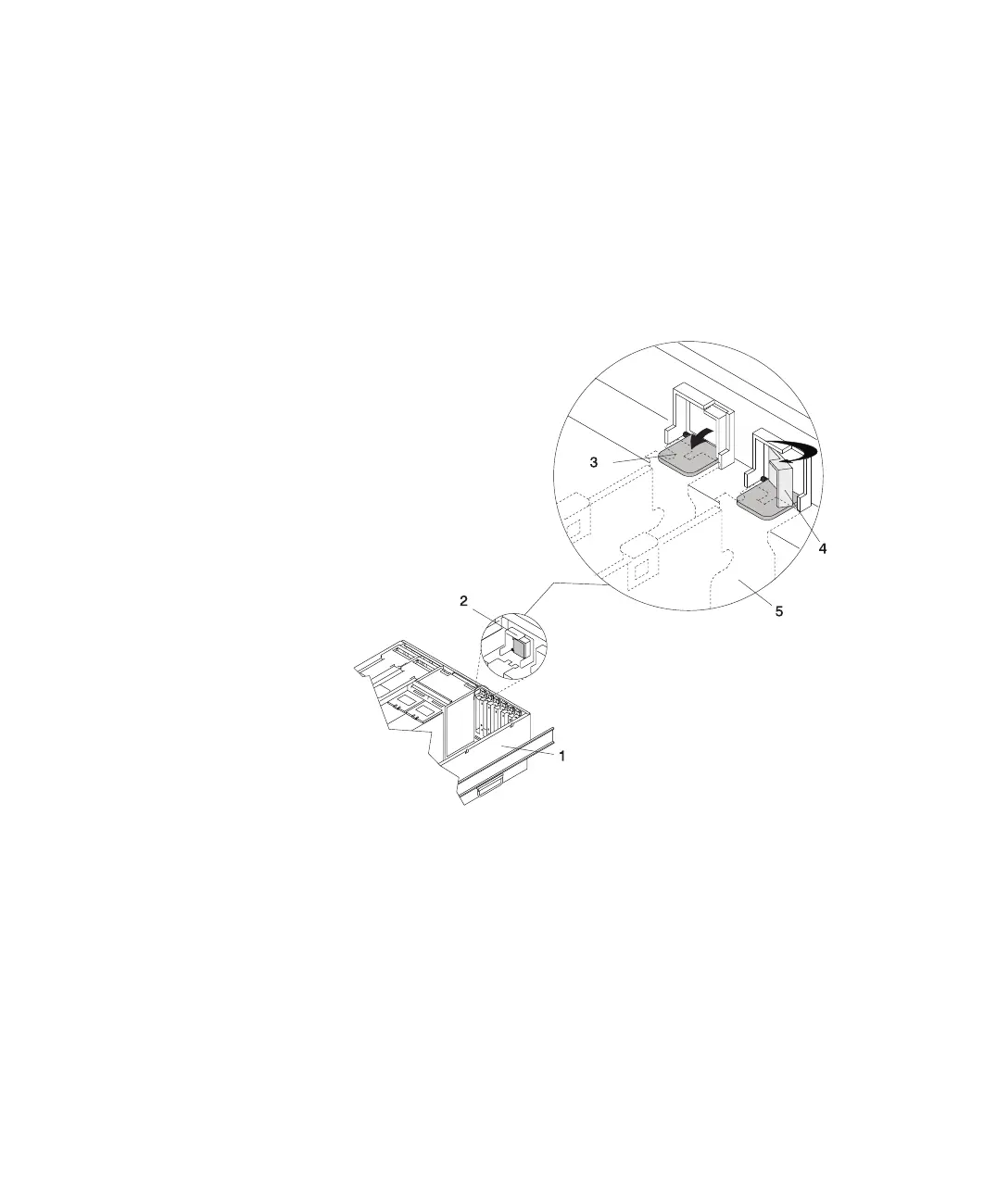

12. Rotate the adapter retainer clip clockwise until it covers the tab at approximately a
45 degree angle. See the following illustration.
1 System Unit
2 Adapter Retainer Assembly (in the unlocked position)
3 Adapter Retainer Assembly (retainer seat down and the retainer clip in the
unlocked position)
4 Adapter Retainer Assembly (retainer seat down and the retainer clip in the
locked position)
5 PCI Adapter (dotted lines) being locked into position
Chapter 4. Installing Options
79
