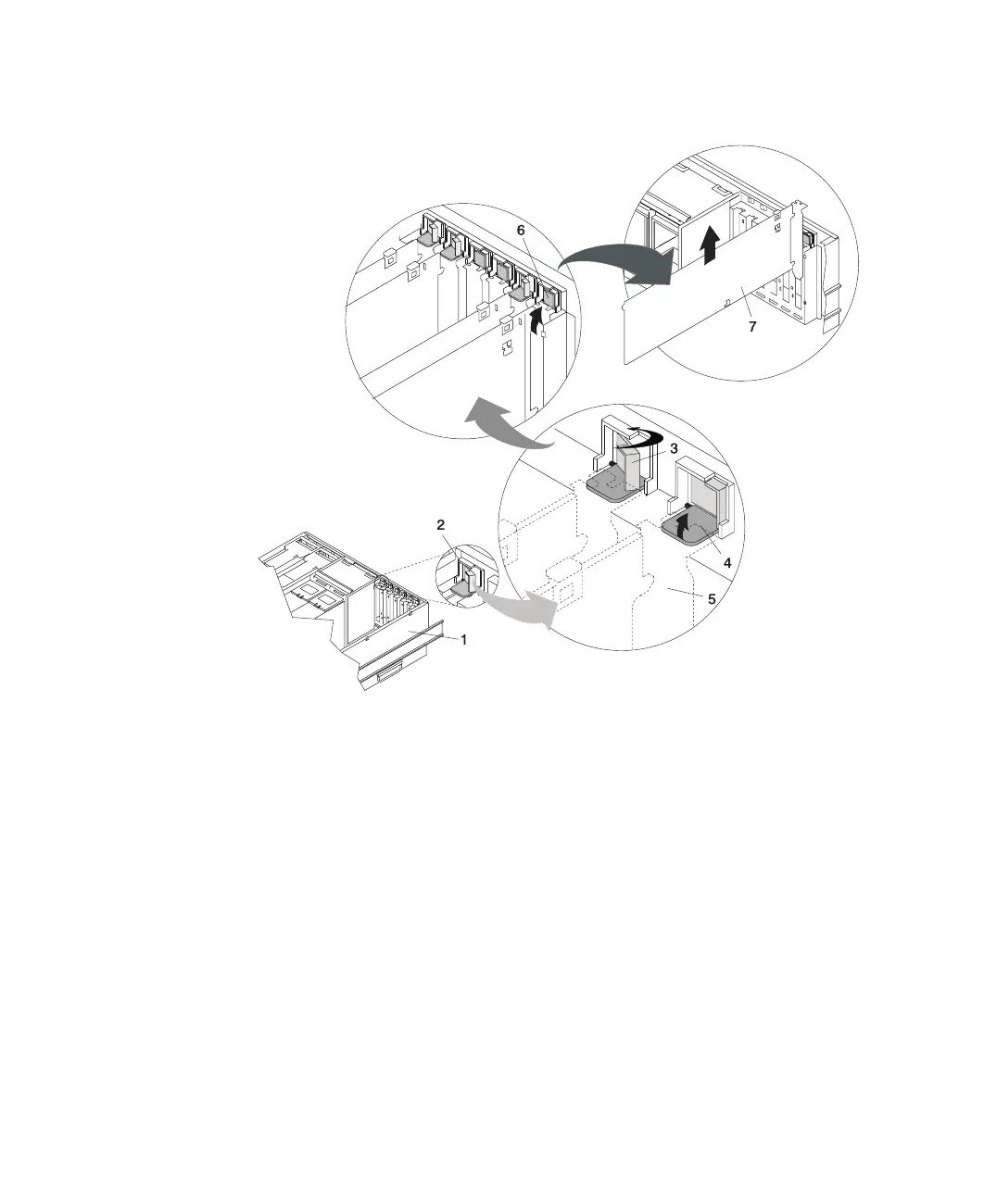

19. Turn the locking latch and lift the plastic retainer seat off the adapter.
1 System Unit 5 PCI Adapter (dotted lines) being
locked into position
2 Adapter Retainer Assembly 6 Adapter Retainer Assembly (in the
unlocked position)
3 Adapter Retainer Assembly (retainer
seat down and the retainer clip in the
locked position)
7 PCI Adapter
4 Adapter Retainer Assembly (retainer
seat down and the retainer clip in the
unlocked position)
82 Eserver pSeries 630 Model 6C4 and Model 6E4 Installation Guide
