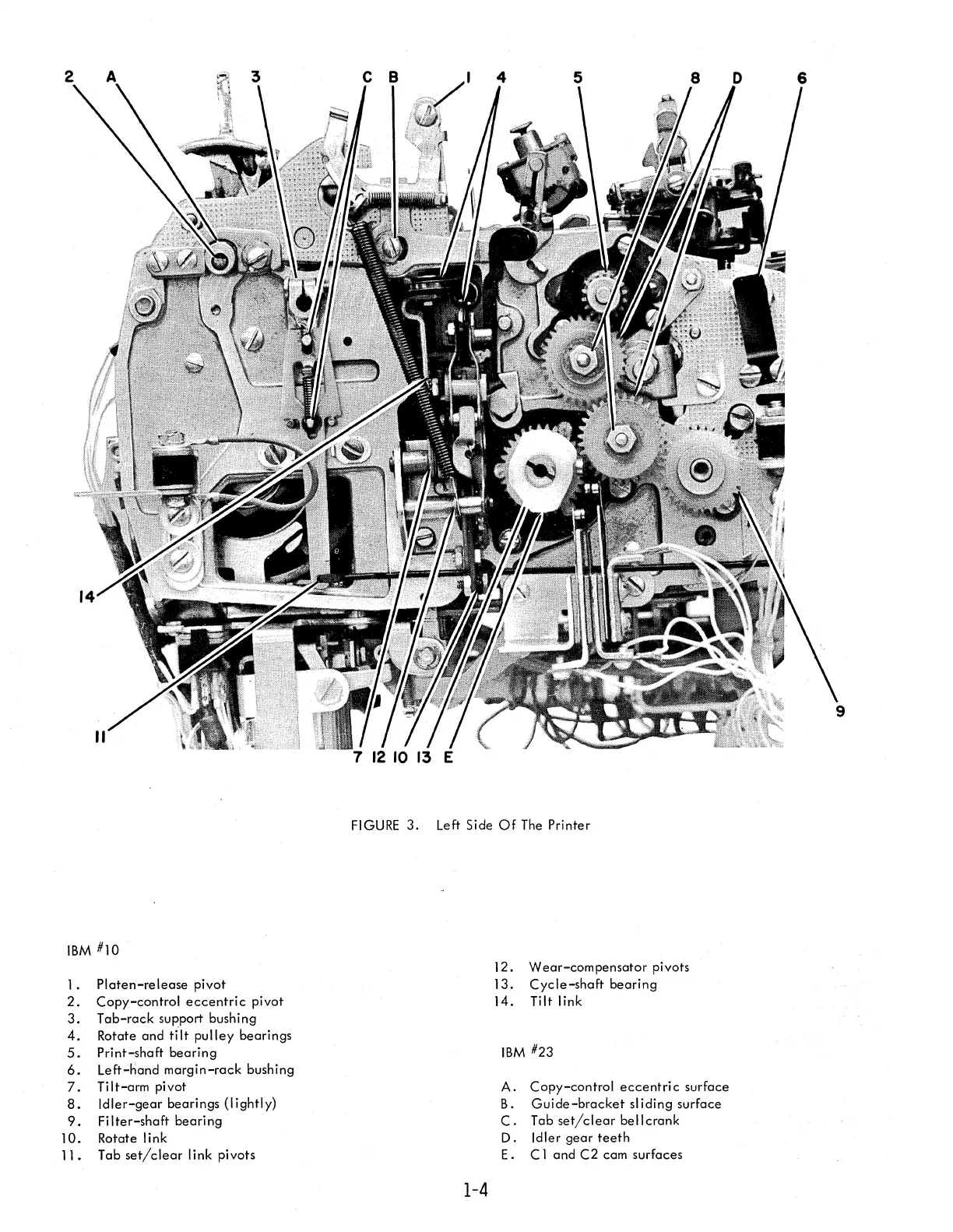

FIGURE 3. Left Side Of The Printer
IBM #10
12. Wear-compensator pivots
1. Platen-release pivot
13. Cycle-shaft bearing
2. Copy-control eccentric pivot
14. Tilt link
3. Tab-rack support bushing
4. Rotate and tflt pulley bearings
5. Print-shaft bearing
IBM #23
6. Left-hand margin-rack bushing
7. Tilt-arm pivot A. Copy-control eccentric surface
8. Idler-gear bearings (lightly)
B. Guide-bracket sliding surface
9. Fi Iter-shaft bearing
C. Tab set/clear bellcrank
10. Rotate link
D. Idler
gear teeth
11. Tab set/clear link pivots
E.
C 1 and C2 cam surfaces
1-4
