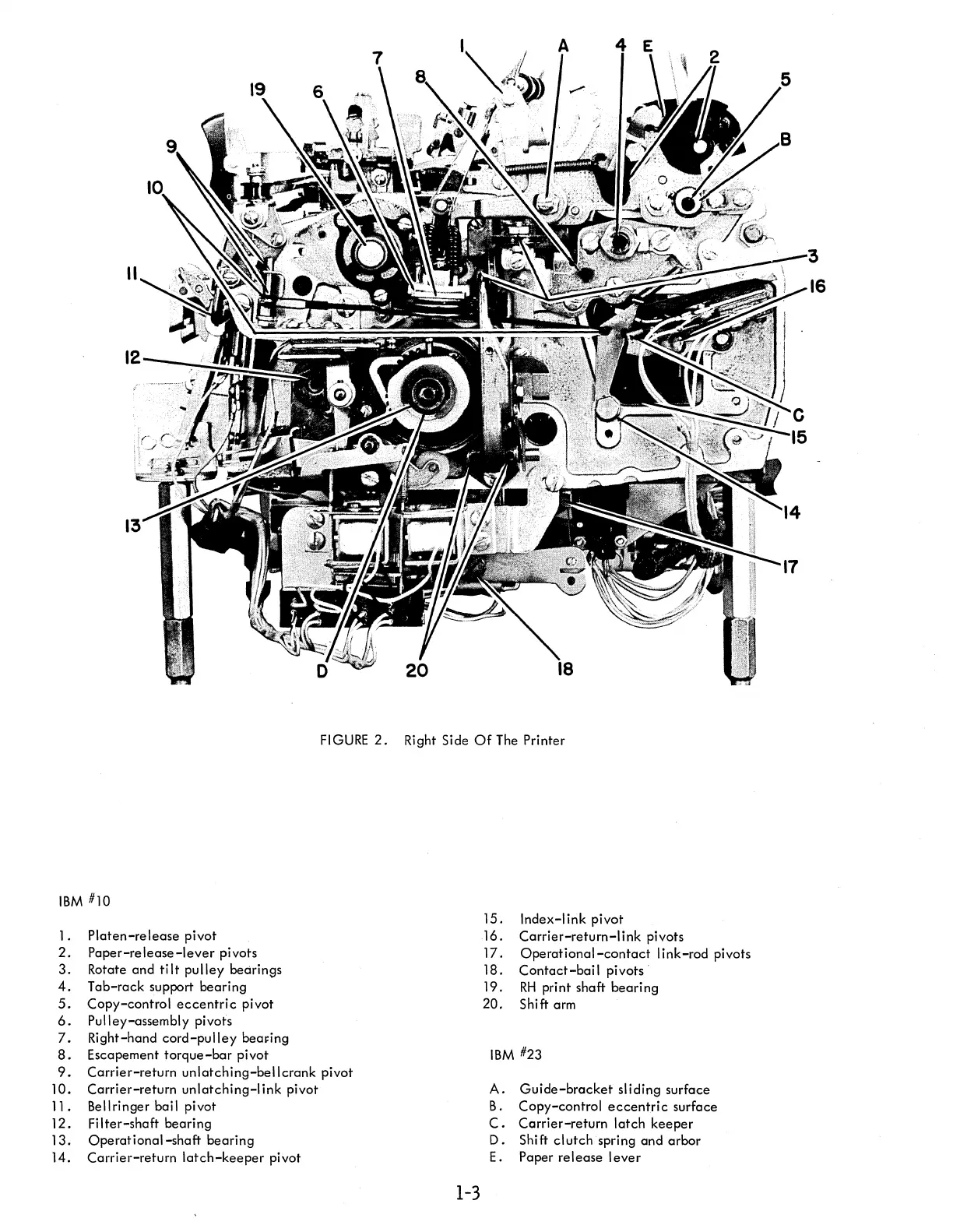

FIGURE 2. Right Side Of The Printer
IBM #10
15. Index-link pivot
1. Platen-release pivot
16. Carrier-retum-link pivots
2. Paper-release-lever pivots
17.
Operational-contact link-rod pivots
3. Rotate and tilt pulley bearings
18.
Contact-bail pivots·
4. Tab-rack support bearing
19.
RH pri nt shaft beari ng
5. Copy-control eccentric pivot
20. Shift arm
6. Pulley-assembly pivots
7. Right-hand cord-pulley bea~ing
8. Escapement torque-bar pivot
IBM #23
9. Carrier-return unlatching-bellcrank pivot
10. Carrier-return unlatching-link pivot A. Guide-bracket sliding surface
11. Bellringer bail pivot B. Copy-control eccentric surface
12. Fi Iter-shaft bearing C. Carrier-return latch keeper
13. Operational-shaft bearing D. Shift clutch spring and arbor
14. Carrier-return
latch-keeper pivot
E. Paper release lever
1-3
