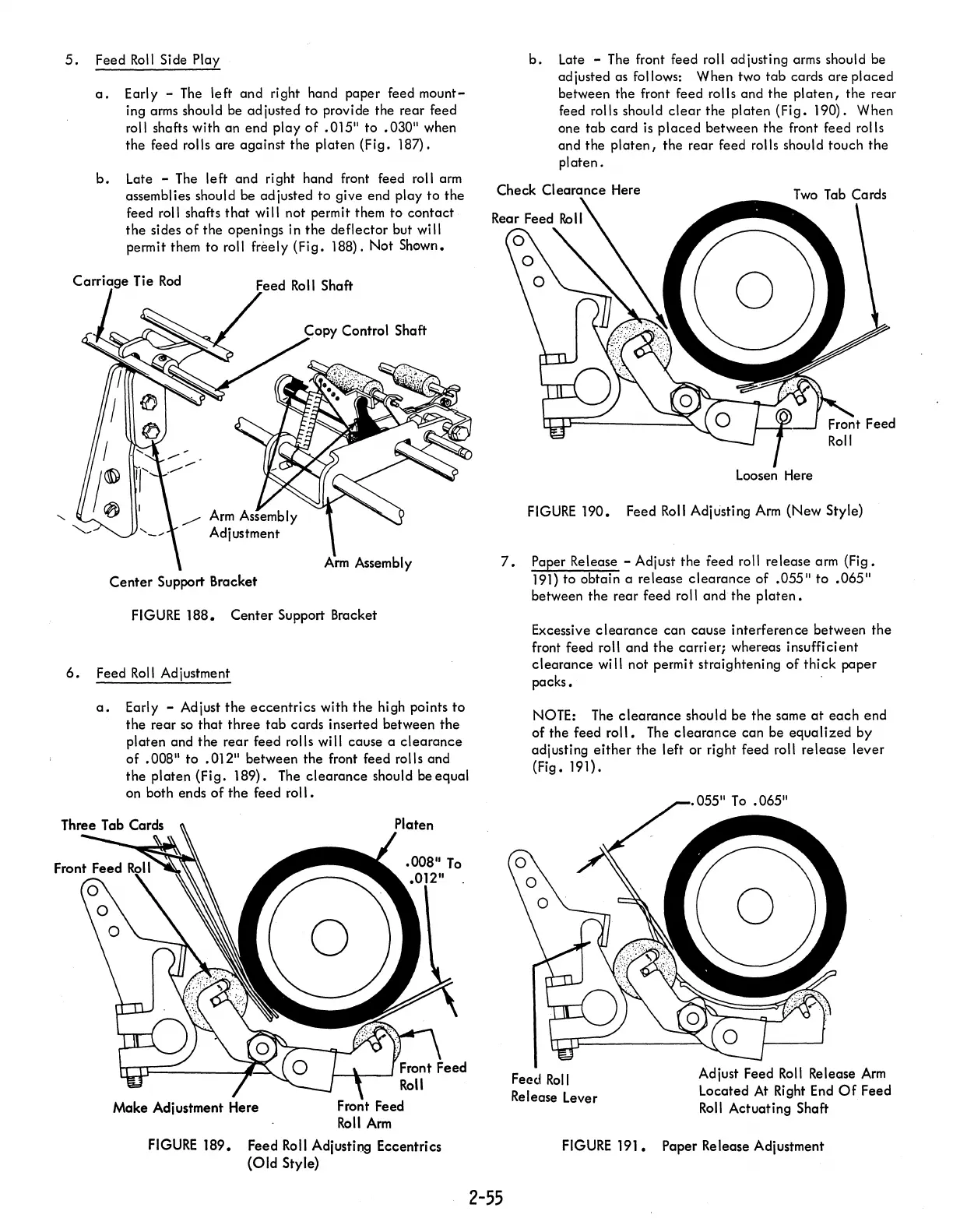

5.
Feed
Roll
Side Play
a.
Early -
The
left and right hand paper feed mount-
ing arms should be ad justed
to
provide the rear feed
roll shafts with an end play
of
.015"
to
.030" when
the feed rolls are against the platen (Fig. 187).
b.
Late - The left and right hand front feed roll arm
assemblies should
be
adjusted
to
give end play
to
the
feed roll shafts
that
will not permit them
to
contact
the sides
of
the openings in the deflector but will
permit them to roll freely (Fig. 18B).
Not
Shown.
Carriage
Tie
Rod
Center
Support Bracket
FIGURE
lBB. Center Support Bracket
6.
Feed
Roll
Adjustment
a.
Early - Adjust
the
eccentrics
with
the
high points
to
the rear
so
that
three
tab
cards inserted between
the
platen and the
rear
feed rolls wil I cause a
clearance
of .008"
to
.012" between the front feed rolls and
the platen (Fig. 189). The
clearance
should be equal
on both ends
of
the
feed
roll.
Make Adiustment Here
Front Feed
Rail
Arm
FIGURE
189.
Feed
Roll
Adjusting Eccentrics
(Old
Style)
b.
Late - The front feed roll adjusting arms should be
adjusted as follows: When two
tab
cards
are
placed
between the front feed rolls and the
platen,
the rear
feed rolls should
clear
the platen (Fig. 190). When
one tab card
is
placed
between the front feed rolls
and the
platen,
the
rear
feed rolls should touch the
platen.
Check
Clearance
Here
Loosen Here
FIGURE
190.
Feed Roll Adjusting
Arm
(New Style)
7.
Paper Release - Adjust the feed roll release arm (Fig.
191)
to
obtain a release
clearance
of
.055"
to
.065"
between the rear feed roll
and
the
platen.
2-55
Excessive
clearance
can cause interference between the
front feed roll and
the
carrier; whereas insufficient
clearance
will not permit straightening
of
thick paper
packs. .
NOTE: The
clearance
should be the same
at
each
end
of the feed
roll.
The
clearance
can be
equalized
by
adjusting
either
the
left or right feed roll release lever
(Fig. 191).
Fecd
Roll
Release Lever
Adjust Feed
Roll
Release
Arm
Located
At
Right
End
Of
Feed
Roll
Actuating Shaft
FIGURE
191.
Paper Release Adjustment
To Next Page
