For more information about the power supply indicators, see “Storwize V7000
2076-92F expansion enclosure LEDs and indicators” on page 131.
Removing the fascia: 2076-92F
To perform service tasks, you can remove each component of the fascia from the
front of a 2076-92F expansion enclosure.
About this task
The expansion enclosure has a 4U front fascia that covers the display panel and a
1U fascia that covers the power supply units (PSUs). As Figure 75 on page 83
shows, the fascias are independent; you can remove or replace one without having
to remove or replace the other.

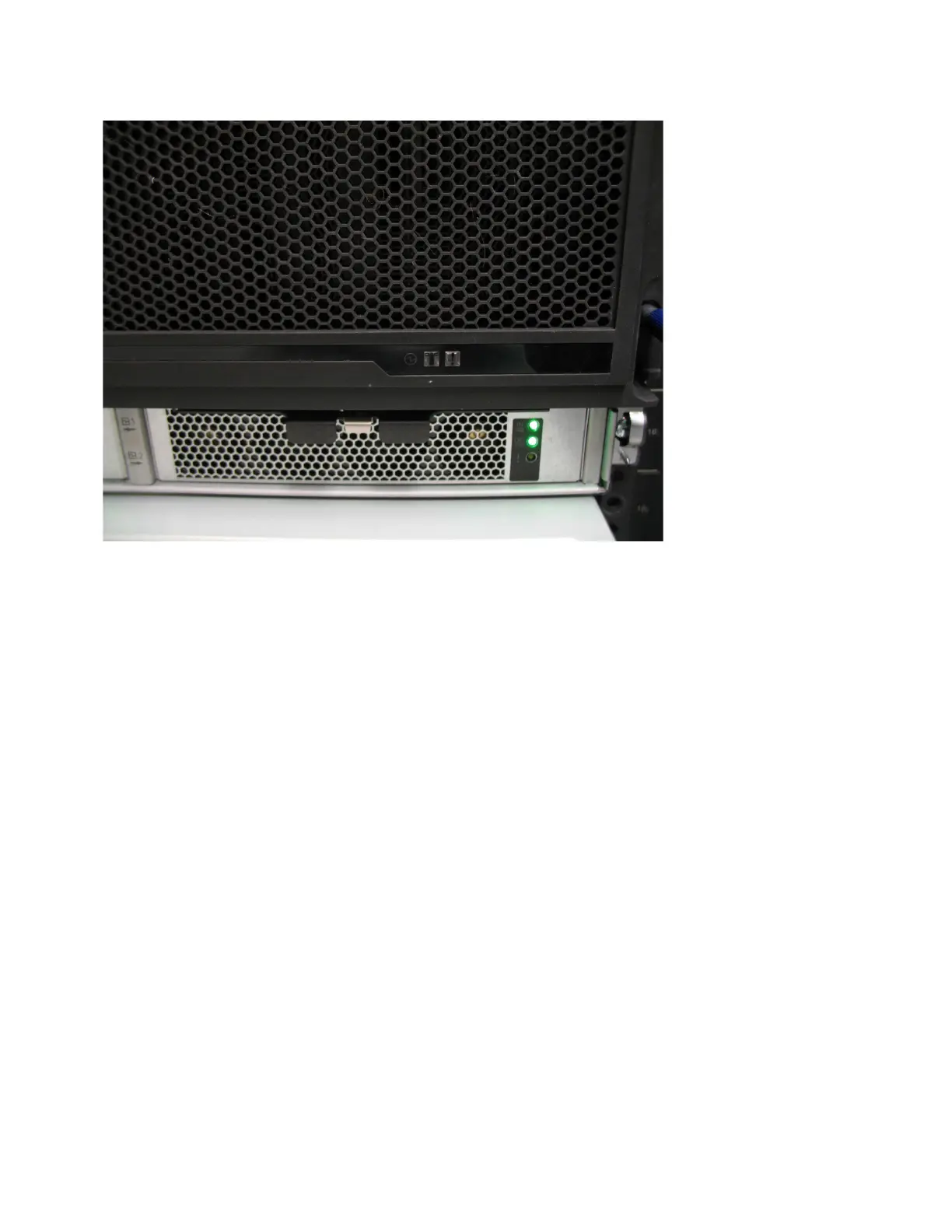

Figure 74. Power supply indicators
82 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
